Square D™

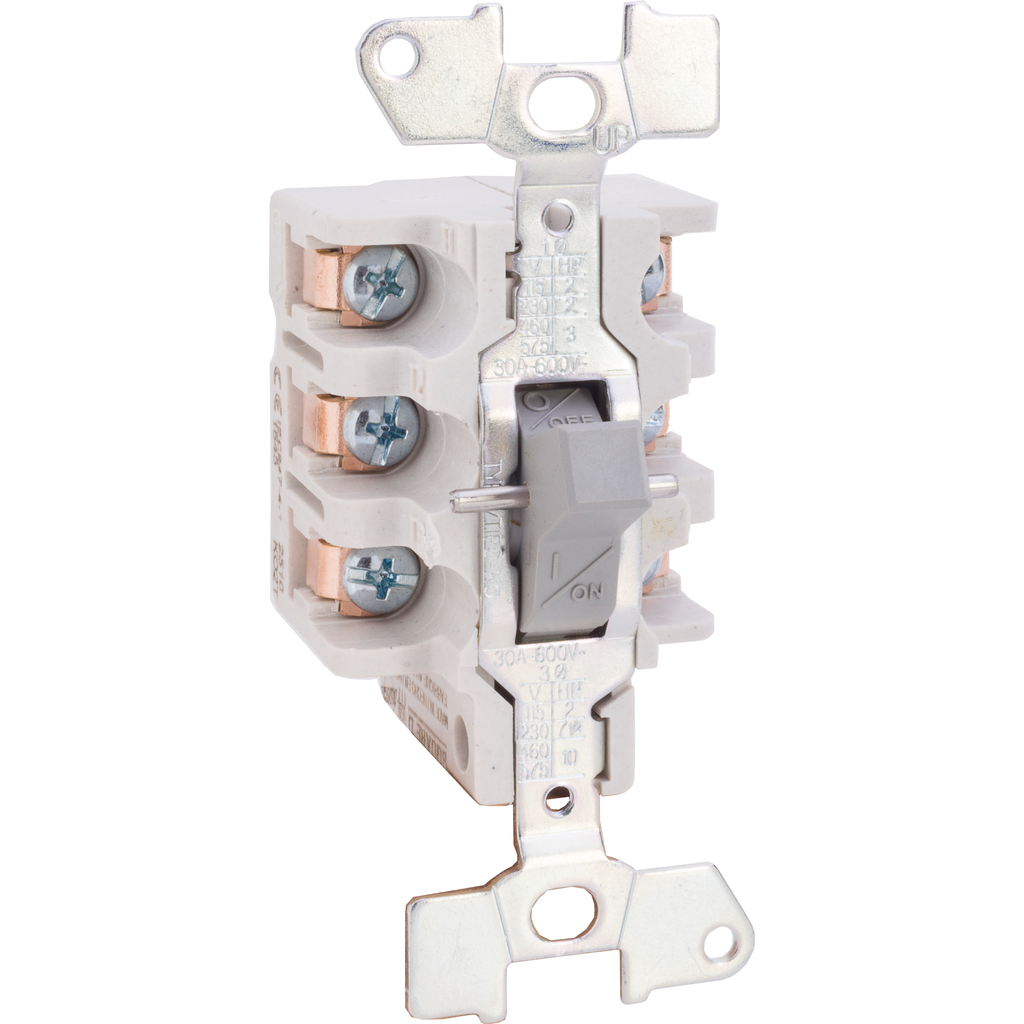

Square D™ 2510KO1T MANUAL SWITCH 600VAC K
Custom_Product_Images_Illustration
Square D™
Square D™ 2510KO1T MANUAL SWITCH 600VAC K
SKUPDW~6429225
MFGR #2510KO1T
Your Cost: $70.11/ea
Square D,MANUAL SWITCH 600VAC K+OPTIONS,1-Phase,2HP@115/230VAC - 3HP@460/575VAC,2P,30A,600VAC/230VDC,K,Non-Reversing Manual Switch,Open,Provides manual ON/OFF control of single or three phase AC motors where overload protection is not required or provided separately,Screw Clamp,UL Component Recognized - CSA Certified - CE Marked,not rated (open device)
Square D,MANUAL SWITCH 600VAC K+OPTIONS,1-Phase,2HP@115/230VAC - 3HP@460/575VAC,2P,30A,600VAC/230VDC,K,Non-Reversing Manual Switch,Open,Provides manual ON/OFF control of single or three phase AC motors where overload protection is not required or provided separately,Screw Clamp,UL Component Recognized - CSA Certified - CE Marked,not rated (open device)
Action Non-Reversing Actuator Toggle Application PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY ARRA Compliant N Buy American Compliant N Catalog Number 2510KO1T Connection Screw Clamp Country of Origin MX Dimensions 1.69 in W x 2.34 in D x 4.13 in H Environmental Conditions Open EU RoHS Indicator N Gross Weight Per Pack 0.5000 lb Harmonization Tariff Schedule Code 8536504000 Item Group 21102 Number Of Poles 2 Returnable Y Series 2510 Size 1.69 IN,2.34 IN,4.13 IN Standard UL COMPONENT RECOGNIZED - CSA CERTIFIED - CE MARKED Sub Brand K Type Type K UNSPSC 39121521 UPC 11 785901014775 UPC 12 785901014775 Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 30 A Power Rating 2 hp at 115/230 VAC/3 hp at 460/575 VAC Voltage Rating 600 VAC/230 VDC PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY NO INDICATOR Suitable for use with 3-ph AC motors rated up to 20 hp Type K reversing manual switches provide a compact means of starting, stopping and reversing AC motors where overload protection is not required or is provided separately Type K two-speed manual switches may be used with separate winding 3 or 1 ph AC motors where overload protection is not required or is provided separately Suitable for use with 3-ph squirrel cage motors and for single-phase motors which can be reversed by reconnecting motor leads Two switches are used, one to connect the motor for forward rotation and one for reverse Two switches are employed to give "on-off" control in each speed Economical on/off solution Simple design Easy to install
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Non-Reversing |
| Actuator | Toggle |
| Application | PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 2510KO1T |
| Connection | Screw Clamp |
| Country of Origin | MX |
| Dimensions | 1.69 in W x 2.34 in D x 4.13 in H |
| Environmental Conditions | Open |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 0.5000 lb |
| Harmonization Tariff Schedule Code | 8536504000 |
| Item Group | 21102 |
| Number Of Poles | 2 |
| Returnable | Y |
| Series | 2510 |
| Size | 1.69 IN,2.34 IN,4.13 IN |
| Standard | UL COMPONENT RECOGNIZED - CSA CERTIFIED - CE MARKED |
| Sub Brand | K |
| Type | Type K |
| UNSPSC | 39121521 |
| UPC 11 | 785901014775 |
| UPC 12 | 785901014775 |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 30 A |
| Power Rating | 2 hp at 115/230 VAC/3 hp at 460/575 VAC |
| Voltage Rating | 600 VAC/230 VDC |
| PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY |
| NO INDICATOR |
| Suitable for use with 3-ph AC motors rated up to 20 hp |
| Type K reversing manual switches provide a compact means of starting, stopping and reversing AC motors where overload protection is not required or is provided separately |
| Type K two-speed manual switches may be used with separate winding 3 or 1 ph AC motors where overload protection is not required or is provided separately |
| Suitable for use with 3-ph squirrel cage motors and for single-phase motors which can be reversed by reconnecting motor leads |
| Two switches are used, one to connect the motor for forward rotation and one for reverse |
| Two switches are employed to give "on-off" control in each speed |
| Economical on/off solution |
| Simple design |
| Easy to install |
