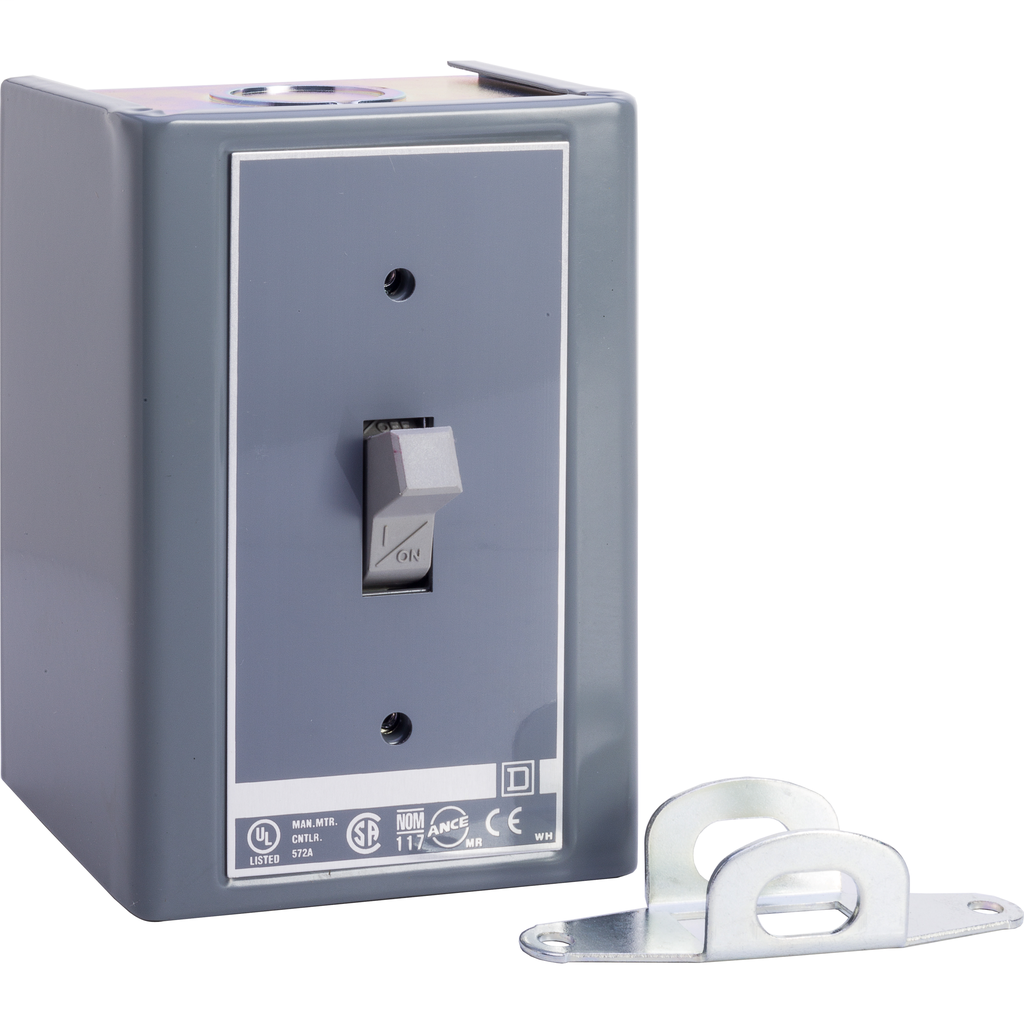

Square D™ 2510KGJ5 MANUAL SWITCH 600VAC K
AC Motor Starting Switches
830058
MFG #: 2510KGJ5
Square D™
101.73000
/ ea
Square D 2510KGJ5 MANUAL SWITCH 600VAC K+OPTIONS,1 phase,230 V DC, 600 V AC,2P,30 A,7.5 hp 460 V AC, 3 hp 230 V AC, 10 hp 575 V AC, 1.5 hp 230 V DC, 2 hp 115 V DC, 1 hp 90 V DC, 2 hp 115 V AC,CE, CSA, UL listed,K,NEMA 1 painted sheet steel oversized,Non r
- Brochure URL - 48011b5ab3bf4e207a73a3c8af8d0605ddbb2c8e.pdf(Brochure URL)
- Catalog URL - Square_D_2510KS2B_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - 6ecf2b7c2934cd37ab12e14d1303a74fa0d3bfef.pdf(Computer~Aided [CAD|BIM] Model URL)
- Spec Sheet URL - cd364cee2d1218a383eaa3835c52958327a4a329.pdf(Spec Sheet URL)
- ROHS Compliance URL - Square_D_2510KGJ5_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Tech Drawing URL - 6ecf2b7c2934cd37ab12e14d1303a74fa0d3bfef.pdf(Tech Drawing URL)
- Applications
- Features
| NON REVERSING |
| NO INDICATOR |
| Suitable for use with 3-ph AC motors rated up to 20 hp |
| Type K reversing manual switches provide a compact means of starting, stopping and reversing AC motors where overload protection is not required or is provided separately |
| Type K two-speed manual switches may be used with separate winding 3 or 1 ph AC motors where overload protection is not required or is provided separately |
| Suitable for use with 3-ph squirrel cage motors and for single-phase motors which can be reversed by reconnecting motor leads |
| Two switches are used, one to connect the motor for forward rotation and one for reverse |
| Two switches are employed to give "on-off" control in each speed |
| Economical on/off solution |
| Simple design |
| Easy to install |
