Square D™

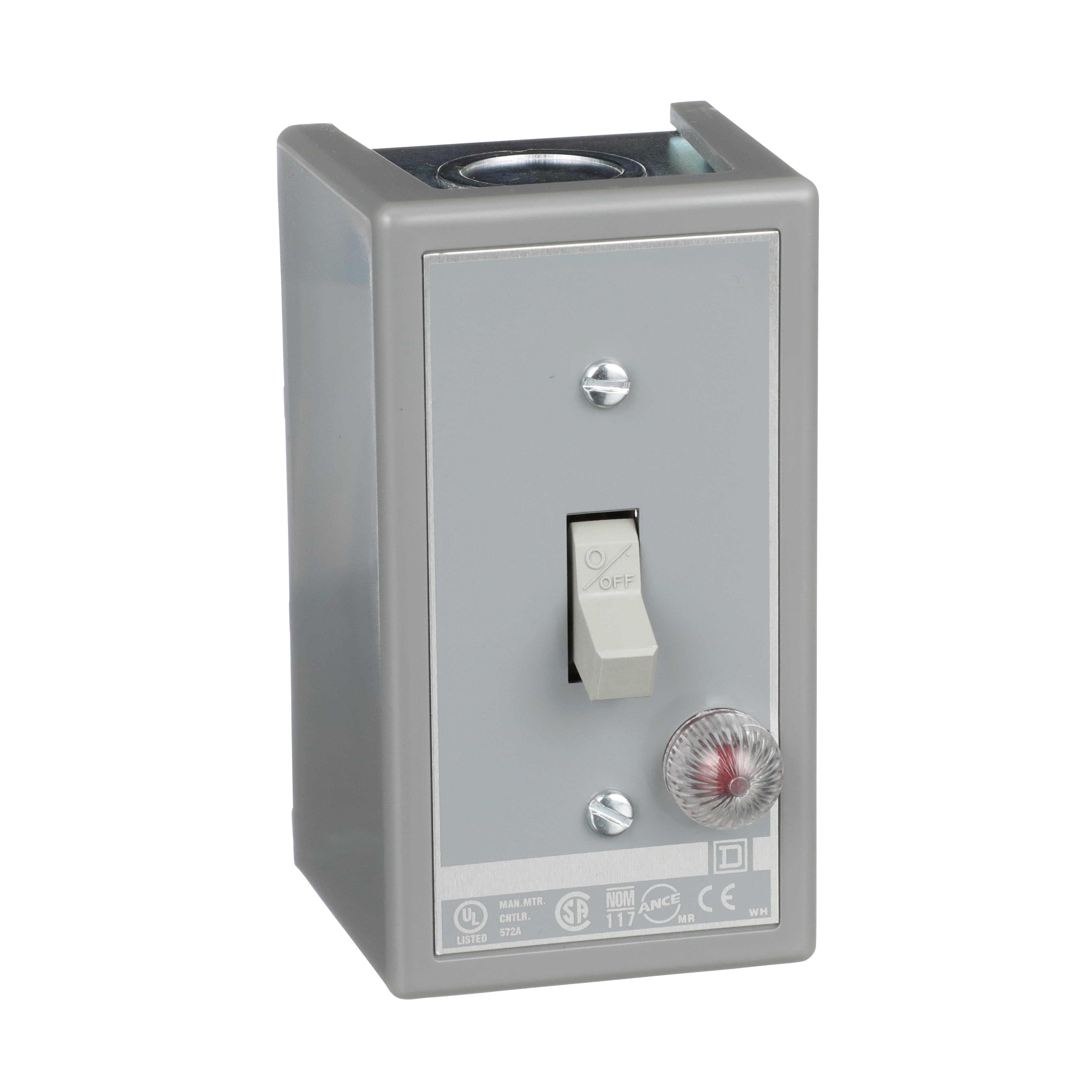

Square D™ 2510KG2CG MANUAL SWITCH 600VAC
Custom_Product_Images_Illustration
Square D™
Square D™ 2510KG2CG MANUAL SWITCH 600VAC
SKUPDW~6429207
MFGR #2510KG2CG
Your Cost: $234.76/ea
Square D,MANUAL SWITCH 600VAC K +OPTIONS,0.5 and 0.75 Inch Knockouts (top and bottom) Screw Clamp,230 V DC-600 V AC,3 phases,3-Pole,30 A,7.5 hp 230 V AC-1.5 hp 230 V DC-10 hp 575 V AC-2 hp 115 V AC-2 hp 115 V DC-10 hp 460 V AC-1 hp 90 V DC,K,NEMA 1 painted sheet steel standard size,Provides manual ON/OFF control of single or three phase AC motors where overload protection is not required or provided separately,Single Unit Manual Switch,Single Unit Metal Box - General Purpose,UL Listed - CSA Certified - CE Marked
Square D,MANUAL SWITCH 600VAC K +OPTIONS,0.5 and 0.75 Inch Knockouts (top and bottom) Screw Clamp,230 V DC-600 V AC,3 phases,3-Pole,30 A,7.5 hp 230 V AC-1.5 hp 230 V DC-10 hp 575 V AC-2 hp 115 V AC-2 hp 115 V DC-10 hp 460 V AC-1 hp 90 V DC,K,NEMA 1 painted sheet steel standard size,Provides manual ON/OFF control of single or three phase AC motors where overload protection is not required or provided separately,Single Unit Manual Switch,Single Unit Metal Box - General Purpose,UL Listed - CSA Certified - CE Marked
Action Non-Reversing Actuator Toggle Application PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY ARRA Compliant C Buy American Compliant C Catalog Number 2510KG2CG Connection Screw Clamp Country of Origin MX Dimensions 2.44 in W x 2.75 in D x 4.25 in H Enclosure NEMA 1 Environmental Conditions General Purpose EU RoHS Indicator U Gross Weight Per Pack 0.8000 lb Gross Weight per Pack Metric 0.36 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Indicator Green LED Item Group 21102 Material Painted Sheet Steel Number Of Poles 3 Returnable N Series 2510 Size 2.44 IN,2.75 IN,4.25 IN Standard UL LISTED FILE E42243 CCN NLRV-CSA LR25490 CLASS 3211 05 Sub Brand K Type Type K UNSPSC 39121521 UPC 11 785901342311 UPC 12 785901342311 Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 30 A Power Rating 1 hp at 90 VDC/1.5 hp at 230 VDC/2 hp at 115 VAC/115 VDC/7.5 hp at 230 VAC/10 hp at 460 VAC/575 VAC Voltage Rating 600 VAC/230 VDC PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY GREEN INDICATOR, 440...600 V Suitable for use with 3-ph AC motors rated up to 20 hp Type K reversing manual switches provide a compact means of starting, stopping and reversing AC motors where overload protection is not required or is provided separately Type K two-speed manual switches may be used with separate winding 3 or 1 ph AC motors where overload protection is not required or is provided separately Suitable for use with 3-ph squirrel cage motors and for single-phase motors which can be reversed by reconnecting motor leads Two switches are used, one to connect the motor for forward rotation and one for reverse Two switches are employed to give "on-off" control in each speed Economical on/off solution Simple design Easy to install 1/2 and 3/4 in knockouts top and bottom screw clamp
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Non-Reversing |
| Actuator | Toggle |
| Application | PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 2510KG2CG |
| Connection | Screw Clamp |
| Country of Origin | MX |
| Dimensions | 2.44 in W x 2.75 in D x 4.25 in H |
| Enclosure | NEMA 1 |
| Environmental Conditions | General Purpose |
| EU RoHS Indicator | U |
| Gross Weight Per Pack | 0.8000 lb |
| Gross Weight per Pack Metric | 0.36 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Indicator | Green LED |
| Item Group | 21102 |
| Material | Painted Sheet Steel |
| Number Of Poles | 3 |
| Returnable | N |
| Series | 2510 |
| Size | 2.44 IN,2.75 IN,4.25 IN |
| Standard | UL LISTED FILE E42243 CCN NLRV-CSA LR25490 CLASS 3211 05 |
| Sub Brand | K |
| Type | Type K |
| UNSPSC | 39121521 |
| UPC 11 | 785901342311 |
| UPC 12 | 785901342311 |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 30 A |
| Power Rating | 1 hp at 90 VDC/1.5 hp at 230 VDC/2 hp at 115 VAC/115 VDC/7.5 hp at 230 VAC/10 hp at 460 VAC/575 VAC |
| Voltage Rating | 600 VAC/230 VDC |
| PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY |
| GREEN INDICATOR, 440...600 V |
| Suitable for use with 3-ph AC motors rated up to 20 hp |
| Type K reversing manual switches provide a compact means of starting, stopping and reversing AC motors where overload protection is not required or is provided separately |
| Type K two-speed manual switches may be used with separate winding 3 or 1 ph AC motors where overload protection is not required or is provided separately |
| Suitable for use with 3-ph squirrel cage motors and for single-phase motors which can be reversed by reconnecting motor leads |
| Two switches are used, one to connect the motor for forward rotation and one for reverse |
| Two switches are employed to give "on-off" control in each speed |
| Economical on/off solution |
| Simple design |
| Easy to install |
| 1/2 and 3/4 in knockouts top and bottom screw clamp |
