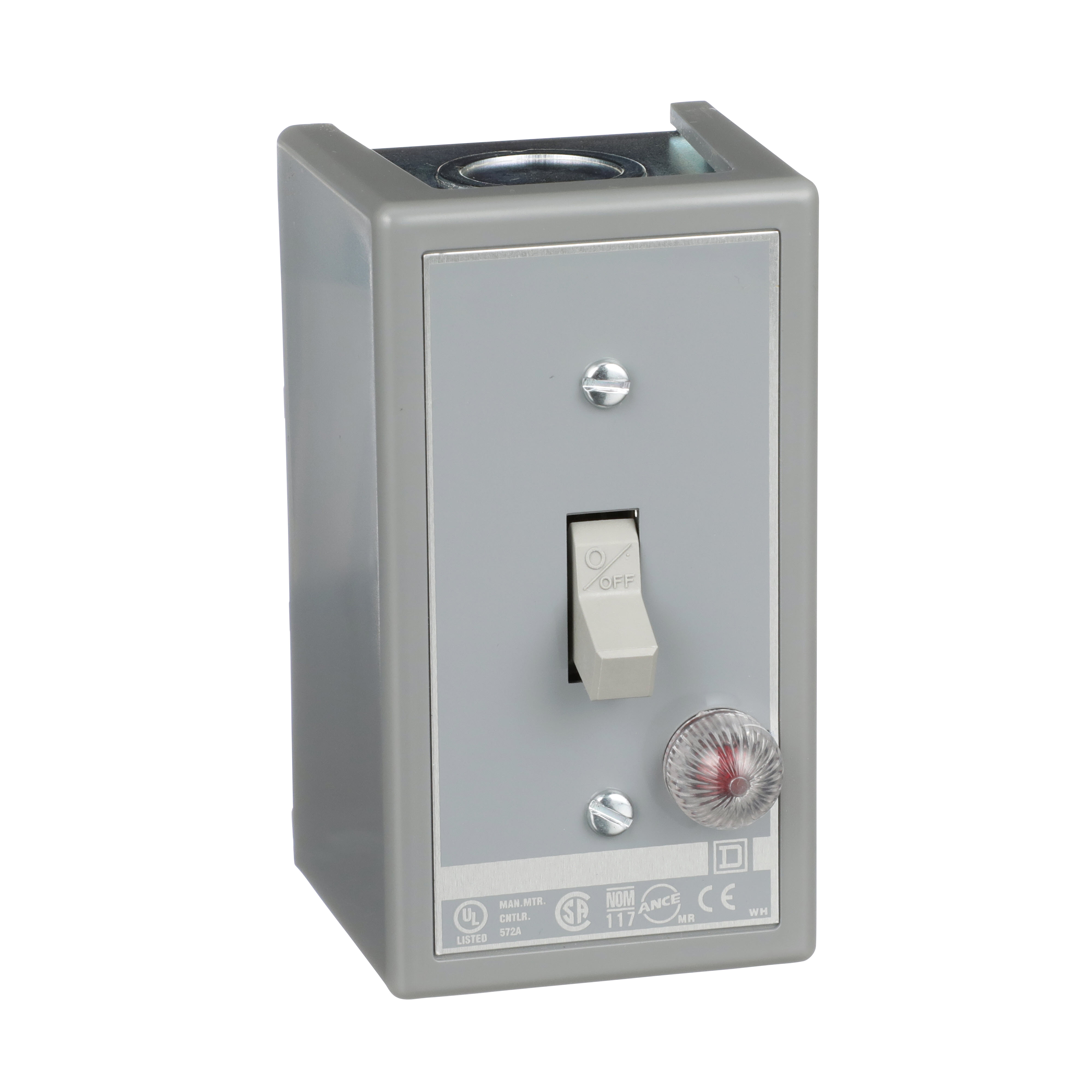

Square D™ 2510KG1AG MANUAL SWITCH 600VAC
AC Motor Starting Switches
PDW~6429202
MFG #: 2510KG1AG
Square D™
145.04000
/ ea
Square D,MANUAL SWITCH 600VAC K +OPTIONS,0.5 and 0.75 Inch Knockouts (top and bottom) Screw Clamp,1-Phase,2HP@115/230VAC - 3HP@460/575VAC,2P,30A,600VAC/230VDC,K,NEMA 1,Non-Reversing Manual Switch,Provides manual ON/OFF control of single or three phase AC motors where overload protection is not required or provided separately,Single Unit Metal Box - General Purpose,UL Listed - CSA Certified - CE Marked
- 18 Months(WEB WARRANTY URL)
- http://www.schneider-electric.us/(Seller Home Page URL)
- WEB CATALOG URL - Square_D_2510KS2B_Catalog.pdf(WEB CATALOG URL)
- WEB ROHS COMPLIANCE URL - Square_D_2510KG1AG_RoHS.pdf(WEB ROHS COMPLIANCE URL)
- WEB SPEC SHEET URL - 2510KG1AG(WEB SPEC SHEET URL)
- WEB TECH DRAWING URL - c4265acfd2ed4ef545a3f08929cc865a90f47207(WEB TECH DRAWING URL)
- Applications
- Features
| PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY |
| GREEN INDICATOR, 115 V |
| Suitable for use with 3-ph AC motors rated up to 20 hp |
| Type K reversing manual switches provide a compact means of starting, stopping and reversing AC motors where overload protection is not required or is provided separately |
| Type K two-speed manual switches may be used with separate winding 3 or 1 ph AC motors where overload protection is not required or is provided separately |
| Suitable for use with 3-ph squirrel cage motors and for single-phase motors which can be reversed by reconnecting motor leads |
| Two switches are used, one to connect the motor for forward rotation and one for reverse |
| Two switches are employed to give "on-off" control in each speed |
| Economical on/off solution |
| Simple design |
| Easy to install |
| 1/2 and 3/4 in knockouts top and bottom screw clamp |
