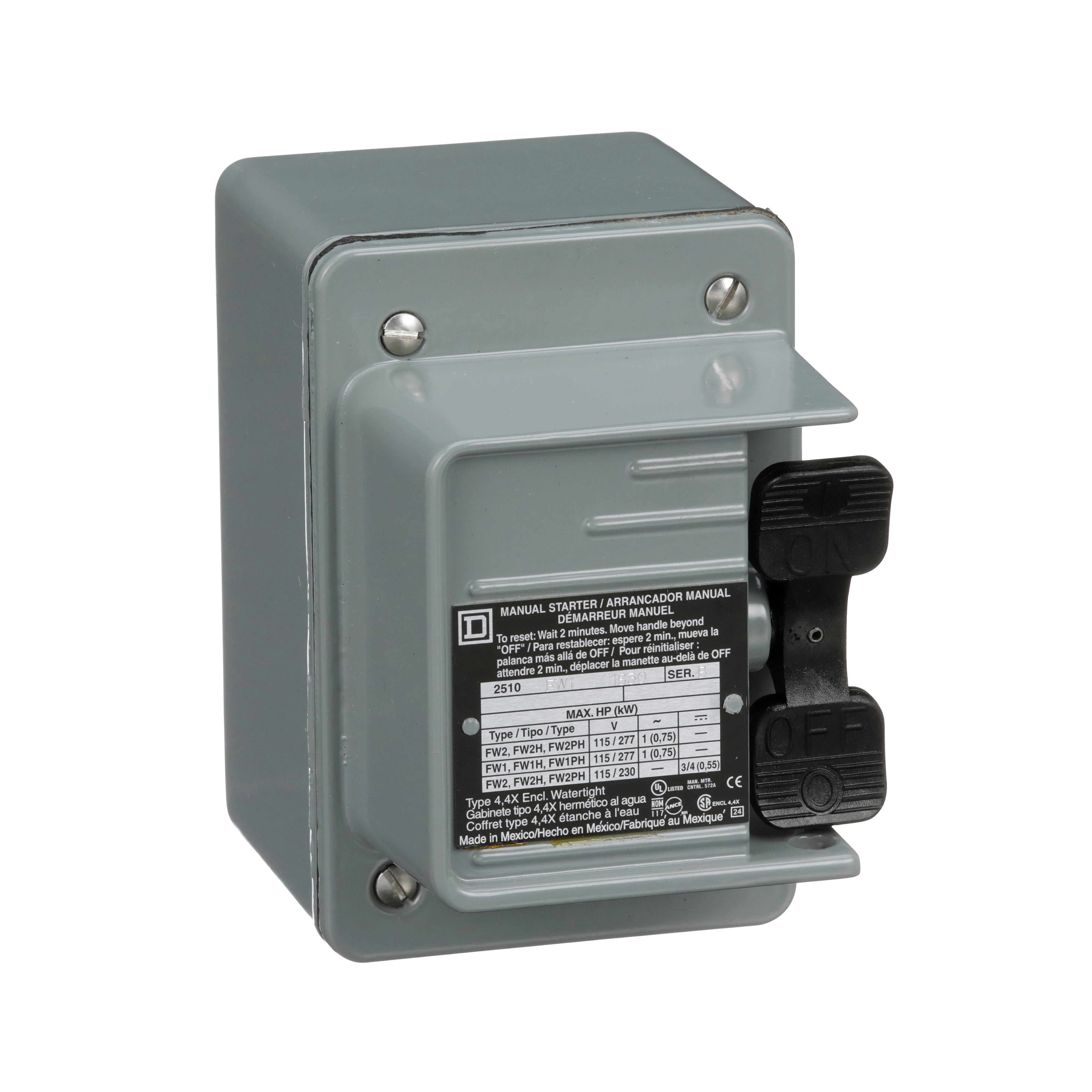

Square D™ 2510FW2H MANUAL STARTER 277VAC
SKU428791
MFGR #2510FW2H
Your Cost: $665.20/ea
Square D 2510FW2H MANUAL STARTER 277VAC,0.75 NPT (top and bottom) Screw Clamp,1-Phase,16A,1HP115/230/277VAC - 0.75HP115/230VDC,2P,600 Vac/250 Vdc,F,NEMA 4,Non-Reversing Manual Starter,Provides overload protection as well as manual ON/OFF control for small motors in a variety of industrial and commerical installations.,Single Unit Metal Box - Oil Tight and Dust Tight,Thermal - Melting Alloy,UL Listed - CSA Certified - CE Marked
Square D 2510FW2H MANUAL STARTER 277VAC,0.75 NPT (top and bottom) Screw Clamp,1-Phase,16A,1HP115/230/277VAC - 0.75HP115/230VDC,2P,600 Vac/250 Vdc,F,NEMA 4,Non-Reversing Manual Starter,Provides overload protection as well as manual ON/OFF control for small motors in a variety of industrial and commerical installations.,Single Unit Metal Box - Oil Tight and Dust Tight,Thermal - Melting Alloy,UL Listed - CSA Certified - CE Marked
Alternate Catalog Number 2510FW2H Amperage Rating 16 A Application PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 2510FW2H Connection 0.75 NPT (TOP AND BOTTOM) SCREW CLAMP Connection Type Screw Clamp Control Type LOCK-OFF Toggle Switch Country of Origin MX Depth 4.25 in Dimensions 3 in W x 4.25 in D x 4.38 in H Enclosure Type NEMA 4 EU RoHS Indicator Y Gross Weight Per Pack 2.8800 lb Gross Weight per Pack Metric 1.31 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 3.57 in Height [Metric] 9.1440 cm Item Group 21101 Length 5.35 in Length [Metric] 13.7160 cm Manufacturer Schneider Electric Material Die Cast Zinc Motor Power 0.75 hp at 115/230 VDC/1 hp at 115/277 VAC/2 hp at 230 VAC Number Of Poles 2 Operating Temperature 0 to 40 deg C Ambient Phase 1 pH Reset Type Thermal Melting Alloy Returnable N Series 2510 Size 3 IN,4.25 IN,4.38 IN Standard UL LISTED - CSA CERTIFIED - CE MARKED Stock Status NONSTOCK Sub Brand F Type Type F UNSPSC 39121521 UPC 11 78590155436 UPC 12 785901554363 Voltage Rating 600 VAC/250 VDC VAC//VDC Warranty Description Contractual Warranty:18 months Width 4.66 in Width [Metric] 11.9380 cm PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. NO INDICATOR Small size, economical Simple design Easy to install Long lasting reliability Both one-pole and two-pole versions are suitable for use with AC single phase motors rated up to 1 horsepower Two-pole starters may also be used with DC NEMA 4
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 2510FW2H |
| Amperage Rating | 16 A |
| Application | PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 2510FW2H |
| Connection | 0.75 NPT (TOP AND BOTTOM) SCREW CLAMP |
| Connection Type | Screw Clamp |
| Control Type | LOCK-OFF Toggle Switch |
| Country of Origin | MX |
| Depth | 4.25 in |
| Dimensions | 3 in W x 4.25 in D x 4.38 in H |
| Enclosure Type | NEMA 4 |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 2.8800 lb |
| Gross Weight per Pack Metric | 1.31 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 3.57 in |
| Height [Metric] | 9.1440 cm |
| Item Group | 21101 |
| Length | 5.35 in |
| Length [Metric] | 13.7160 cm |
| Manufacturer | Schneider Electric |
| Material | Die Cast Zinc |
| Motor Power | 0.75 hp at 115/230 VDC/1 hp at 115/277 VAC/2 hp at 230 VAC |
| Number Of Poles | 2 |
| Operating Temperature | 0 to 40 deg C Ambient |
| Phase | 1 pH |
| Reset Type | Thermal Melting Alloy |
| Returnable | N |
| Series | 2510 |
| Size | 3 IN,4.25 IN,4.38 IN |
| Standard | UL LISTED - CSA CERTIFIED - CE MARKED |
| Stock Status | NONSTOCK |
| Sub Brand | F |
| Type | Type F |
| UNSPSC | 39121521 |
| UPC 11 | 78590155436 |
| UPC 12 | 785901554363 |
| Voltage Rating | 600 VAC/250 VDC VAC//VDC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 4.66 in |
| Width [Metric] | 11.9380 cm |
| PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. |
| NO INDICATOR |
| Small size, economical |
| Simple design |
| Easy to install |
| Long lasting reliability |
| Both one-pole and two-pole versions are suitable for use with AC single phase motors rated up to 1 horsepower |
| Two-pole starters may also be used with DC |
| NEMA 4 |
