Square D™

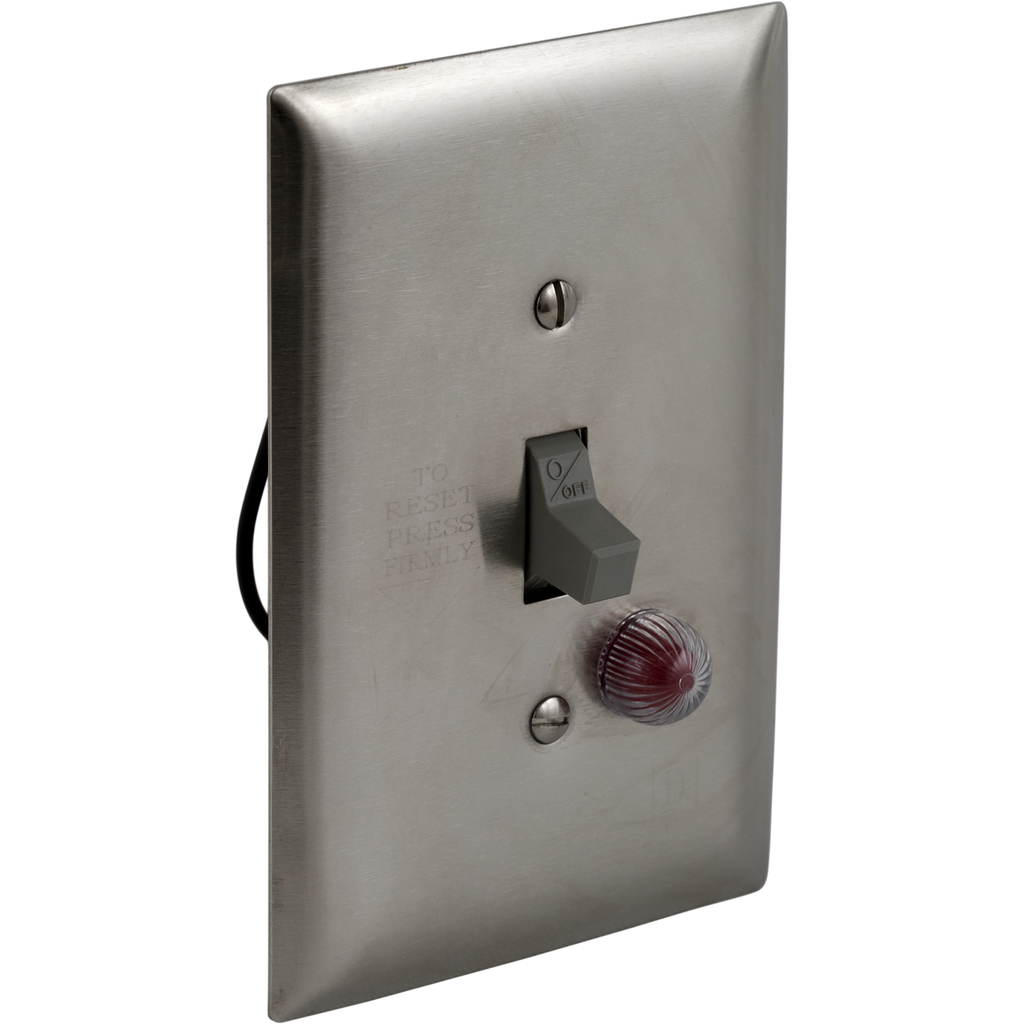

Square D™ 2510FSJ1P MANUAL STARTER 277VAC
Custom_Product_Images_Illustration
Square D™
Square D™ 2510FSJ1P MANUAL STARTER 277VAC
SKUPDW~6429152
MFGR #2510FSJ1P
Price Not Available
Square D,MANUAL STARTER 277VAC,1-Phase,16A,1HP@115/230/277VAC,1P,600 Vac/250 Vdc,F,Flush,Non-Reversing Manual Starter,Provides overload protection as well as manual ON/OFF control for small motors in a variety of industrial and commerical installations.,Screw Clamp,Single Unit Stainless Steel Flush Plate (oversized),Thermal - Melting Alloy,UL Listed - CSA Certified - CE Marked,not rated (flush plate) stainless steel oversized
Square D,MANUAL STARTER 277VAC,1-Phase,16A,1HP@115/230/277VAC,1P,600 Vac/250 Vdc,F,Flush,Non-Reversing Manual Starter,Provides overload protection as well as manual ON/OFF control for small motors in a variety of industrial and commerical installations.,Screw Clamp,Single Unit Stainless Steel Flush Plate (oversized),Thermal - Melting Alloy,UL Listed - CSA Certified - CE Marked,not rated (flush plate) stainless steel oversized
Amperage Rating 16 A Catalog Number 2510FSJ1P Connection Type Screw Clamp Control Type Toggle Switch Country of Origin MX Dimensions 3.5 in W x 2.19 in D x 5.25 in H Gross Weight Per Pack 0.4500 lb Item Group 21101 Motor Power 1 hp at 115/230/277 VAC Number Of Poles 1 Operating Temperature 0 to 40 deg C Ambient Phase 1 pH Reset Type Thermal Melting Alloy Returnable N Series 2510 UNSPSC 39121521 Voltage Rating 600 VAC/250 VDC Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Type Type F RED INDICATOR Small size, economical Simple design Easy to install Long lasting reliability Both one-pole and two-pole versions are suitable for use with AC single phase motors rated up to 1 horsepower Jumbo stainless steel flush plate
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 16 A |
| Catalog Number | 2510FSJ1P |
| Connection Type | Screw Clamp |
| Control Type | Toggle Switch |
| Country of Origin | MX |
| Dimensions | 3.5 in W x 2.19 in D x 5.25 in H |
| Gross Weight Per Pack | 0.4500 lb |
| Item Group | 21101 |
| Motor Power | 1 hp at 115/230/277 VAC |
| Number Of Poles | 1 |
| Operating Temperature | 0 to 40 deg C Ambient |
| Phase | 1 pH |
| Reset Type | Thermal Melting Alloy |
| Returnable | N |
| Series | 2510 |
| UNSPSC | 39121521 |
| Voltage Rating | 600 VAC/250 VDC |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Type | Type F |
| RED INDICATOR |
| Small size, economical |
| Simple design |
| Easy to install |
| Long lasting reliability |
| Both one-pole and two-pole versions are suitable for use with AC single phase motors rated up to 1 horsepower |
| Jumbo stainless steel flush plate |
