Square D™

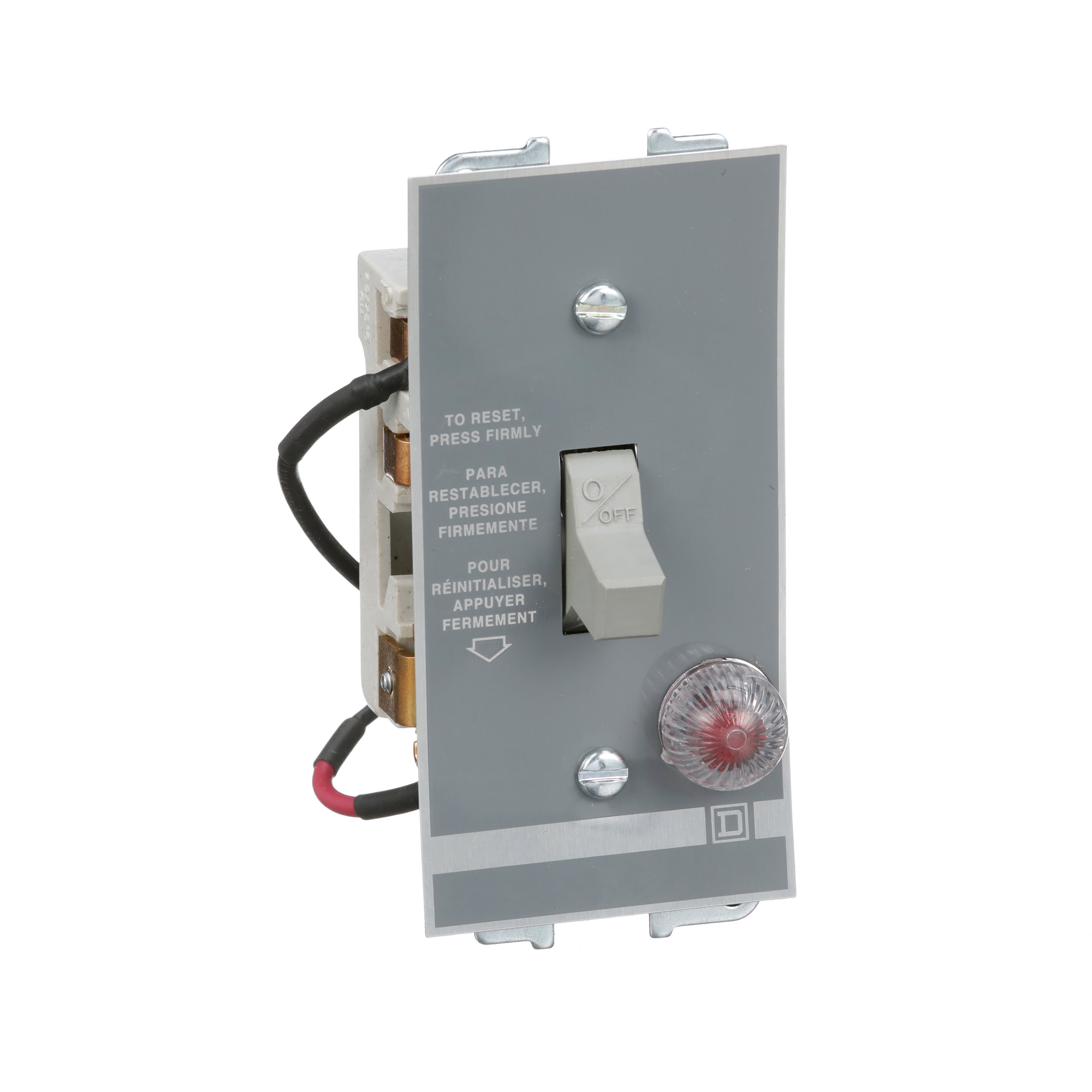

Square D™ 2510FO2P MANUAL STARTER 277VAC
Custom_Product_Images_Illustration
Square D™
Square D™ 2510FO2P MANUAL STARTER 277VAC
SKU98839
MFGR #2510FO2P
Your Cost: $127.04/ea
List: Square D 2510FO2P MANUAL STARTER 277VAC,0.75 hp 115 V DC-1 hp 277 V AC-0.75 hp 230 V DC-1 hp 115 V AC-1 hp 230 V AC,1 phase,16 A,230 V DC-277 V AC,F,Open,Provides overload protection as well as manual ON/OFF control for small motors in a variety of indust
Square D 2510FO2P MANUAL STARTER 277VAC,0.75 hp 115 V DC-1 hp 277 V AC-0.75 hp 230 V DC-1 hp 115 V AC-1 hp 230 V AC,1 phase,16 A,230 V DC-277 V AC,F,Open,Provides overload protection as well as manual ON/OFF control for small motors in a variety of indust
Alternate Catalog Number 2510FO2P Amperage Rating 16 A Application PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 2510FO2P Connection Screw clamp terminals Connection Type Screw Clamp Control Type Toggle Switch Country of Origin MX Currency USD Current Rating 16 A Depth 2.22 in Dimensions 1.69 in W x 2.22 in D x 4.13 in H Enclosure Type Open EU RoHS Indicator Y Gross Volume Per Pack 27.84 Gross Volume per Pack Metric 456.21 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 380.0800 lb Gross Weight per Pack Metric 172.40 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536504000 Height 6.4000 in Height [Metric] 6.4000 cm Item Group 21101 Length 12.2000 in Length [Metric] 12.2000 cm Manufacturer Schneider Electric Motor Power 0.75 hp at 115/230 VDC/1 hp at 115/277 VAC/2 hp at 230 VAC Number Of Phases 1 Number Of Poles 2 Operating Temperature 0 to 40 deg C Ambient Phase 1 pH Reset Type Thermal Melting Alloy Returnable Y Series 2510 Size 1.69 IN,2.22 IN,4.13 IN in Standard UL RECOGNIZED E42243 CCN NLRV2-CSA LR25490 CLASS 3211 05 Stock Status NONSTOCK Sub Brand F Substitute Product Catalog Number A.71 Type Type F UNSPSC 39121521 UPC 11 78590155416 UPC 12 785901554165 Voltage Rating 277 VAC/230 VDC Warranty Description Contractual Warranty:18 months Width 7.9000 in Width [Metric] 7.9000 cm PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. RED INDICATOR Small size, economical Simple design Easy to install Long lasting reliability Both one-pole and two-pole versions are suitable for use with AC single phase motors rated up to 1 horsepower Two-pole starters may also be used with DC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 2510FO2P |
| Amperage Rating | 16 A |
| Application | PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 2510FO2P |
| Connection | Screw clamp terminals |
| Connection Type | Screw Clamp |
| Control Type | Toggle Switch |
| Country of Origin | MX |
| Currency | USD |
| Current Rating | 16 A |
| Depth | 2.22 in |
| Dimensions | 1.69 in W x 2.22 in D x 4.13 in H |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 27.84 |
| Gross Volume per Pack Metric | 456.21 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 380.0800 lb |
| Gross Weight per Pack Metric | 172.40 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 6.4000 in |
| Height [Metric] | 6.4000 cm |
| Item Group | 21101 |
| Length | 12.2000 in |
| Length [Metric] | 12.2000 cm |
| Manufacturer | Schneider Electric |
| Motor Power | 0.75 hp at 115/230 VDC/1 hp at 115/277 VAC/2 hp at 230 VAC |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Operating Temperature | 0 to 40 deg C Ambient |
| Phase | 1 pH |
| Reset Type | Thermal Melting Alloy |
| Returnable | Y |
| Series | 2510 |
| Size | 1.69 IN,2.22 IN,4.13 IN in |
| Standard | UL RECOGNIZED E42243 CCN NLRV2-CSA LR25490 CLASS 3211 05 |
| Stock Status | NONSTOCK |
| Sub Brand | F |
| Substitute Product Catalog Number | A.71 |
| Type | Type F |
| UNSPSC | 39121521 |
| UPC 11 | 78590155416 |
| UPC 12 | 785901554165 |
| Voltage Rating | 277 VAC/230 VDC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 7.9000 in |
| Width [Metric] | 7.9000 cm |
| PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. |
| RED INDICATOR |
| Small size, economical |
| Simple design |
| Easy to install |
| Long lasting reliability |
| Both one-pole and two-pole versions are suitable for use with AC single phase motors rated up to 1 horsepower |
| Two-pole starters may also be used with DC |
