Square D™
Square D™ 2510FG74P MANUAL STARTER 277VAC
Custom_Product_Images_Illustration
Square D™

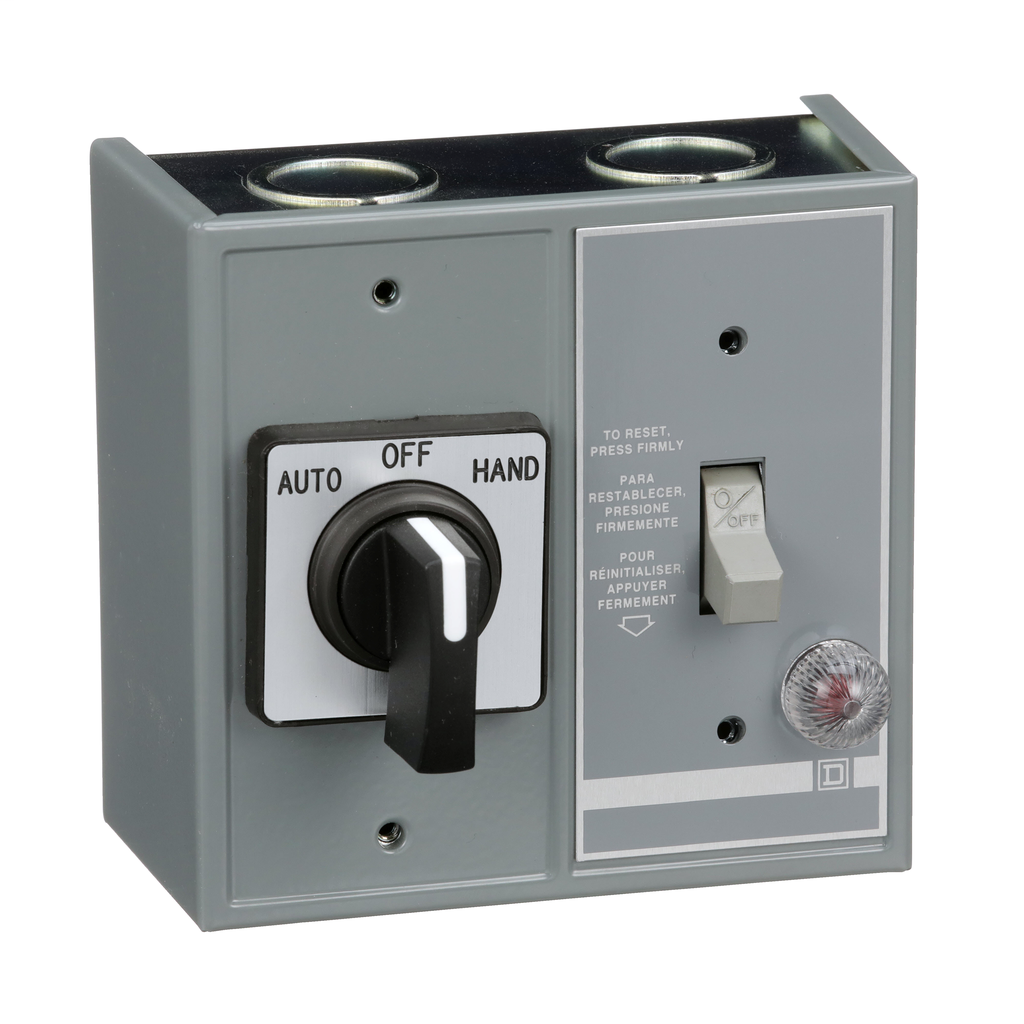

Square D™ 2510FG74P MANUAL STARTER 277VAC
SKU613644
MFGR #2510FG74P
Your Cost: $383.18/ea
Square D 2510FG74P MANUAL STARTER 277VAC,0.75 hp 230 V DC-0.75 hp 115 V DC-1 hp 277 V AC-1 hp 115 V AC-1 hp 230 V AC,1 phase,16 A,230 V DC-277 V AC,2P,CE, CSA, UL listed,Duplex Unit Manual Starter,F,Manual,NEMA 1 plastic standard size,Non reversing,Screw
Square D 2510FG74P MANUAL STARTER 277VAC,0.75 hp 230 V DC-0.75 hp 115 V DC-1 hp 277 V AC-1 hp 115 V AC-1 hp 230 V AC,1 phase,16 A,230 V DC-277 V AC,2P,CE, CSA, UL listed,Duplex Unit Manual Starter,F,Manual,NEMA 1 plastic standard size,Non reversing,Screw
Amperage Rating 16 A Application NON REVERSING ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 2510FG74P Connection Screw clamp terminals Connection Type Screw Clamp Control Type Removable Key Country of Origin MX Dimensions 2.44 in W x 3.81 in D x 4.25 in H Enclosure Type NEMA 1 EU RoHS Indicator N Gross Weight Per Pack 1.7600 lb Harmonization Tariff Schedule Code 8536504000 Item Group 21101 Manufacturer Schneider Electric Material Sheet Steel Motor Power 0.75 hp at 115/230 VDC/1 hp at 115/277 VAC/2 hp at 230 VAC Number Of Poles 2 Operating Temperature 0 to 40 deg C Ambient Overload Relay Thermal Melting Alloy Phase 1 pH Reset Type Thermal Melting Alloy Returnable Y Series 2510 Size 2.44 IN,3.81 IN,4.25 IN Standard UL LISTED FILE E42243 CCN NLRV-CSA LR25490 CLASS 3211 05 Stock Status NONSTOCK Sub Brand F Substitute Product Catalog Number 2510FL1 Type Type F UNSPSC 39121521 UPC 11 78590152073 UPC 12 785901520733 Voltage Rating 277 VAC/230 VDC NON REVERSING RED INDICATOR Small size, economical Simple design Easy to install Long lasting reliability Both one-pole and two-pole versions are suitable for use with AC single phase motors rated up to 1 horsepower Two-pole starters may also be used with DC NEMA type 1 general purpose enclosure NEMA 1
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 16 A |
| Application | NON REVERSING |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 2510FG74P |
| Connection | Screw clamp terminals |
| Connection Type | Screw Clamp |
| Control Type | Removable Key |
| Country of Origin | MX |
| Dimensions | 2.44 in W x 3.81 in D x 4.25 in H |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 1.7600 lb |
| Harmonization Tariff Schedule Code | 8536504000 |
| Item Group | 21101 |
| Manufacturer | Schneider Electric |
| Material | Sheet Steel |
| Motor Power | 0.75 hp at 115/230 VDC/1 hp at 115/277 VAC/2 hp at 230 VAC |
| Number Of Poles | 2 |
| Operating Temperature | 0 to 40 deg C Ambient |
| Overload Relay | Thermal Melting Alloy |
| Phase | 1 pH |
| Reset Type | Thermal Melting Alloy |
| Returnable | Y |
| Series | 2510 |
| Size | 2.44 IN,3.81 IN,4.25 IN |
| Standard | UL LISTED FILE E42243 CCN NLRV-CSA LR25490 CLASS 3211 05 |
| Stock Status | NONSTOCK |
| Sub Brand | F |
| Substitute Product Catalog Number | 2510FL1 |
| Type | Type F |
| UNSPSC | 39121521 |
| UPC 11 | 78590152073 |
| UPC 12 | 785901520733 |
| Voltage Rating | 277 VAC/230 VDC |
| NON REVERSING |
| RED INDICATOR |
| Small size, economical |
| Simple design |
| Easy to install |
| Long lasting reliability |
| Both one-pole and two-pole versions are suitable for use with AC single phase motors rated up to 1 horsepower |
| Two-pole starters may also be used with DC |
| NEMA type 1 general purpose enclosure |
| NEMA 1 |
