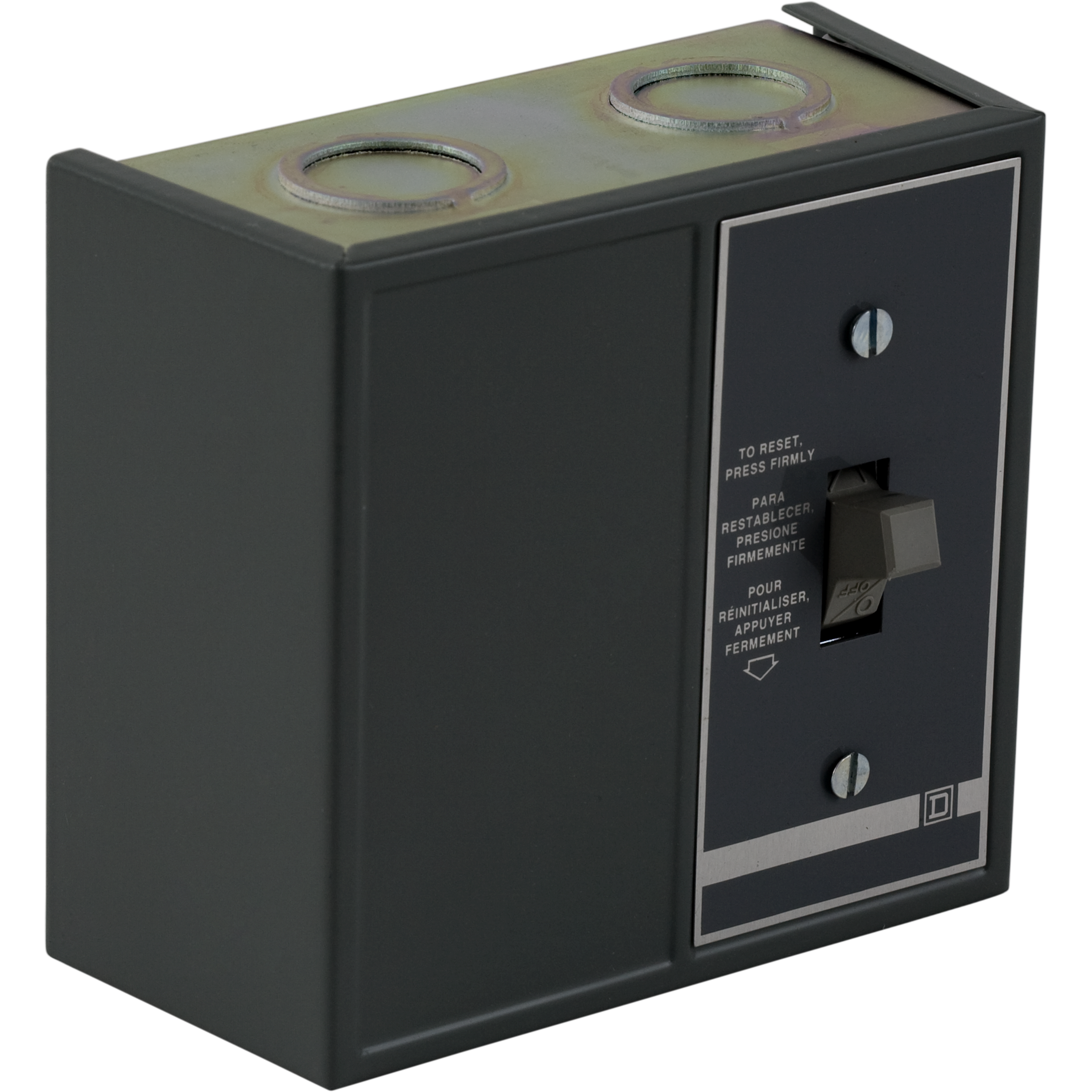

Square D™ 2510FG02P MANUAL STARTER 277VAC
SKU302657
MFGR #2510FG02P
Your Cost: $251.67/ea
Square D 2510FG02P MANUAL STARTER 277VAC,0.5 and 0.75 Inch Knockouts (top and bottom) Screw Clamp,1-Phase,16A,1HP115/230/277VAC - 0.75HP115/230VDC,2P,600 Vac/250 Vdc,Duplex Unit Metal Box - General Purpose,F,NEMA 1,Non-Reversing Manual Starter,Provides
Square D 2510FG02P MANUAL STARTER 277VAC,0.5 and 0.75 Inch Knockouts (top and bottom) Screw Clamp,1-Phase,16A,1HP115/230/277VAC - 0.75HP115/230VDC,2P,600 Vac/250 Vdc,Duplex Unit Metal Box - General Purpose,F,NEMA 1,Non-Reversing Manual Starter,Provides
Alternate Catalog Number 2510FG02P Amperage Rating 16 A Application PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. ARRA Compliant N Buy American Compliant N Catalog Number 2510FG02P Connection 0.5 AND 0.75 INCH KNOCKOUTS (TOP AND BOTTOM) SCREW CLAMP Connection Type Screw Clamp Control Type Toggle Switch Country of Origin MX Depth 2.75 in Dimensions 4-1/2 in W x 2-3/4 in D x 4-1/4 in H EU RoHS Indicator Y Gross Weight Per Pack 0.8000 lb Gross Weight per Pack Metric 649.09 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536504000 Height 3.47 in Height [Metric] 8.8900 cm Item Group 21101 Length 5.45 in Length [Metric] 13.9700 cm Material Sheet Steel Motor Power 0.75 hp at 115/230 VDC/1 hp at 115/277 VAC/2 hp at 230 VAC Number Of Poles 2 Operating Temperature 0 to 40 deg C Ambient Overload Relay Thermal Melting Alloy Phase 1 pH Reset Type Thermal Melting Alloy Returnable N Series 2510 Size 2.75 IN,4.25 IN,4.5 IN Standard UL LISTED - CSA CERTIFIED - CE MARKED Sub Brand F Substitute Product Catalog Number 2510FL1 UNSPSC 39121521 UPC 11 78590155406 UPC 12 785901554066 Upsell Product Catalog Number A1.16 Voltage Rating 600 VAC/250 VDC Warranty Description Contractual Warranty:18 months Width 4.46 in Width [Metric] 11.4300 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Enclosure Type NEMA 1 Type Type F PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. RED INDICATOR Small size, economical Simple design Easy to install Long lasting reliability Both one-pole and two-pole versions are suitable for use with AC single phase motors rated up to 1 horsepower Two-pole starters may also be used with DC NEMA type 1 general purpose enclosure NEMA 1
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 2510FG02P |
| Amperage Rating | 16 A |
| Application | PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 2510FG02P |
| Connection | 0.5 AND 0.75 INCH KNOCKOUTS (TOP AND BOTTOM) SCREW CLAMP |
| Connection Type | Screw Clamp |
| Control Type | Toggle Switch |
| Country of Origin | MX |
| Depth | 2.75 in |
| Dimensions | 4-1/2 in W x 2-3/4 in D x 4-1/4 in H |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.8000 lb |
| Gross Weight per Pack Metric | 649.09 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 3.47 in |
| Height [Metric] | 8.8900 cm |
| Item Group | 21101 |
| Length | 5.45 in |
| Length [Metric] | 13.9700 cm |
| Material | Sheet Steel |
| Motor Power | 0.75 hp at 115/230 VDC/1 hp at 115/277 VAC/2 hp at 230 VAC |
| Number Of Poles | 2 |
| Operating Temperature | 0 to 40 deg C Ambient |
| Overload Relay | Thermal Melting Alloy |
| Phase | 1 pH |
| Reset Type | Thermal Melting Alloy |
| Returnable | N |
| Series | 2510 |
| Size | 2.75 IN,4.25 IN,4.5 IN |
| Standard | UL LISTED - CSA CERTIFIED - CE MARKED |
| Sub Brand | F |
| Substitute Product Catalog Number | 2510FL1 |
| UNSPSC | 39121521 |
| UPC 11 | 78590155406 |
| UPC 12 | 785901554066 |
| Upsell Product Catalog Number | A1.16 |
| Voltage Rating | 600 VAC/250 VDC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 4.46 in |
| Width [Metric] | 11.4300 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Enclosure Type | NEMA 1 |
| Type | Type F |
| PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. |
| RED INDICATOR |
| Small size, economical |
| Simple design |
| Easy to install |
| Long lasting reliability |
| Both one-pole and two-pole versions are suitable for use with AC single phase motors rated up to 1 horsepower |
| Two-pole starters may also be used with DC |
| NEMA type 1 general purpose enclosure |
| NEMA 1 |
