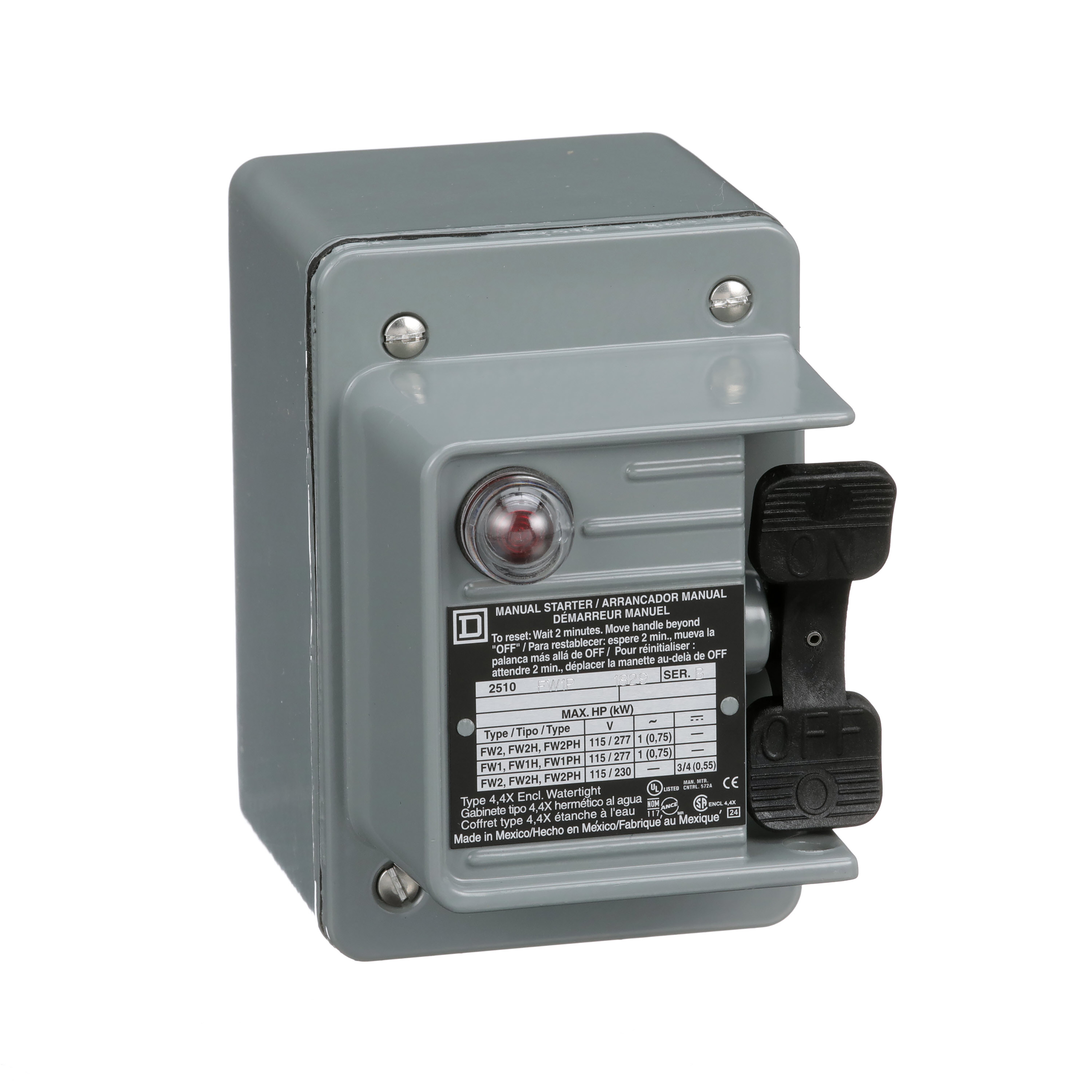

Square D™ 2510F Type F Non-Reversing Manual Starter, 1 Pole, NEMA 4 Enclosure
Custom_Product_Images_Illustration
Square D™
Square D™ 2510F Type F Non-Reversing Manual Starter, 1 Pole, NEMA 4 Enclosure
SKU98841
MFGR #2510FW1P
Square D 2510FW1P MANUAL STARTER 277VAC,0.75 NPT (bottom) Screw Clamp,1-Phase,16A,1HP115/230/277VAC,1P,600 Vac/250 Vdc,F,NEMA 4,Non-Reversing Manual Starter,Provides overload protection as well as manual ON/OFF control for small motors in a variety of in
Square D 2510FW1P MANUAL STARTER 277VAC,0.75 NPT (bottom) Screw Clamp,1-Phase,16A,1HP115/230/277VAC,1P,600 Vac/250 Vdc,F,NEMA 4,Non-Reversing Manual Starter,Provides overload protection as well as manual ON/OFF control for small motors in a variety of in
Action Toggle Alternate Catalog Number 2510FW1P Amperage Rating 16 A Application PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 2510FW1P Connection Screw clamp terminals Connection Type Screw Clamp Control Type Toggle Country of Origin MX Currency USD Current Rating 16 A Depth 4.56 in Dimensions 4.38 in H x 3 in W x 4.56 in D Enclosure Type NEMA 4 EU RoHS Indicator Y Gross Volume Per Pack 88.83 Gross Volume per Pack Metric 1455.66 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 2.9500 lb Gross Weight per Pack Metric 1.34 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 8.8900 in Height [Metric] 9.1000 cm Item Group 21101 Length 13.7160 in Length [Metric] 13.7000 cm Manufacturer Schneider Electric Material Die Cast Zinc Alloy Motor Power 1 hp Number Of Phases 1 Number Of Poles 1 Overload Relay Thermal Melting Alloy Phase 1 pH Reset Type Manual Returnable Y Series 2510F Size 4.56 in Standard UL LISTED - CSA CERTIFIED - CE MARKED Stock Status NONSTOCK Sub Brand F Substitute Product Catalog Number A.49 Type Type F Non-Reversing Single Unit UNSPSC 39121521 UPC 11 78590155437 UPC 12 785901554370 Voltage Rating 600 VAC/250 VDC VAC Warranty Description Contractual Warranty:18 months Width 11.9380 in Width [Metric] 11.9000 cm PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. RED INDICATOR 0.75 in NPT (bottom) screw clamp connection Red indicator pilot light 0.75 NPT conduit Single unit metal box general purpose 1 hp at 230 VAC 277 VAC 115 VAC motor power Toggle switch with lock off
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Toggle |
| Alternate Catalog Number | 2510FW1P |
| Amperage Rating | 16 A |
| Application | PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 2510FW1P |
| Connection | Screw clamp terminals |
| Connection Type | Screw Clamp |
| Control Type | Toggle |
| Country of Origin | MX |
| Currency | USD |
| Current Rating | 16 A |
| Depth | 4.56 in |
| Dimensions | 4.38 in H x 3 in W x 4.56 in D |
| Enclosure Type | NEMA 4 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 88.83 |
| Gross Volume per Pack Metric | 1455.66 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 2.9500 lb |
| Gross Weight per Pack Metric | 1.34 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 8.8900 in |
| Height [Metric] | 9.1000 cm |
| Item Group | 21101 |
| Length | 13.7160 in |
| Length [Metric] | 13.7000 cm |
| Manufacturer | Schneider Electric |
| Material | Die Cast Zinc Alloy |
| Motor Power | 1 hp |
| Number Of Phases | 1 |
| Number Of Poles | 1 |
| Overload Relay | Thermal Melting Alloy |
| Phase | 1 pH |
| Reset Type | Manual |
| Returnable | Y |
| Series | 2510F |
| Size | 4.56 in |
| Standard | UL LISTED - CSA CERTIFIED - CE MARKED |
| Stock Status | NONSTOCK |
| Sub Brand | F |
| Substitute Product Catalog Number | A.49 |
| Type | Type F Non-Reversing Single Unit |
| UNSPSC | 39121521 |
| UPC 11 | 78590155437 |
| UPC 12 | 785901554370 |
| Voltage Rating | 600 VAC/250 VDC VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 11.9380 in |
| Width [Metric] | 11.9000 cm |
| PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. |
| RED INDICATOR |
| 0.75 in NPT (bottom) screw clamp connection |
| Red indicator pilot light |
| 0.75 NPT conduit |
| Single unit metal box general purpose |
| 1 hp at 230 VAC 277 VAC 115 VAC motor power |
| Toggle switch with lock off |
