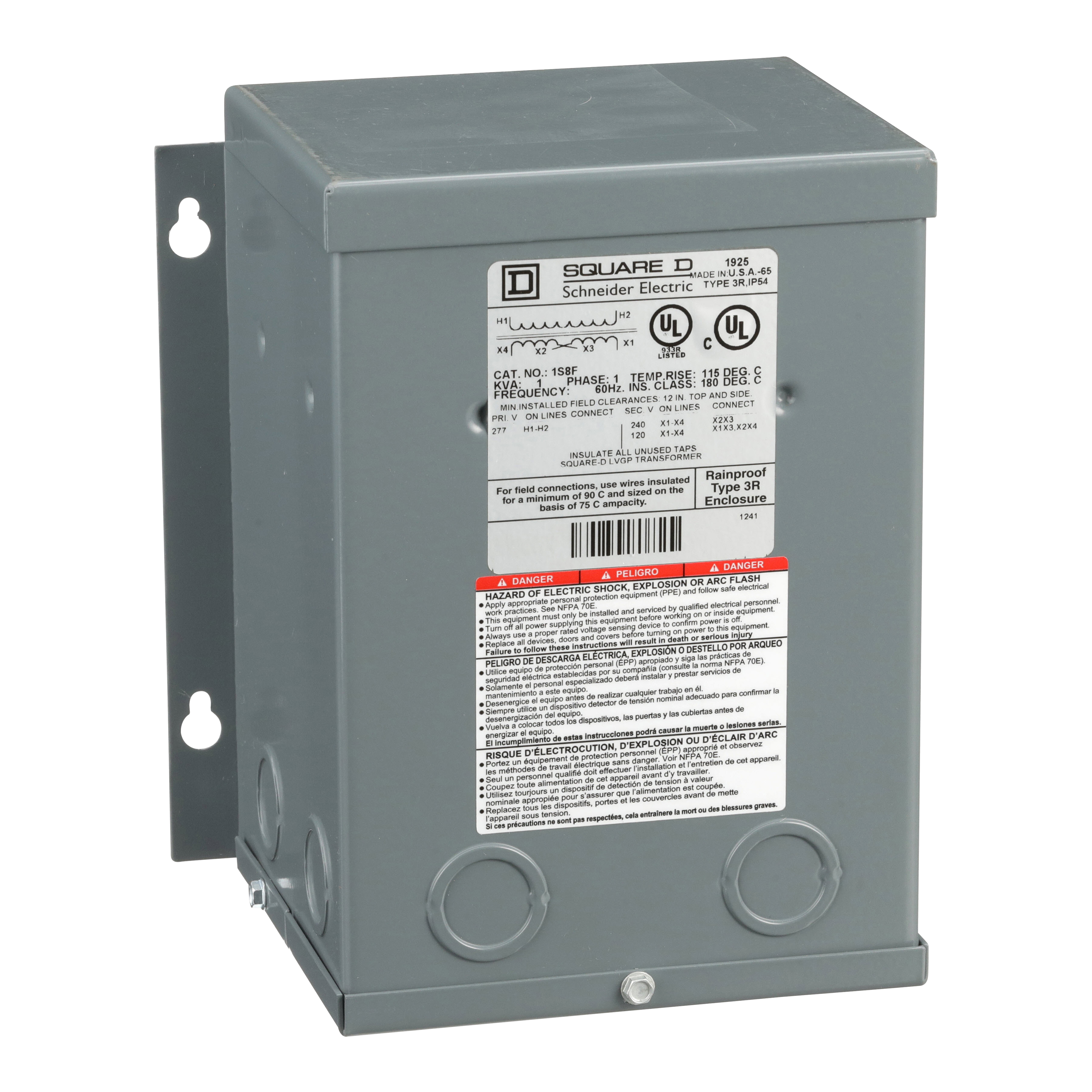

Square D™ 1S8F TRANSFORMER DRY 1PH 1KVA 2
SKU777896
MFGR #1S8F
Your Cost: $1,654.99/ea
Square D 1S8F TRANSFORMER DRY 1PH 1KVA 277V-120/240V,0,1 kVA,1 phase,115 Degrees C,120/240VAC,180 deg.C,277VAC,Dry Sealed Transformer,General Purpose - Intended for power, heating and lighting applications,NEMA 3R,Wall,cULus Listed
Square D 1S8F TRANSFORMER DRY 1PH 1KVA 277V-120/240V,0,1 kVA,1 phase,115 Degrees C,120/240VAC,180 deg.C,277VAC,Dry Sealed Transformer,General Purpose - Intended for power, heating and lighting applications,NEMA 3R,Wall,cULus Listed
Alternate Catalog Number 1S8F Application GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS ARRA Compliant N Buy American Compliant N Catalog Number 1S8F Country of Origin US Currency USD Dimensions 6.94 in W x 5.31 in D x 8.13 in H Enclosure Painted sheet steel;7 Enclosure Type NEMA 3R EU RoHS Indicator Y Gross Volume Per Pack 1051.01 Gross Volume per Pack Metric 17222.87 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 21.2100 lb Gross Weight per Pack Metric 9.62 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504316000 Height 23.3680 in Height [Metric] 23.3680 cm Housing Material Sheet Steel Insulation Class 115 Item Group 16277 KVA Rating 1 Length 28.4480 in Length [Metric] 28.4480 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=455473&lang=en-us Mounting Wall Mounted Mounting Type Wall Number Of Taps 0 Returnable Y Standard UL LISTED-CULUS-CSA Temperature Rating 115 °C Type Dry Sealed UNSPSC 39121001 UPC 11 78590101442 UPC 12 785901014423 Warranty Description Contractual Warranty:18 months Width 25.9080 in Width [Metric] 25.9080 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Frequency Rating 60 Hz Phase 1 pH Power Rating 1 kVA Primary Voltage 277 VAC Secondary Voltage 120/240 VAC GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS DRY SEALED TRANSFORMER Painted finish Individual enclosures from 50 VA through 5 kVA allowing for the most compact solutions in the industry Large stock level of the product located in 2 Square D™ distribution centers, allowing customer to obtain product quickly Can be field connected for 3 ph applications, when codes limit size of transformers (other air handling space - not to exceed 50kVA) or where floor space is limited but wall space is abundant Can be configured into autotransformer open delta to convert 480 delta to 380 delta or 400 delta or can supply isolation solution from 480 delta to 415Y/240 for overseas equipment arriving in the United States - eliminating the need to wait for customer built transformer General purpose - intended for power, heating and lighting applications, these units can be used outdoors without accessories Resin-filled transformers
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 1S8F |
| Application | GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 1S8F |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 6.94 in W x 5.31 in D x 8.13 in H |
| Enclosure | Painted sheet steel;7 |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 1051.01 |
| Gross Volume per Pack Metric | 17222.87 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 21.2100 lb |
| Gross Weight per Pack Metric | 9.62 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504316000 |
| Height | 23.3680 in |
| Height [Metric] | 23.3680 cm |
| Housing Material | Sheet Steel |
| Insulation Class | 115 |
| Item Group | 16277 |
| KVA Rating | 1 |
| Length | 28.4480 in |
| Length [Metric] | 28.4480 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=455473&lang=en-us |
| Mounting | Wall Mounted |
| Mounting Type | Wall |
| Number Of Taps | 0 |
| Returnable | Y |
| Standard | UL LISTED-CULUS-CSA |
| Temperature Rating | 115 °C |
| Type | Dry Sealed |
| UNSPSC | 39121001 |
| UPC 11 | 78590101442 |
| UPC 12 | 785901014423 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 25.9080 in |
| Width [Metric] | 25.9080 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Frequency Rating | 60 Hz |
| Phase | 1 pH |
| Power Rating | 1 kVA |
| Primary Voltage | 277 VAC |
| Secondary Voltage | 120/240 VAC |
| GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS |
| DRY SEALED TRANSFORMER |
| Painted finish |
| Individual enclosures from 50 VA through 5 kVA allowing for the most compact solutions in the industry |
| Large stock level of the product located in 2 Square D™ distribution centers, allowing customer to obtain product quickly |
| Can be field connected for 3 ph applications, when codes limit size of transformers (other air handling space - not to exceed 50kVA) or where floor space is limited but wall space is abundant |
| Can be configured into autotransformer open delta to convert 480 delta to 380 delta or 400 delta or can supply isolation solution from 480 delta to 415Y/240 for overseas equipment arriving in the United States - eliminating the need to wait for customer built transformer |
| General purpose - intended for power, heating and lighting applications, these units can be used outdoors without accessories |
| Resin-filled transformers |
