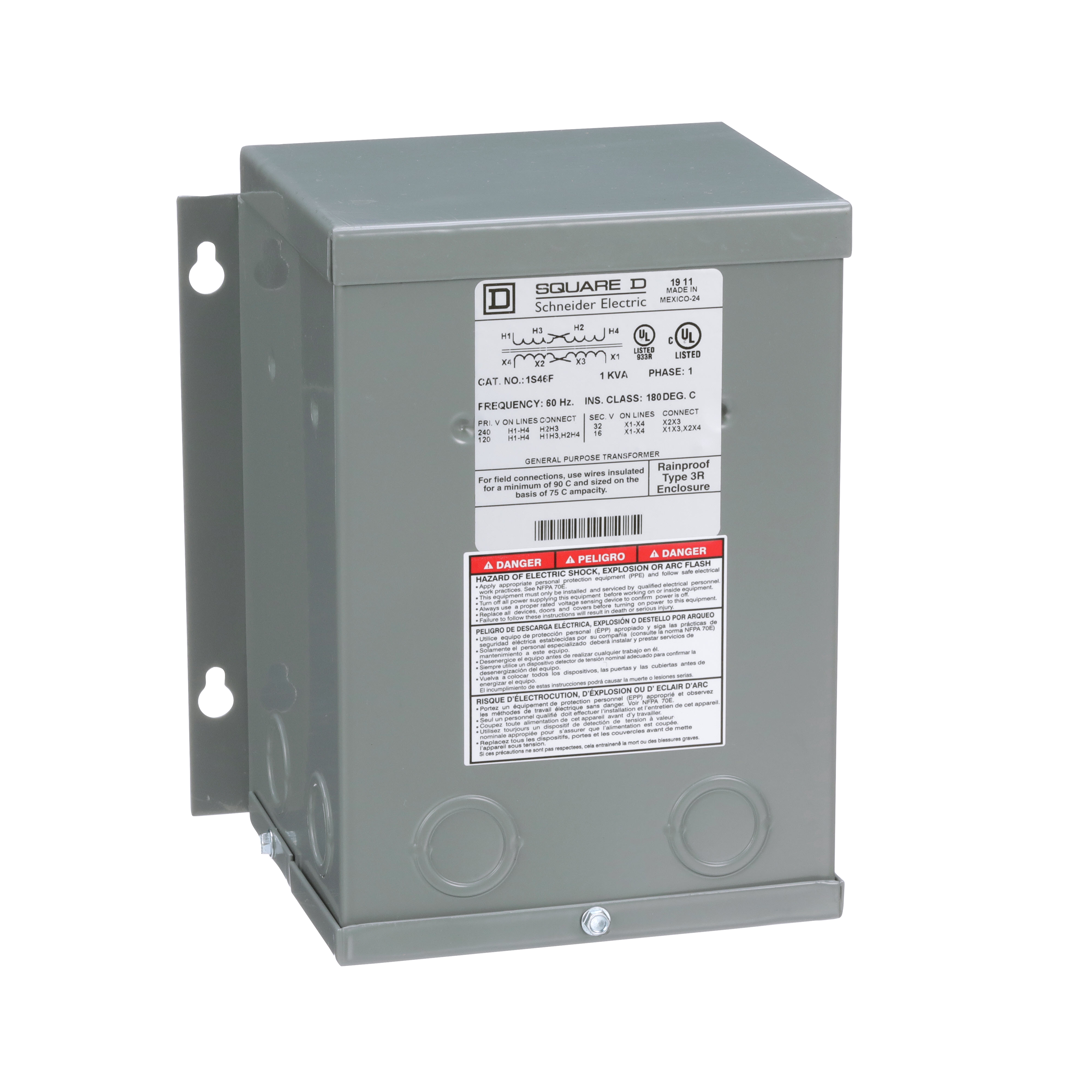

Square D™ 1S46F Buck Boost Transformer, 120/240 VAC Primary, 16/32 VAC Secondary, 1 kVA, 60 Hz, 1 Phase
Custom_Product_Images_Illustration
Square D™
Square D™ 1S46F Buck Boost Transformer, 120/240 VAC Primary, 16/32 VAC Secondary, 1 kVA, 60 Hz, 1 Phase
SKU100085
MFGR #1S46F
Your Cost: $1,090.39/ea
Square D 1S46F TRANSFORMER DRY 1PH 1KVA 120X240V-16/32V,115 Degrees C,120 x 240VAC,16/32VAC,180 deg.C,Buck and Boost - Primary use is that the primary and secondary can be interconnected for use as an autotransformer,Buck and Boost Transformer,Painted Steel NEMA 3R,Sealed and Resin Filled,Wall,cULus Listed
Square D 1S46F TRANSFORMER DRY 1PH 1KVA 120X240V-16/32V,115 Degrees C,120 x 240VAC,16/32VAC,180 deg.C,Buck and Boost - Primary use is that the primary and secondary can be interconnected for use as an autotransformer,Buck and Boost Transformer,Painted Steel NEMA 3R,Sealed and Resin Filled,Wall,cULus Listed
Alternate Catalog Number 1S46F Application BUCK AND BOOST - PRIMARY USE IS THAT THE PRIMARY AND SECONDARY CAN BE INTERCONNECTED FOR USE AS AN AUTOTRANSFORMER ARRA Compliant N Buy American Compliant N Catalog Number 1S46F Country of Origin MX Currency USD Dimensions 8.13 in H x 6.94 in W x 5.31 in D Enclosure 7A,NEMA 3R Enclosure Type NEMA 3R/IP54 EU RoHS Indicator Y Gross Volume Per Pack 1108.38 Gross Volume per Pack Metric 18163.02 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 24.9600 lb Gross Weight per Pack Metric 11.32 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504316000 Height 23.1140 in Height [Metric] 23.1140 cm Housing Material Steel Insulation 180 Insulation Class 356 Item Group 16265 Length 29.4640 in Length [Metric] 29.4640 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=455445&lang=en-us Mounting Wall Mounting Type Wall Returnable Y Standard cULus Listed Substitute Product Catalog Number VCELSK1 Temperature Rating 115 °C Type Dry UNSPSC 39121025 UPC 11 78590187632 UPC 12 785901876328 Warranty Description Contractual Warranty:18 months Width 26.6700 in Width [Metric] 26.6700 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Frequency Rating 60 Hz Phase 1 Power Rating 1 kVA Primary Voltage 120/240 VAC Secondary Voltage 16/32 VAC BUCK AND BOOST - PRIMARY USE IS THAT THE PRIMARY AND SECONDARY CAN BE INTERCONNECTED FOR USE AS AN AUTOTRANSFORMER SEALED AND RESIN FILLED The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated Carry the full load stated on the nameplate isolation transformer Can carry loads in excess of their nameplate rating Numerous voltage ratios and current ratings can be obtained by varying the connection between the two primary windings and the two secondary windings Increased ampacity depends upon the ratio and the voltage to which the transformer is subjected Economical, compact means of slightly adjusting an application's voltage up or down Gray color Powder coated enclosure finish 180 deg C insulation temperature
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 1S46F |
| Application | BUCK AND BOOST - PRIMARY USE IS THAT THE PRIMARY AND SECONDARY CAN BE INTERCONNECTED FOR USE AS AN AUTOTRANSFORMER |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 1S46F |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 8.13 in H x 6.94 in W x 5.31 in D |
| Enclosure | 7A,NEMA 3R |
| Enclosure Type | NEMA 3R/IP54 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 1108.38 |
| Gross Volume per Pack Metric | 18163.02 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 24.9600 lb |
| Gross Weight per Pack Metric | 11.32 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504316000 |
| Height | 23.1140 in |
| Height [Metric] | 23.1140 cm |
| Housing Material | Steel |
| Insulation | 180 |
| Insulation Class | 356 |
| Item Group | 16265 |
| Length | 29.4640 in |
| Length [Metric] | 29.4640 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=455445&lang=en-us |
| Mounting | Wall |
| Mounting Type | Wall |
| Returnable | Y |
| Standard | cULus Listed |
| Substitute Product Catalog Number | VCELSK1 |
| Temperature Rating | 115 °C |
| Type | Dry |
| UNSPSC | 39121025 |
| UPC 11 | 78590187632 |
| UPC 12 | 785901876328 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 26.6700 in |
| Width [Metric] | 26.6700 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Power Rating | 1 kVA |
| Primary Voltage | 120/240 VAC |
| Secondary Voltage | 16/32 VAC |
| BUCK AND BOOST - PRIMARY USE IS THAT THE PRIMARY AND SECONDARY CAN BE INTERCONNECTED FOR USE AS AN AUTOTRANSFORMER |
| SEALED AND RESIN FILLED |
| The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated |
| Carry the full load stated on the nameplate isolation transformer |
| Can carry loads in excess of their nameplate rating |
| Numerous voltage ratios and current ratings can be obtained by varying the connection between the two primary windings and the two secondary windings |
| Increased ampacity depends upon the ratio and the voltage to which the transformer is subjected |
| Economical, compact means of slightly adjusting an application's voltage up or down |
| Gray color |
| Powder coated enclosure finish |
| 180 deg C insulation temperature |
