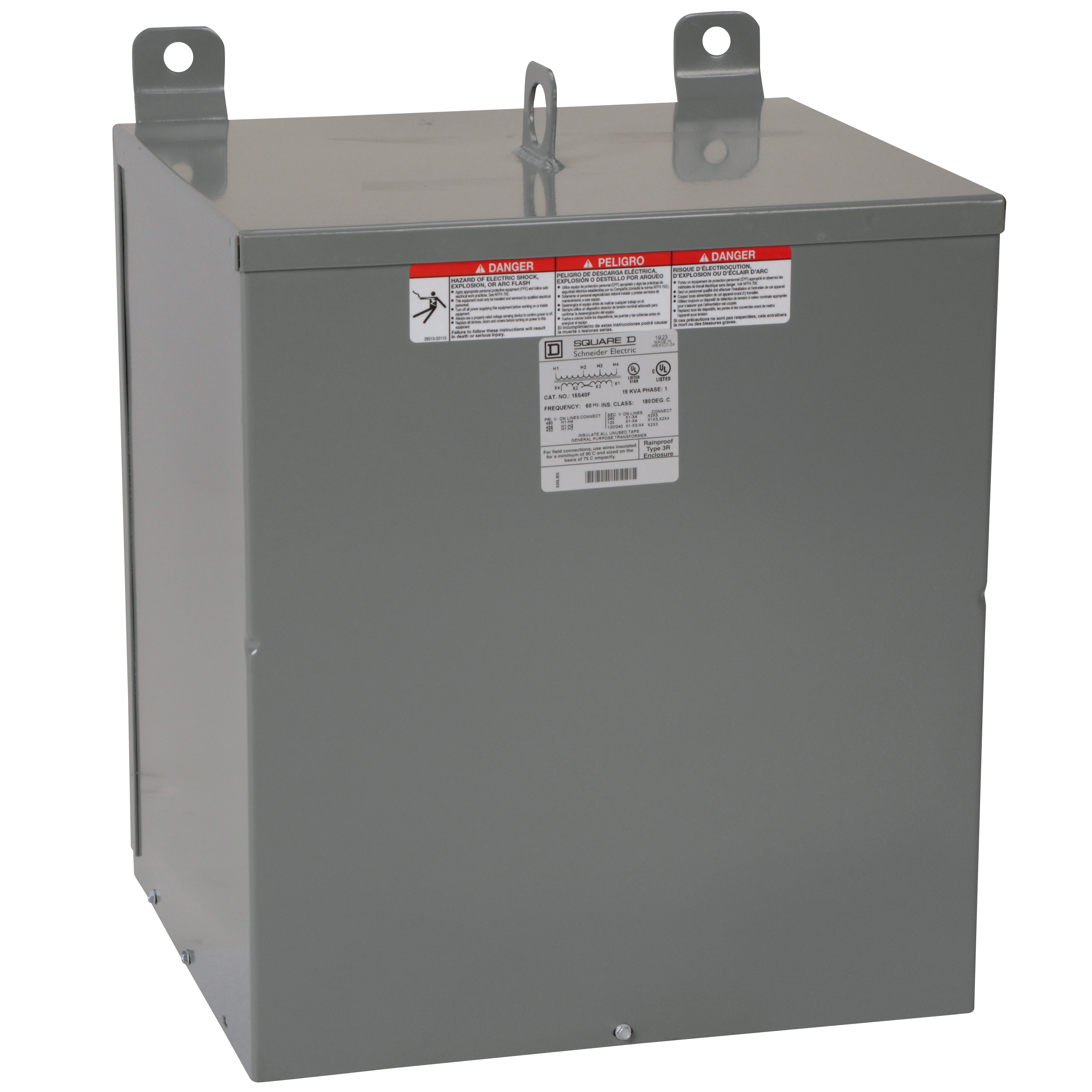

Square D™ 15S40FSS Dry Sealed Low Voltage Transformer, 480 VAC Primary, 120/240 VAC Secondary, 15 kVA, 60 Hz, 1 ph Phase
General Purpose - Multi-Use Transformers
521561
MFG #: 15S40FSS
Square D™
10683.07000
/ ea
Square D™ Low Voltage Transformer, Dry Sealed, 480 VAC Primary, 120/240 VAC Secondary, 15 kVA, 60 Hz, 1 ph, 2 Taps, Wall Mount, 356 deg F, NEMA 3R Enclosure, 115 deg C, 316 Stainless Steel Housing, 15 in W x 13-1/2 in D x 20 in H
- Brochure URL - 482202b17e9da3c7d6a61d89b7977d1d0715c6f6.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3642.dxf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_Y1GL5X6ZNJE3R9KP.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_TLNH31E8RBI6MAP9.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_I5X80GJ2HWECKZ3T.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_8EA03YO4IGSVCFKH.zip(Tech Drawing URL)
- Applications
- Features
| OEM Commercial, Industrial Markets |
| DRY SEALED TRANSFORMER |
| Individual enclosures from 50 VA through 5 kVA allowing for the most compact solutions in the industry |
| Large stock level of the product located in 2 Square D™ distribution centers, allowing customer to obtain product quickly |
| Can be field connected for 3 ph applications, when codes limit size of transformers (other air handling space - not to exceed 50kVA) or where floor space is limited but wall space is abundant |
| Can be configured into autotransformer open delta to convert 480 delta to 380 delta or 400 delta or can supply isolation solution from 480 delta to 415Y/240 for overseas equipment arriving in the United States - eliminating the need to wait for customer built transformer |
| General purpose - intended for power, heating and lighting applications, these units can be used outdoors without accessories |
| Resin-filled transformers |
