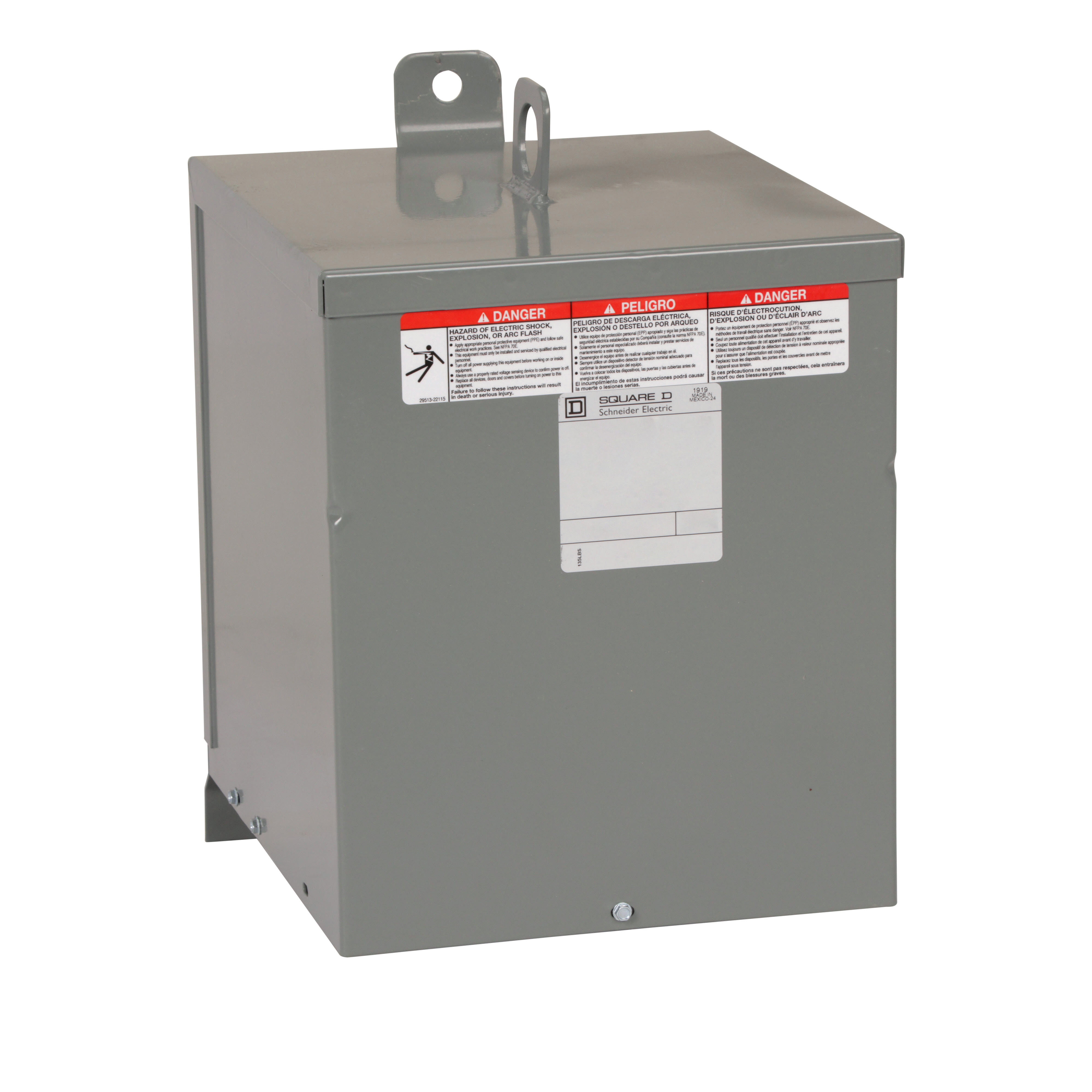

Square D™ 10S4F Dry Sealed Low Voltage Transformer, 600 VAC Primary, 120/240 VAC Secondary, 10 kVA Power Rating, 60 Hz, 1 Phase
Custom_Product_Images_Illustration
Square D™ 10S4F Dry Sealed Low Voltage Transformer, 600 VAC Primary, 120/240 VAC Secondary, 10 kVA Power Rating, 60 Hz, 1 Phase
SKU1112501
MFGR #10S4F
$/ea
Square D™ Transformer, Dry Sealed Low Voltage, 600 VAC Primary, 120/240 VAC Secondary, 10 kVA Power, 60 Hz Frequency, 1 ph, 2 Taps, Wall Mounting, 180 deg C Insulation, NEMA 3R Enclosure, 115 deg C, Sheet Steel Housing Material, 11-3/4 in L x 9-3/4 in W x 14-3/4 in H Dimensions
Square D™ Transformer, Dry Sealed Low Voltage, 600 VAC Primary, 120/240 VAC Secondary, 10 kVA Power, 60 Hz Frequency, 1 ph, 2 Taps, Wall Mounting, 180 deg C Insulation, NEMA 3R Enclosure, 115 deg C, Sheet Steel Housing Material, 11-3/4 in L x 9-3/4 in W x 14-3/4 in H Dimensions
Alternate Catalog Number 10S4F Application For intended power, heating, lighting applications, OEM commercial and industrial markets ARRA Compliant N Buy American Compliant N Catalog Number 10S4F Country of Origin US Currency USD Dimensions 11-3/4 in L x 9-3/4 in W x 14-3/4 in H Enclosure Painted sheet steel;13B Enclosure Type NEMA 3R EU RoHS Indicator Y Gross Weight Per Pack 0.7484 lb Gross Weight per Pack Metric 74.84 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504320000 Height 36.3220 in Height [Metric] 36.3220 cm Housing Material Sheet Steel Insulation 180 Insulation Class 115 Item Group 16277 KVA Rating 10 Length 26.4160 in Length [Metric] 26.4160 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=455197&lang=en-us Mounting Wall Mounted Mounting Type Wall Number Of Taps 2 Returnable N Standard CULUS-UL LISTED-CSA Temperature Rating 115 Type Dry Sealed Low Voltage UNSPSC 39121001 UPC 11 78590135962 UPC 12 785901359623 Warranty Description Contractual Warranty:18 months Width 35.3060 in Width [Metric] 35.3060 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Frequency Rating 60 Phase 1 Power Rating 10 Primary Voltage 600 Secondary Voltage 120/240 For intended power, heating, lighting applications, OEM commercial and industrial markets DRY SEALED TRANSFORMER Painted finish Individual enclosures from 50 VA through 5 kVA allowing for the most compact solutions in the industry Large stock level of the product located in 2 Square D™ distribution centers, allowing customer to obtain product quickly Can be field connected for 3-phase applications, when codes limit size of transformers (other air handling space - not to exceed 50kVA) or where floor space is limited but wall space is abundant Can be configured into autotransformer open delta to convert 480 delta to 380 delta or 400 delta or can supply isolation solution from 480 delta to 415Y/240 for overseas equipment arriving in the United States - eliminating the need to wait for customer built transformer General purpose - intended for power, heating and lighting applications, these units can be used outdoors without accessories Resin filled transformers
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 10S4F |
| Application | For intended power, heating, lighting applications, OEM commercial and industrial markets |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 10S4F |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 11-3/4 in L x 9-3/4 in W x 14-3/4 in H |
| Enclosure | Painted sheet steel;13B |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.7484 lb |
| Gross Weight per Pack Metric | 74.84 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504320000 |
| Height | 36.3220 in |
| Height [Metric] | 36.3220 cm |
| Housing Material | Sheet Steel |
| Insulation | 180 |
| Insulation Class | 115 |
| Item Group | 16277 |
| KVA Rating | 10 |
| Length | 26.4160 in |
| Length [Metric] | 26.4160 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=455197&lang=en-us |
| Mounting | Wall Mounted |
| Mounting Type | Wall |
| Number Of Taps | 2 |
| Returnable | N |
| Standard | CULUS-UL LISTED-CSA |
| Temperature Rating | 115 |
| Type | Dry Sealed Low Voltage |
| UNSPSC | 39121001 |
| UPC 11 | 78590135962 |
| UPC 12 | 785901359623 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 35.3060 in |
| Width [Metric] | 35.3060 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Frequency Rating | 60 |
| Phase | 1 |
| Power Rating | 10 |
| Primary Voltage | 600 |
| Secondary Voltage | 120/240 |
| For intended power, heating, lighting applications, OEM commercial and industrial markets |
| DRY SEALED TRANSFORMER |
| Painted finish |
| Individual enclosures from 50 VA through 5 kVA allowing for the most compact solutions in the industry |
| Large stock level of the product located in 2 Square D™ distribution centers, allowing customer to obtain product quickly |
| Can be field connected for 3-phase applications, when codes limit size of transformers (other air handling space - not to exceed 50kVA) or where floor space is limited but wall space is abundant |
| Can be configured into autotransformer open delta to convert 480 delta to 380 delta or 400 delta or can supply isolation solution from 480 delta to 415Y/240 for overseas equipment arriving in the United States - eliminating the need to wait for customer built transformer |
| General purpose - intended for power, heating and lighting applications, these units can be used outdoors without accessories |
| Resin filled transformers |
