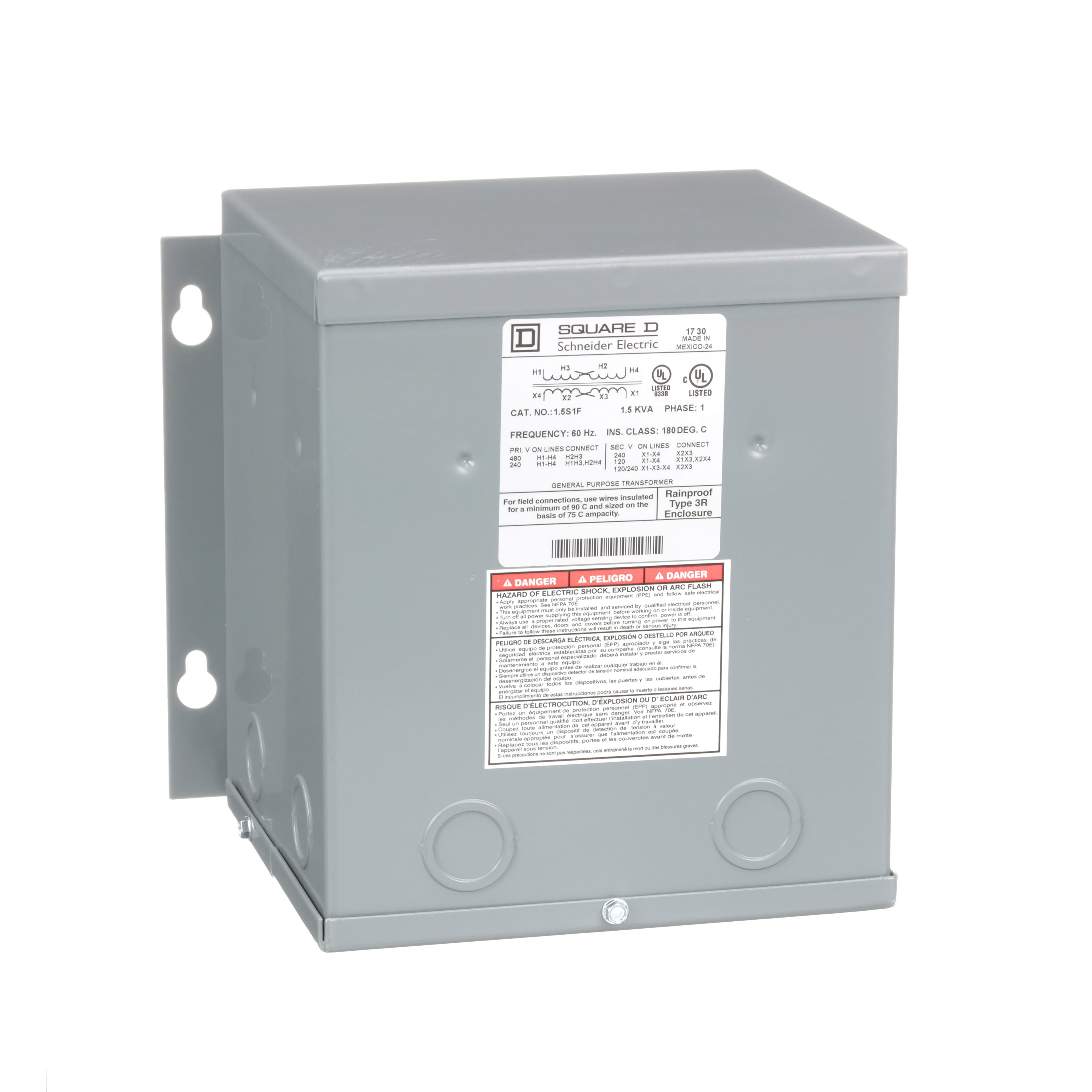

Square D™ 1.5S1F Dry Encapsulated General Purpose Resin Sealed Transformer, 240/480 VAC Primary, 120/240 VAC Secondary
General Purpose - Multi-Use Transformers
31552
MFG #: 1.5S1F
Square D™
301.52000
/ ea
Square D 1.5S1F TRANSFORMER DRY 1.5KVA 240X480V-120/240V,1 phase,1.5 kVA,115 Degrees C,120/240VAC,180 deg.C,240 x 480VAC,Dry Sealed Transformer,General Purpose - Intended for power, heating and lighting applications,NEMA 3R,Wall,cULus Listed
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8149063360Den&ext=webp(360 Degree View URL)
- Brochure URL - c5cb230133234aed14925dde8e73fa734a010f83.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_35f928f3b9c72a47fe6f7d69625b65faf2d87caff4fe70835fbbd692da225585.pdf(Catalog URL)
- Compliance Cert URL - Square_D_1_5S1F_Compliance_Certificate.pdf(Compliance Cert URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3580.dwg(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3580.dxf(Computer~Aided [CAD|BIM] Model URL)
- Full Eng Drawing URL - Square_D_10S1F_Technical_Drawing.pdf(Full Eng Drawing URL)
- Install Instructions 1 URL - 11003_Y1GL5X6ZNJE3R9KP.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Tech Drawing URL - 11003_Z976ELSGCPNU1IAW.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_MPWTRINAJLKS205Z.zip(Tech Drawing URL)
- Tech Bulletin URL - 11003_DVHEKX1S046YAG57.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_I5X80GJ2HWECKZ3T.pdf(Tech Bulletin URL)
- Spec Sheet URL - 11003_ECPJBVYL8R23F7AH.pdf(Spec Sheet URL)
- Applications
- Features
| GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS |
| DRY SEALED TRANSFORMER |
| Resin-filled general purpose transformers are epoxy encapsulated |
| Enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation |
| Core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection |
