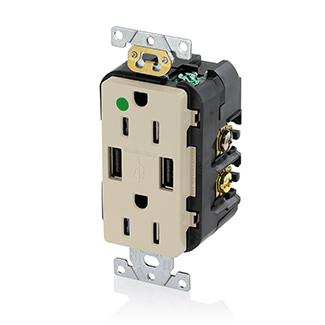

SmartlockPro® T5632-HGI Tamper-Resistant Combination Duplex Receptacle and USB Charger, 15 A/125 VAC/0.5 hp, 2 Poles, 3 Wires, Ivory
Receptacles & USB Ports
885707
MFG #: T5632-HGI
Leviton®
73.75000
/ ea
SmartlockPro® Combination Duplex Receptacle and USB Charger, Tamper-Resistant, 15 A/125 VAC/0.5 hp, 2 Poles, 3 Wires, 14 to 12 AWG Wire, 2.0 Type A USB, 3.6 A at 5 VDC USB, 4.04 in H x 1.73 in W x 1.67 in D, Back/Side Wired, Wall, Hospital Grade, Polybutylene Terephthalate/Thermoplastic Polyester Resin, Ivory, Environmental Conditions: -10 to 40 deg C Operating Temperature, UL 94 V-0 Flammability
- 5 Years Limited(WEB WARRANTY URL)
- http://www.leviton.com(WEB SELLER HOME PAGE URL)
- Video - https://www.youtube.com/embed/mdJEkHEoPgg(Video)
- WEB CATALOG URL - Decora_T5632_HG_Brochure.pdf(WEB CATALOG URL)
- WEB INSTALL INSTR URL - Decora_T5632_HG_Instruction_Sheet.pdf(WEB INSTALL INSTR URL)
- WEB SDS URL - MSDS.pdf(WEB SDS URL)
- WEB SPEC SHEET URL - Q-873A_Hospital_Grade_USB_Receptacles.pdf(WEB SPEC SHEET URL)
- Applications
- Features
| Hospital |
| Type A USB Chargers |
| Tamper-resistant shutters meet NEC Article 406.12 requirements |
| USB ports optimally spaced for simultaneous use, easy maneuvering and reduced USB cable stress |
| Brass self-grounding clip |
| Impact and chemical resistant PBT face provides longer service life |
| Back and side wired for easy installation |
| Compact design fits in a standard wallbox |
| Improved strap design provides greater support, even with ears removed |
| Brass line contacts, terminal clamp |
| Steel terminal screws, grounding screws, strap |
| Flammability rated V0 per UL94 |
| -10 to 40 deg C operating |
| 1/2 hp horsepower |
| PBT thermoplastic polyester resin |
