Leviton®

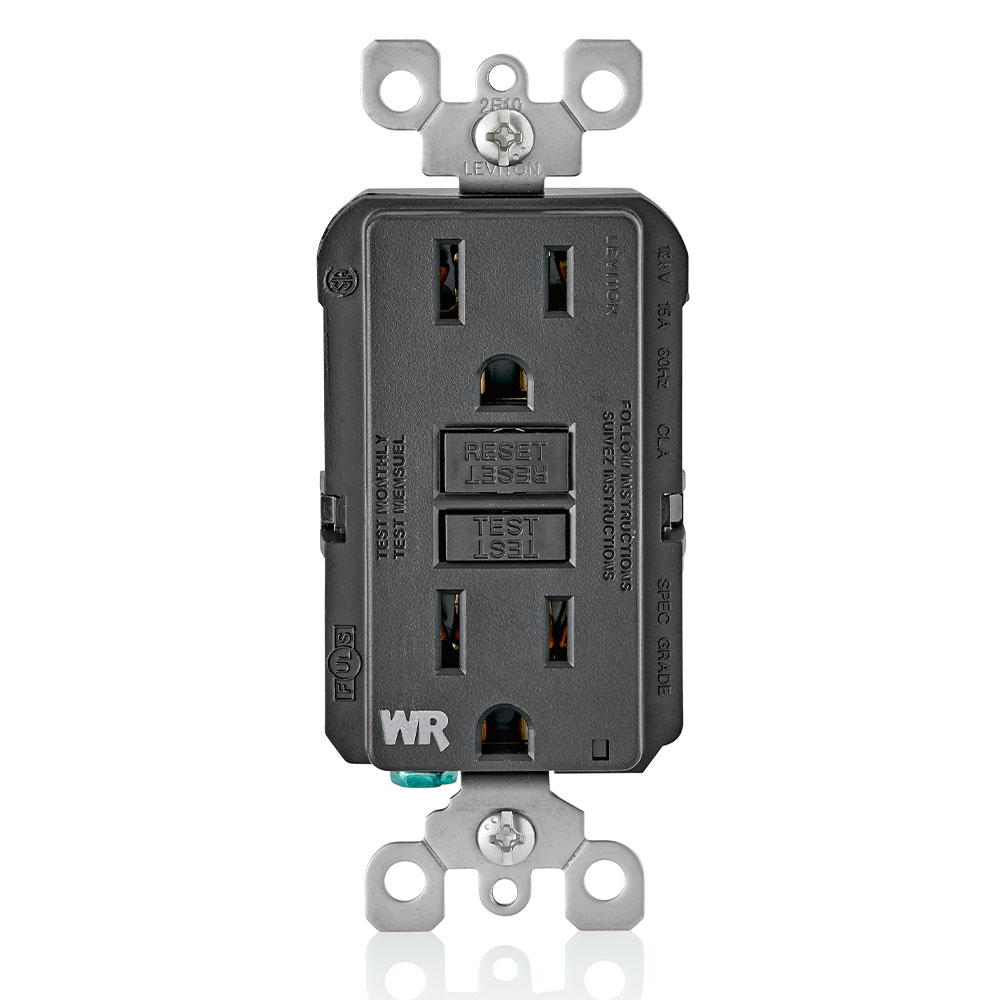

SmartlockPro® Slim® GFWR1-E Duplex Self-Test Weather Resistant GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Custom_Product_Images_Illustration
Leviton®
SmartlockPro® Slim® GFWR1-E Duplex Self-Test Weather Resistant GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
SKU1221967
MFGR #GFWR1-E
Your Cost: $21.92/ea
List: SmartlockPro® Slim® GFCI Receptacle, Duplex Self-Test Weather Resistant, 125 VAC, 15 A, 1 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Residential Grade, -35 to 66 deg C, Back/Side Wire Terminal, Polycarbonate/Polybutylene Terephthalate, Black, 4.21 in H x 1.69 in W x 1.32 in D Dimensions
SmartlockPro® Slim® GFCI Receptacle, Duplex Self-Test Weather Resistant, 125 VAC, 15 A, 1 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Residential Grade, -35 to 66 deg C, Back/Side Wire Terminal, Polycarbonate/Polybutylene Terephthalate, Black, 4.21 in H x 1.69 in W x 1.32 in D Dimensions
Application Residential Applications ARRA Compliant C Buy American Compliant C Catalog Number GFWR1-E Country of Origin CN Currency USD Dimensions 4.21 in H x 1.69 in W x 1.32 in D EU RoHS Indicator C Grade Commercial Gross Weight Per Pack 0.3200 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Height 5.0000 in Horsepower 1 Length 8.7500 in Material Polycarbonate NEMA Rating NEMA 5-15R Number Of Poles 2 Temperature Rating -35 to 66 Terminal Type Back/Side Wired Type Monochromatic Self-Test Weather-Resistant UNSPSC 39121633 UPC 11 07847770910 UPC 12 078477709108 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 Color Black Number of Wires 3 Voltage Rating 125 Residential Applications Provides continuous ground fault protection detects and trips on actual ground fault even when self-test is being conducted On initial power up, tests the GFCI within 3 sec Auto-monitoring exceeds the UL requirement Auto adapts and shifts to more frequent testing if potential problem is detected Status indicator light provides simple, intuitive feedback on power and protection st Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault Electronics are designed to minimize any false triggers Reduced depth makes it easier to install in any electrical box, even shallow ones Terminals allow for easy wiring options back and side wire capable Withstands high torque and resists wire pullout Standard bra
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Residential Applications |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | GFWR1-E |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 4.21 in H x 1.69 in W x 1.32 in D |
| EU RoHS Indicator | C |
| Grade | Commercial |
| Gross Weight Per Pack | 0.3200 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Height | 5.0000 in |
| Horsepower | 1 |
| Length | 8.7500 in |
| Material | Polycarbonate |
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Temperature Rating | -35 to 66 |
| Terminal Type | Back/Side Wired |
| Type | Monochromatic Self-Test Weather-Resistant |
| UNSPSC | 39121633 |
| UPC 11 | 07847770910 |
| UPC 12 | 078477709108 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 |
| Color | Black |
| Number of Wires | 3 |
| Voltage Rating | 125 |
| Residential Applications |
| Provides continuous ground fault protection detects and trips on actual ground fault even when self-test is being conducted |
| On initial power up, tests the GFCI within 3 sec |
| Auto-monitoring exceeds the UL requirement |
| Auto adapts and shifts to more frequent testing if potential problem is detected |
| Status indicator light provides simple, intuitive feedback on power and protection st |
| Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault |
| Electronics are designed to minimize any false triggers |
| Reduced depth makes it easier to install in any electrical box, even shallow ones |
| Terminals allow for easy wiring options back and side wire capable |
| Withstands high torque and resists wire pullout |
| Standard bra |
