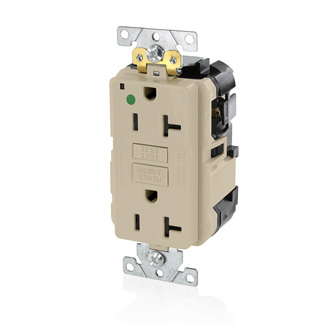

SmartlockPro® Lev-Lok® MGFN2-HGI Self-Test GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Custom_Product_Images_Illustration
SmartlockPro® Lev-Lok® MGFN2-HGI Self-Test GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
SKU910577
MFGR #MGFN2-HGI
Your Cost: $44.28/ea
The SmartlockPro Self-Test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Levitons patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro Self-Test GFCI is the smart choice in ground fault circuit interrupter protection.
The SmartlockPro Self-Test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Levitons patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro Self-Test GFCI is the smart choice in ground fault circuit interrupter protection.
Application Extra-Heavy Duty Hospital Grade ARRA Compliant C Buy American Compliant C Catalog Number MGFN2-HGI Country of Origin CN Currency USD Dimensions 4.05 in H x 1.74 in W x 1.46 in D EU RoHS Indicator C Grade Extra Heavy Duty/Hospital Gross Weight Per Pack 0.4000 lb Gross Weight per Pack Metric 0.18 Gross Weight UOM Metric kg Height 5.4370 in Height [Metric] 10.7950 cm Horsepower 1 hp Length 10.2500 in Length [Metric] 5.7150 cm Material Polycarbonate / PBT NEMA Rating 5-20R Number Of Poles 2 Standard UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498/943CSA C22.2 No. 42 144Federal Specification W-C-596 Temperature Rating -35C to +66C °C Terminal Type Back/Side Wired/Modular Type Self-test SmartLock Pro Slim GFCI UNSPSC 39121406 UPC 11 07847772442 UPC 12 078477724422 Width 2.00 in Width [Metric] 5.0800 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Ivory Number of Wires 3 Voltage Rating 125 V Extra-Heavy Duty Hospital Grade Lev-Lok Modular Terminals Patented bridge contact design provides individual sets of contacts for GFCI receptacle face and downstream receptacles, no power will be delivered to receptacle face if improperly wired (line load reversed) Improved immunity to high frequency noise reduces nuisance tripping Advanced electronics design provides superior resistance to electrical surges and over voltages Low profile design is easy to install in all electrical boxes Patented SmartlockPro® protection prevents resetting when ground fault protection has been lost All modules have a circuit ID label for ease of identification Solid brass locking pins for strong, secure connection between receptacle and wiring module Lev-Lok® modular terminals Dual function status indicator light provides simple, intuitive feedback on power and protection status as well as correct wiring Wiring clamp provides for back or side wiring of ground terminal Wraparound steel strap provides superior structural integrity, especially in hard-use environments Brass self-grounding clip is permanently staked on for secure and reliable performance Removable safety covers on feed through terminals provide added safety. Leviton patented reset lockout Tamper-resistant shutters (where stated). Slim profile provides 25% more room in the wall box. Improved strap design provides greater support, even with ears removed Back & side wire (external back wire clamps). Line terminal clamps initially held open to expedite first time wiring Self-grounding Extra-heavy duty UL 94-V0 flammability Galvanized steel strap Feed-through
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Extra-Heavy Duty Hospital Grade |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | MGFN2-HGI |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 4.05 in H x 1.74 in W x 1.46 in D |
| EU RoHS Indicator | C |
| Grade | Extra Heavy Duty/Hospital |
| Gross Weight Per Pack | 0.4000 lb |
| Gross Weight per Pack Metric | 0.18 |
| Gross Weight UOM Metric | kg |
| Height | 5.4370 in |
| Height [Metric] | 10.7950 cm |
| Horsepower | 1 hp |
| Length | 10.2500 in |
| Length [Metric] | 5.7150 cm |
| Material | Polycarbonate / PBT |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Standard | UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498/943CSA C22.2 No. 42 144Federal Specification W-C-596 |
| Temperature Rating | -35C to +66C °C |
| Terminal Type | Back/Side Wired/Modular |
| Type | Self-test SmartLock Pro Slim GFCI |
| UNSPSC | 39121406 |
| UPC 11 | 07847772442 |
| UPC 12 | 078477724422 |
| Width | 2.00 in |
| Width [Metric] | 5.0800 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Ivory |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Extra-Heavy Duty Hospital Grade |
| Lev-Lok Modular Terminals |
| Patented bridge contact design provides individual sets of contacts for GFCI receptacle face and downstream receptacles, no power will be delivered to receptacle face if improperly wired (line load reversed) |
| Improved immunity to high frequency noise reduces nuisance tripping |
| Advanced electronics design provides superior resistance to electrical surges and over voltages |
| Low profile design is easy to install in all electrical boxes |
| Patented SmartlockPro® protection prevents resetting when ground fault protection has been lost |
| All modules have a circuit ID label for ease of identification |
| Solid brass locking pins for strong, secure connection between receptacle and wiring module |
| Lev-Lok® modular terminals |
| Dual function status indicator light provides simple, intuitive feedback on power and protection status as well as correct wiring |
| Wiring clamp provides for back or side wiring of ground terminal |
| Wraparound steel strap provides superior structural integrity, especially in hard-use environments |
| Brass self-grounding clip is permanently staked on for secure and reliable performance |
| Removable safety covers on feed through terminals provide added safety. Leviton patented reset lockout |
| Tamper-resistant shutters (where stated). Slim profile provides 25% more room in the wall box. Improved strap design provides greater support, even with ears removed |
| Back & side wire (external back wire clamps). Line terminal clamps initially held open to expedite first time wiring |
| Self-grounding |
| Extra-heavy duty |
| UL 94-V0 flammability |
| Galvanized steel strap |
| Feed-through |
