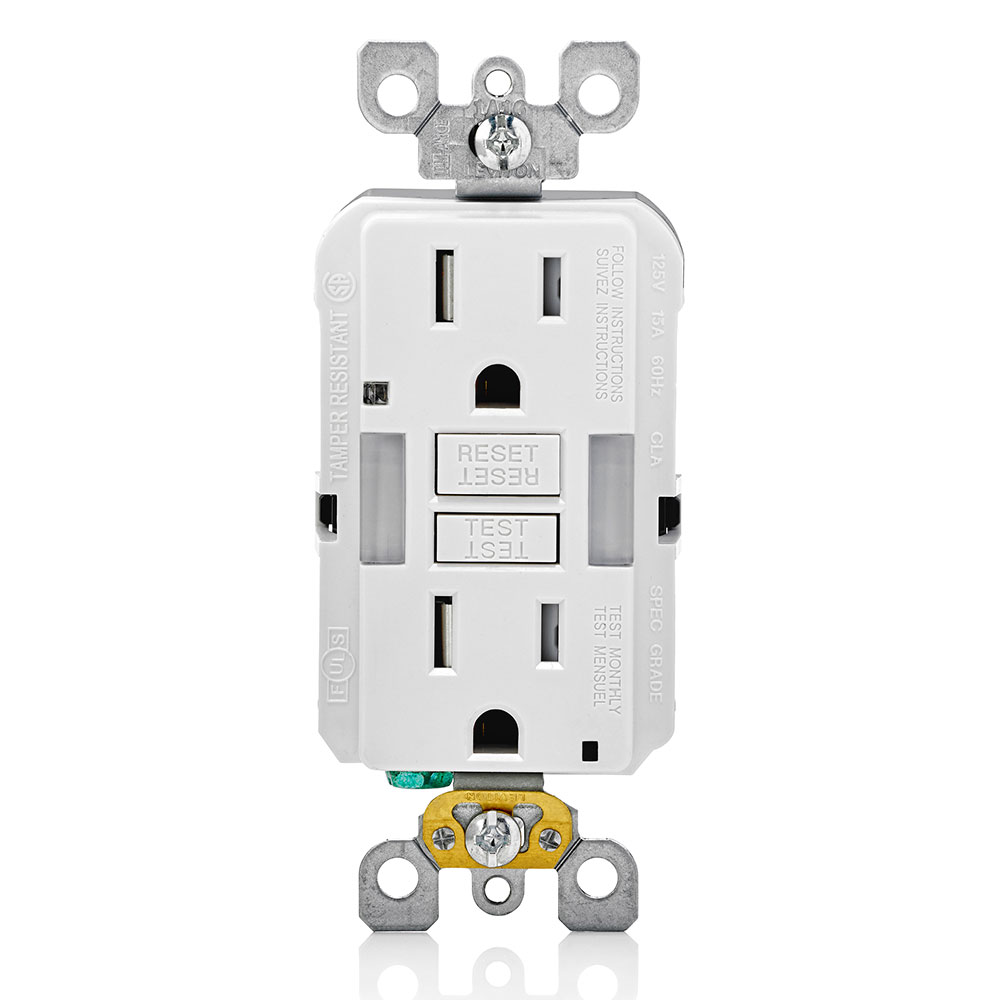

SmartlockPro® GFNL1-W Self-Test GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White

GFCI Receptacles
976249 MFG #: GFNL1-W
Leviton®
33.40000 / ea
The Self-test SmartlockPro Slim GFCI/Guide Light is a great way to add an extra element of safety when its dark without losing outlet space in kitchens, bathrooms, laundry rooms and hospitality guest suites. Instead of needing to plug in a nightlight and take up an outlet space, the device offers dual LED guide lights that turn ON and OFF automatically based on light levels and uses only 1W of electricity. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Levitons patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The Self-test SmartlockPro Slim GFCI/Guide Light is the smart choice in ground fault circuit interrupter protection.
QTY
  • Applications
  • Features
Commercial/Industrial
TAMPER RESISTANT
Sensor provides automatic ON/OFF based on ambient lighting
Dual lens provides visible light with a variety of plugs or transformers
Custom designed lenses with edge-mounted LEDs improve light dispersion
Is energy-efficient, uses approx 1W of electricity - no bulbs to replace
Saves space by eliminating the need to use an outlet for a plug-in night light
Provides continuous ground fault protection - detects and trips on actual ground fault even when self-test is being conducted
On initial power up, tests the GFCI within 3 seconds. Auto-monitoring exceeds the UL requirement
Auto adapts and shifts to more frequent testing if potential problem is detected
Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
Electronics are designed to minimize any false triggers. Reduced depth makes it easier to install in any electrical box, even shallow ones
Terminals allow for easy wiring options - back and side wire capable. External back wire clamps provide visual indication of proper wire seating
Withstands high torque and resists wire pullout. Standard brass self-grounding clip
Trip threshold meets or exceeds UL requirements for tripping time. Improved immunity to high-frequency noise reduces nuisance tripping
Advanced electronics design provides superior resistance to electrical surges and over-voltages
Compatible with all Decora devices and wallplates; available in select Decora colors
Tamper resistant
1250 VAC dielectric strength
UL 94-V2 flammability, Galvanized steel strap, back and side wire connection
14 to 10 AWG
