Leviton®

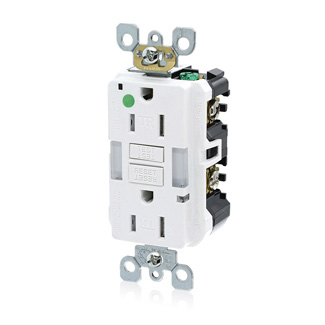

SmartlockPro® GFNL1-HGW Slim Guide Light Self-Test GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Custom_Product_Images_Illustration
Leviton®
SmartlockPro® GFNL1-HGW Slim Guide Light Self-Test GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
SKU893520
MFGR #GFNL1-HGW
Your Cost: $46.04/ea
List: Peace of mind, all the time. The SmartlockPro self-test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton's patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro self-test GFCI is the smart choice in ground fault circuit interrupter protection.
Peace of mind, all the time. The SmartlockPro self-test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton's patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro self-test GFCI is the smart choice in ground fault circuit interrupter protection.
Application Hospital ARRA Compliant C Buy American Compliant C Catalog Number GFNL1-HGW Cord Diameter 5-15R Country of Origin CN Currency USD Dimensions 4.21 in H x 1.68 in W x 1.4 in D Enclosure White EU RoHS Indicator C Frequency Rating 2 Grade Hospital Gross Weight Per Pack 0.3400 lb Gross Weight per Pack Metric 0.15 Gross Weight UOM Metric kg Height 5.0000 in Height [Metric] 10.7950 cm Horsepower 1 hp Length 8.7500 in Length [Metric] 5.7150 cm Material Polycarbonate / PBT NEMA Rating 5-15R Number Of Poles 2 Replaced Catalog Number X7592-HGW Series Self-test SmartLock Pro Slim GFCI Standard UL, CSA, NOM-ANCE Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA CertifiedNOM-ANCE Sub Brand SmartlockPro® Temperature Rating -35C to +66C °C Terminal Type Back/Side Wired Type Self-test SmartLock Pro Slim GFCI UNSPSC 39121633 UPC 11 07847772369 UPC 12 078477723692 Width 1.69 in Width [Metric] 4.2875 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 15 A Color White Number of Wires 3 Voltage Rating 125 V Hospital Guidelight Patented bridge contact design provides individual sets of contacts for GFCI receptacle face and downstream receptacles, no power will be delivered to receptacle face if improperly wired (line load reversed) Improved immunity to high frequency noise reduces nuisance tripping Advanced electronics design provides superior resistance to electrical surges and over voltages Low profile design is easy to install in all electrical boxes Patented SmartlockPro® protection prevents resetting when ground fault protection has been lost Sensor provides automatic ON/OFF illumination based on ambient lighting Dual lens provides visible light with a variety of plugs or transformers Custom designed lenses with edge mounted LED's improve light dispersion Saves space by eliminating the need to use an outlet for a plug-in nightlight Power indication LED, white to match guide light LED's
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Hospital |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | GFNL1-HGW |
| Cord Diameter | 5-15R |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 4.21 in H x 1.68 in W x 1.4 in D |
| Enclosure | White |
| EU RoHS Indicator | C |
| Frequency Rating | 2 |
| Grade | Hospital |
| Gross Weight Per Pack | 0.3400 lb |
| Gross Weight per Pack Metric | 0.15 |
| Gross Weight UOM Metric | kg |
| Height | 5.0000 in |
| Height [Metric] | 10.7950 cm |
| Horsepower | 1 hp |
| Length | 8.7500 in |
| Length [Metric] | 5.7150 cm |
| Material | Polycarbonate / PBT |
| NEMA Rating | 5-15R |
| Number Of Poles | 2 |
| Replaced Catalog Number | X7592-HGW |
| Series | Self-test SmartLock Pro Slim GFCI |
| Standard | UL, CSA, NOM-ANCE |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA CertifiedNOM-ANCE |
| Sub Brand | SmartlockPro® |
| Temperature Rating | -35C to +66C °C |
| Terminal Type | Back/Side Wired |
| Type | Self-test SmartLock Pro Slim GFCI |
| UNSPSC | 39121633 |
| UPC 11 | 07847772369 |
| UPC 12 | 078477723692 |
| Width | 1.69 in |
| Width [Metric] | 4.2875 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 15 A |
| Color | White |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Hospital |
| Guidelight |
| Patented bridge contact design provides individual sets of contacts for GFCI receptacle face and downstream receptacles, no power will be delivered to receptacle face if improperly wired (line load reversed) |
| Improved immunity to high frequency noise reduces nuisance tripping |
| Advanced electronics design provides superior resistance to electrical surges and over voltages |
| Low profile design is easy to install in all electrical boxes |
| Patented SmartlockPro® protection prevents resetting when ground fault protection has been lost |
| Sensor provides automatic ON/OFF illumination based on ambient lighting |
| Dual lens provides visible light with a variety of plugs or transformers |
| Custom designed lenses with edge mounted LED's improve light dispersion |
| Saves space by eliminating the need to use an outlet for a plug-in nightlight |
| Power indication LED, white to match guide light LED's |
