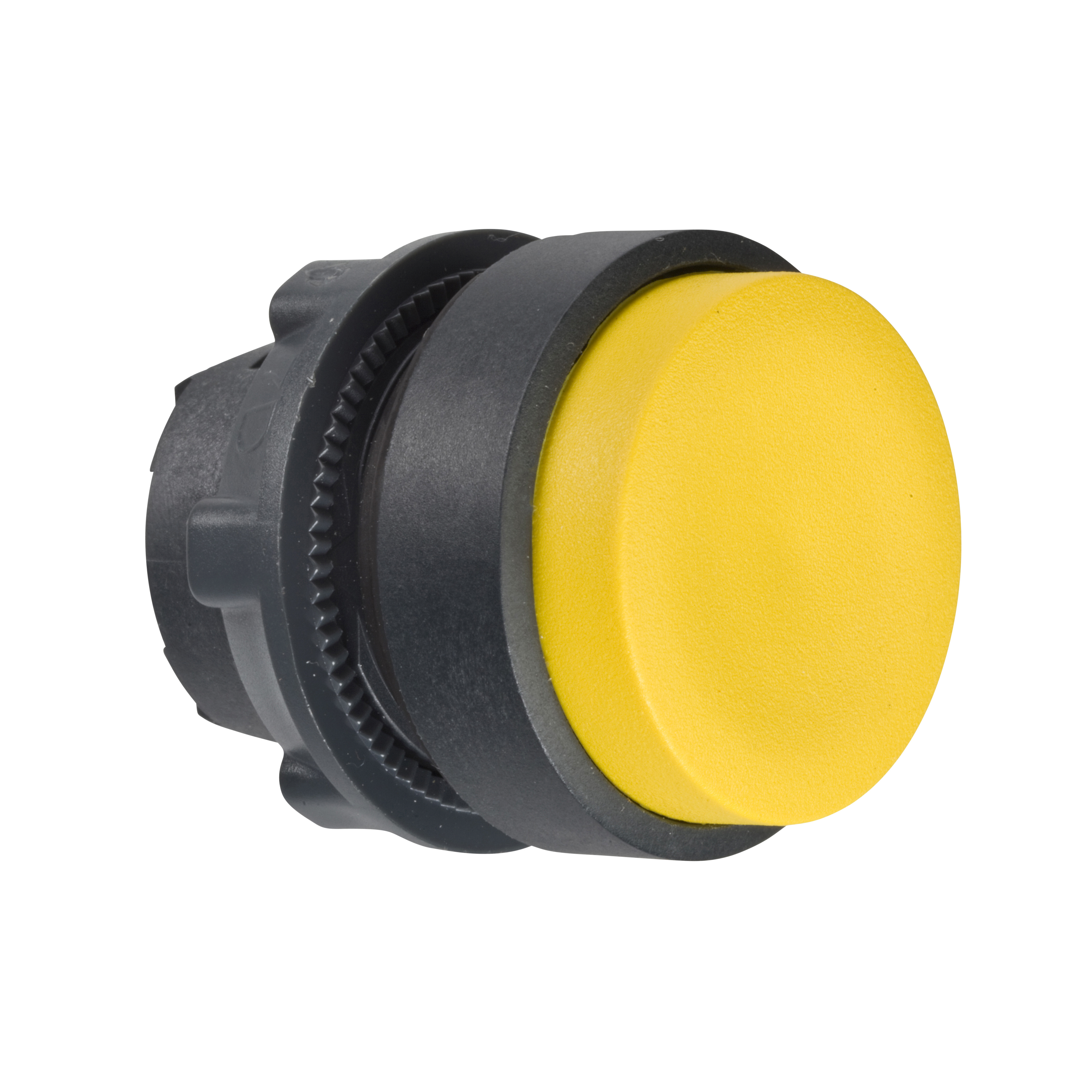

Schneider Electric ZB5 Non-Illuminated Projecting Pushbutton Head, 22 mm, Round, Yellow
Custom_Product_Images_Illustration
Schneider Electric ZB5 Non-Illuminated Projecting Pushbutton Head, 22 mm, Round, Yellow
SKU680925
MFGR #ZB5AL5
Call For Price
List: Schneider Electric ZB5AL5 NON-ILLUM EXTENDED MOMENTARY YELLOW,22 mm,push-button,Harmony XB5,IP 65,NEMA 1/2/3/4/4X/13,Standard Button Extended,UL Listed File Number E164353 CCN NKCR - CSA Certified File Number LR44087 Class 321103 - CE Marked,head for non-illuminated push-button,head for non-illuminated push-button,plastic,push-button,spring return,yellow
Schneider Electric ZB5AL5 NON-ILLUM EXTENDED MOMENTARY YELLOW,22 mm,push-button,Harmony XB5,IP 65,NEMA 1/2/3/4/4X/13,Standard Button Extended,UL Listed File Number E164353 CCN NKCR - CSA Certified File Number LR44087 Class 321103 - CE Marked,head for non-illuminated push-button,head for non-illuminated push-button,plastic,push-button,spring return,yellow
Action SPRING RETURN Actuator Yellow projecting, unmarked; spring return Alternate Catalog Number ZB5AL5 Application PUSH-BUTTON ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number ZB5AL5 Color Yellow Country of Origin FR Currency USD Enclosure NEMA 13-NEMA 4X Environmental Conditions IP 65 EU RoHS Indicator Y Gross Volume Per Pack 5.29 Gross Volume per Pack Metric 86.69 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.1800 lb Gross Weight per Pack Metric 18.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8538908180 Height 3.2000 in Height [Metric] 3.2000 cm Indicator YELLOW Item Group 22467 Legend UNMARKED Length 4.6000 in Length [Metric] 4.6000 cm Manufacturer Schneider Electric Material Plastic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=655238&lang=en-us Model head for non-illuminated push-button Operating Temperature -40-70 A°C Returnable Y Series ZB5 Shape Round Size 22 mm Stock Status NONSTOCK Sub Brand ZB5 Type Extended Non-Illuminated Projecting Standard UNSPSC 39122216 UPC 11 78590138735 UPC 12 785901387350 Warranty Description Contractual Warranty:18 months Width 4.0000 in Width [Metric] 4.0000 cm PUSH-BUTTON HEAD FOR NON-ILLUMINATED PUSH-BUTTON,PLASTIC Spring return operator NEMA 1/2/3/4/4X/13 enclosure rating IP65/IP66/IP67/IP69 conforming to IEC 60529/IP69K degree of protection -40 to 158 deg F operating temperature 10000000 cycles mechanical durability -40 to 158 deg F operating temperature 10000000 cycles mechanical durability 5 gn (f = 2 to 500 Hz) conforming to IEC 60068-2-6 vibration resistance and 30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27 shock resistance
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | SPRING RETURN |
| Actuator | Yellow projecting, unmarked; spring return |
| Alternate Catalog Number | ZB5AL5 |
| Application | PUSH-BUTTON |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | ZB5AL5 |
| Color | Yellow |
| Country of Origin | FR |
| Currency | USD |
| Enclosure | NEMA 13-NEMA 4X |
| Environmental Conditions | IP 65 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 5.29 |
| Gross Volume per Pack Metric | 86.69 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.1800 lb |
| Gross Weight per Pack Metric | 18.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8538908180 |
| Height | 3.2000 in |
| Height [Metric] | 3.2000 cm |
| Indicator | YELLOW |
| Item Group | 22467 |
| Legend | UNMARKED |
| Length | 4.6000 in |
| Length [Metric] | 4.6000 cm |
| Manufacturer | Schneider Electric |
| Material | Plastic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=655238&lang=en-us |
| Model | head for non-illuminated push-button |
| Operating Temperature | -40-70 A°C |
| Returnable | Y |
| Series | ZB5 |
| Shape | Round |
| Size | 22 mm |
| Stock Status | NONSTOCK |
| Sub Brand | ZB5 |
| Type | Extended Non-Illuminated Projecting Standard |
| UNSPSC | 39122216 |
| UPC 11 | 78590138735 |
| UPC 12 | 785901387350 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 4.0000 in |
| Width [Metric] | 4.0000 cm |
| PUSH-BUTTON |
| HEAD FOR NON-ILLUMINATED PUSH-BUTTON,PLASTIC |
| Spring return operator |
| NEMA 1/2/3/4/4X/13 enclosure rating |
| IP65/IP66/IP67/IP69 conforming to IEC 60529/IP69K degree of protection |
| -40 to 158 deg F operating temperature |
| 10000000 cycles mechanical durability |
| -40 to 158 deg F operating temperature |
| 10000000 cycles mechanical durability |
| 5 gn (f = 2 to 500 Hz) conforming to IEC 60068-2-6 vibration resistance and 30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27 shock resistance |
