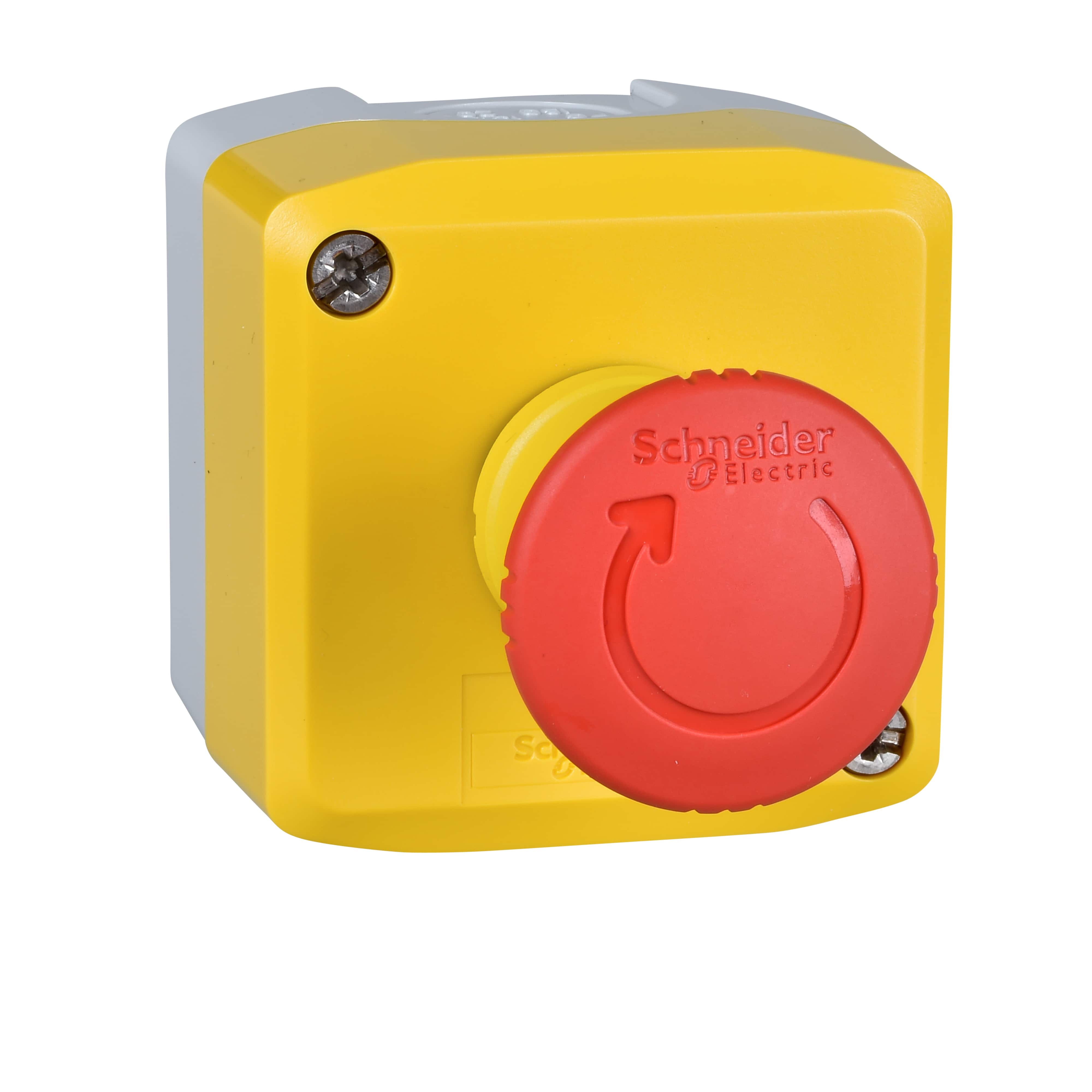

Schneider Electric XALK178F XALD Control Station, 600 VAC, 10 A, 2NC Contact, NEMA 13/4X/IP69/IP67/IP69K/IP66/IK03 NEMA Rating
Pilot Devices
791967
MFG #: XALK178F
Square D™
260.46000
/ ea
Schneider Electric, XALK178F, XALD Control Station, Series: XALD, 600 VAC, 10 A, 2NC Contact Configuration, Slow Break/Turn to Release Contact Mode, Mushroom Head Operator, Legend: EMERGENCY STOP/SWITCHING OFF, Bezel/Housing: Plastic, Push Button Actuator, Screw Clamp Connection, NEMA 13/4X/IP69/IP67/IP69K/IP66/IK03 NEMA Rating, -40 to 70 deg C Operating, Polycarbonate, Light Gray/Red/Yellow
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=17378395360Den&ext=webp(360 Degree View URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_9TXOCVL4GMIUW1PN.pdf(Service Manual URL)
- Service Manual URL - 11003_F9S61MOZLYWRJ2Q5.pdf(Service Manual URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Tech Drawing URL - 11003_IT8NJ0PFAS2DCUO9.dxf(Tech Drawing URL)
- Spec Sheet URL - 11003_DMV20JFIRG35AYWP.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_Q9SACJF256XRDMHW.dxf(Tech Drawing URL)
- Applications
- Features
| For emergency stop/switching off, industry food and beverages, chemical industry, paper mill, marine, service sector and infrastructure energy distribution panel builders, food and beverages and car washes |
| These control stations are suitable for most common functions start, stop, start-stop, emergency stop |
| XALK complete stations for emergency stop Function (1 mushroom head pushbutton) stations for custom assembly in order to meet specific requirements |
| Empty enclosures with 1, 2 , 3, 4 or 5 cutouts for user installing Harmony™ XB5 operators |
| IP65, NEMA 4/4x dust and damp proofing |
| Protected LED illuminated lens units |
| Low load electrical contact |
| Screw clamp connection or use PCB connections with pins for printed circuit |
| Designed for industry and the service sector, this range of control stations combines simplicity of setup with compact size and flexibility |
| It is ideal for applications requiring good-resistance to chemical agents and/or double electrical insulation |
