Square D™

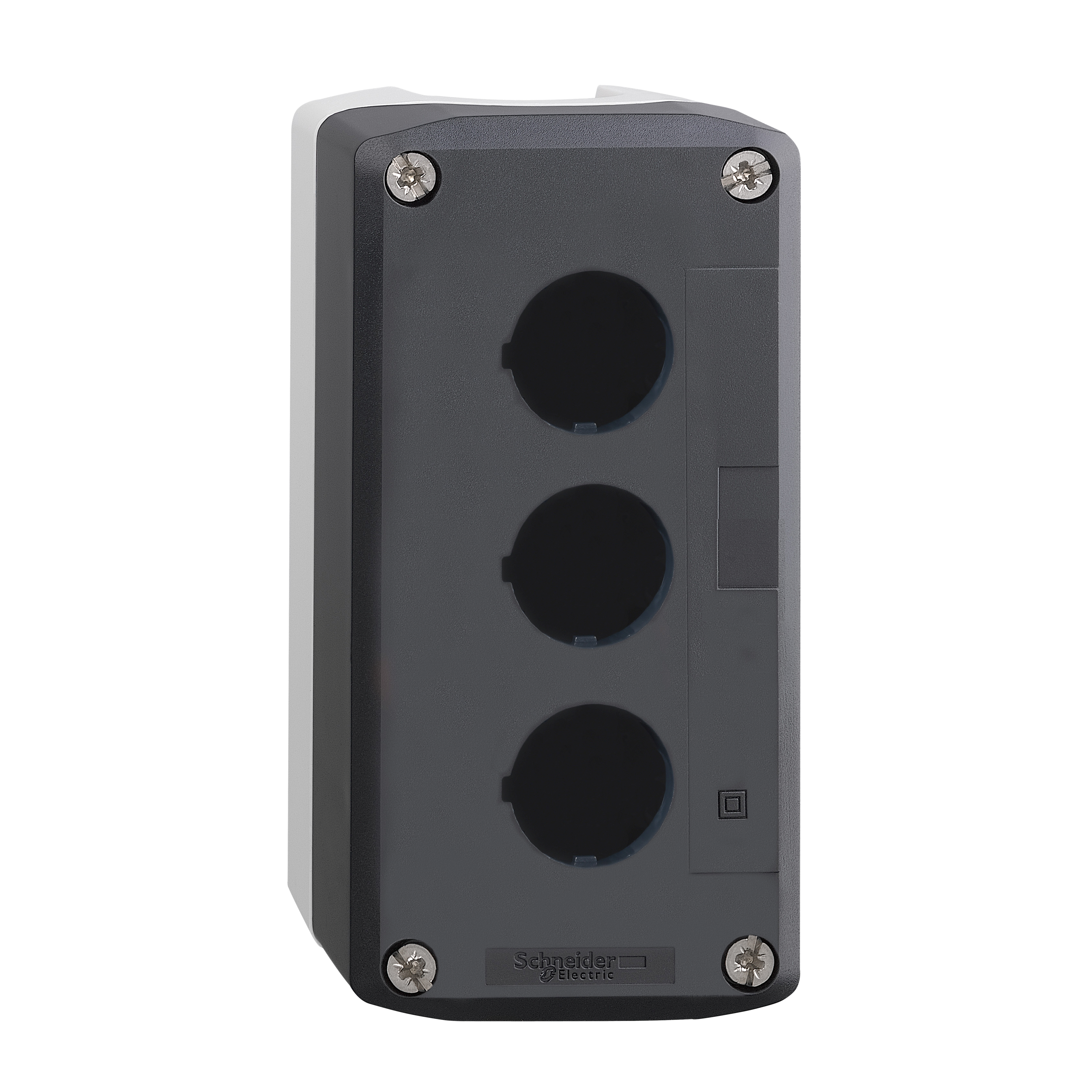

Schneider Electric XALD03H7 XALD Pushbutton Enclosure, For Use With XB5 22 mm Control and Signaling Units, Polycarbonate
Custom_Product_Images_Illustration
Square D™
Schneider Electric XALD03H7 XALD Pushbutton Enclosure, For Use With XB5 22 mm Control and Signaling Units, Polycarbonate
SKU650431
MFGR #XALD03H7
Call For Price
List: Schneider Electric XALD03H7 SPECIAL PB ENCLOSURE,-13...158 F (-25...70 C),3 cut-outs,Empty control station,For XB5 control and signalling units,Harmony,NEMA 4X/13,UL, CSA, EN/IEC
Schneider Electric XALD03H7 SPECIAL PB ENCLOSURE,-13...158 F (-25...70 C),3 cut-outs,Empty control station,For XB5 control and signalling units,Harmony,NEMA 4X/13,UL, CSA, EN/IEC
Alternate Catalog Number XALD03H7 Application For XB5 Ø 22 mm control and signalling units ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number XALD03H7 Color Light Gray Country of Origin MX Currency USD Enclosure NEMA 4X/13 EU RoHS Indicator Y Gross Weight Per Pack 2.2500 lb Gross Weight per Pack Metric 234.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8538908180 Height 7.7000 in Height [Metric] 7.0000 cm Item Group 22475 Length 13.6000 in Length [Metric] 14.0000 cm Manufacturer Schneider Electric Material Polycarbonate Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=673146&lang=en-us Mounting REAR MOUNTING-FRONT MOUNTING Mounting Type Front/Rear NEMA Rating NEMA 4X/13/IP69/IP67/IP66/IP69K Operating Temperature -13...158 F (-25...70 C) Panel Size 5.27 in H x 2.68 in W x 2 in D Returnable Y Series XALD Size 3 CUT-OUTS Standard UL, CSA, EN/IEC Standards EN/IEC 60947-1, 60947-5-4, 60947-5-5, 60947-5-1, UL 508, CSA C22.2 No. 14 Stock Status NONSTOCK Sub Brand HARMONY Substitute Product Catalog Number ZB5AZ905 Temperature Rating -13 to 158 °F Type Empty control station UNSPSC 39122216 Warranty Description Contractual Warranty:18 months Width 7.0000 in Width [Metric] 7.8000 cm For XB5 Ø 22 mm control and signalling units EMPTY CONTROL STATION Dark gray RAL 7016 cover and light gray RAL 7035 of base of enclosure 2 knockout for cable entry and 14 mm clamping capacity 2 knockouts for PG 13 cable gland and ISO M20 and 12 mm clamping capacity NEMA 13/4X and IP69/67/66/69K enclosure rating Rear and front mounting -40 to 70 deg C operating temperature
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | XALD03H7 |
| Application | For XB5 Ø 22 mm control and signalling units |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | XALD03H7 |
| Color | Light Gray |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 4X/13 |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 2.2500 lb |
| Gross Weight per Pack Metric | 234.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8538908180 |
| Height | 7.7000 in |
| Height [Metric] | 7.0000 cm |
| Item Group | 22475 |
| Length | 13.6000 in |
| Length [Metric] | 14.0000 cm |
| Manufacturer | Schneider Electric |
| Material | Polycarbonate |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=673146&lang=en-us |
| Mounting | REAR MOUNTING-FRONT MOUNTING |
| Mounting Type | Front/Rear |
| NEMA Rating | NEMA 4X/13/IP69/IP67/IP66/IP69K |
| Operating Temperature | -13...158 F (-25...70 C) |
| Panel Size | 5.27 in H x 2.68 in W x 2 in D |
| Returnable | Y |
| Series | XALD |
| Size | 3 CUT-OUTS |
| Standard | UL, CSA, EN/IEC |
| Standards | EN/IEC 60947-1, 60947-5-4, 60947-5-5, 60947-5-1, UL 508, CSA C22.2 No. 14 |
| Stock Status | NONSTOCK |
| Sub Brand | HARMONY |
| Substitute Product Catalog Number | ZB5AZ905 |
| Temperature Rating | -13 to 158 °F |
| Type | Empty control station |
| UNSPSC | 39122216 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 7.0000 in |
| Width [Metric] | 7.8000 cm |
| For XB5 Ø 22 mm control and signalling units |
| EMPTY CONTROL STATION |
| Dark gray RAL 7016 cover and light gray RAL 7035 of base of enclosure |
| 2 knockout for cable entry and 14 mm clamping capacity |
| 2 knockouts for PG 13 cable gland and ISO M20 and 12 mm clamping capacity |
| NEMA 13/4X and IP69/67/66/69K enclosure rating |
| Rear and front mounting |
| -40 to 70 deg C operating temperature |
