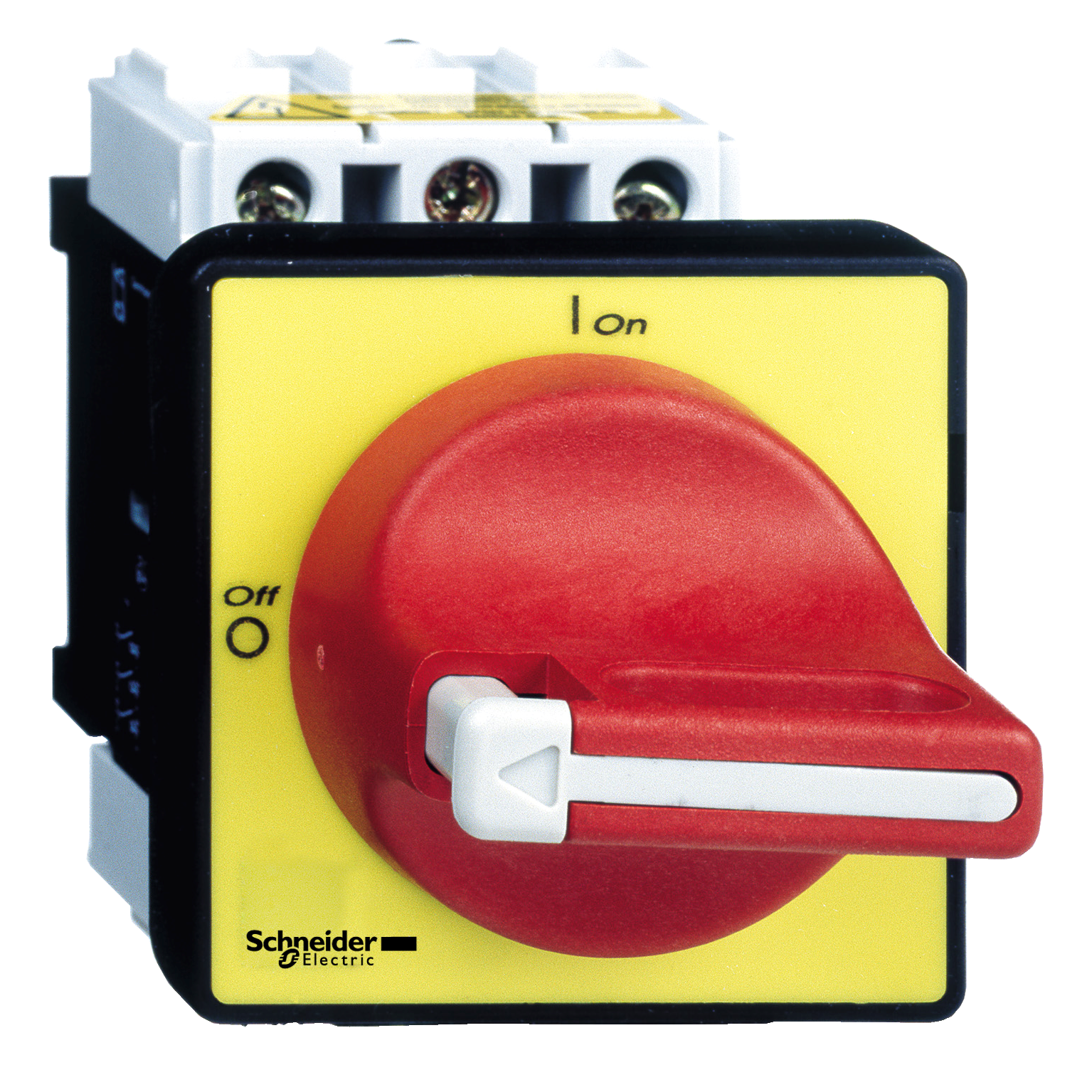

Schneider Electric TeSys Vario VCF2 Emergency Stop High Performance Switch Disconnector, 690 VAC, 15 KW, 40 A, 3NO Contact Form
Custom_Product_Images_Illustration
Schneider Electric TeSys Vario VCF2 Emergency Stop High Performance Switch Disconnector, 690 VAC, 15 KW, 40 A, 3NO Contact Form
SKU99302
MFGR #VCF2
Call For Price
List: Schneider Electric VCF2 25AMP SWITCH KIT W/4HOLE MTG RED/YELLOW OPER.,100000 cycles AC-21-30000 cycles DC-1...5,40 A,60 x 60 mm,690 V AC 50/60 Hz,IP65-IP20 conforming to IEC 60529,Open,TeSys,UL Listed File E164864 CCN NLRV - CSA Certified File LR81630 Class 3211 05 - CE Marked,by 4 screws for handle,handle mounting on door-switch mounting on door,emergency stop switch disconnector,main switch disconnector,main switch disconnector
Schneider Electric VCF2 25AMP SWITCH KIT W/4HOLE MTG RED/YELLOW OPER.,100000 cycles AC-21-30000 cycles DC-1...5,40 A,60 x 60 mm,690 V AC 50/60 Hz,IP65-IP20 conforming to IEC 60529,Open,TeSys,UL Listed File E164864 CCN NLRV - CSA Certified File LR81630 Class 3211 05 - CE Marked,by 4 screws for handle,handle mounting on door-switch mounting on door,emergency stop switch disconnector,main switch disconnector,main switch disconnector
Actuator Red;Rotary handle Actuator Type Rotary Handle Alternate Catalog Number VCF2 Amperage Rating 40 A Application MAIN SWITCH DISCONNECTOR ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number VCF2 Color Yellow/Red Handle Contact Configuration 3 NO Contact Form 3NO Country of Origin CZ Currency USD Enclosure IP65-IP20 CONFORMING TO IEC 60529 Enclosure Type IP20/IP65 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 49.10 Gross Volume per Pack Metric 804.60 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 2.2300 lb Gross Weight per Pack Metric 219.21 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509025 Item Group 21730 Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=643524&lang=en-us Mounting BY 4 SCREWS HANDLE,HANDLE DOOR-SWITCH DOOR Mounting Type Direct Number Of Poles 3 Returnable Y Standard 960 A°C IEC 60695-2-1,IEC 60947-3,IP20 IEC 60529-IP65,UL-CCC-GL-CSA Standards IEC 60947-3RoHS Compliant Stock Status NONSTOCK Sub Brand VCF;TeSys VARIO Temperature Rating -4 to 122 °F Terminal Type Screw/Clamp Type Emergency Stop High Performance UNSPSC 39122233 Warranty Description Contractual Warranty:18 months
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Actuator | Red;Rotary handle |
| Actuator Type | Rotary Handle |
| Alternate Catalog Number | VCF2 |
| Amperage Rating | 40 A |
| Application | MAIN SWITCH DISCONNECTOR |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | VCF2 |
| Color | Yellow/Red Handle |
| Contact Configuration | 3 NO |
| Contact Form | 3NO |
| Country of Origin | CZ |
| Currency | USD |
| Enclosure | IP65-IP20 CONFORMING TO IEC 60529 |
| Enclosure Type | IP20/IP65 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 49.10 |
| Gross Volume per Pack Metric | 804.60 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 2.2300 lb |
| Gross Weight per Pack Metric | 219.21 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509025 |
| Item Group | 21730 |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=643524&lang=en-us |
| Mounting | BY 4 SCREWS HANDLE,HANDLE DOOR-SWITCH DOOR |
| Mounting Type | Direct |
| Number Of Poles | 3 |
| Returnable | Y |
| Standard | 960 A°C IEC 60695-2-1,IEC 60947-3,IP20 IEC 60529-IP65,UL-CCC-GL-CSA |
| Standards | IEC 60947-3RoHS Compliant |
| Stock Status | NONSTOCK |
| Sub Brand | VCF;TeSys VARIO |
| Temperature Rating | -4 to 122 °F |
| Terminal Type | Screw/Clamp |
| Type | Emergency Stop High Performance |
| UNSPSC | 39122233 |
| Warranty Description | Contractual Warranty:18 months |
