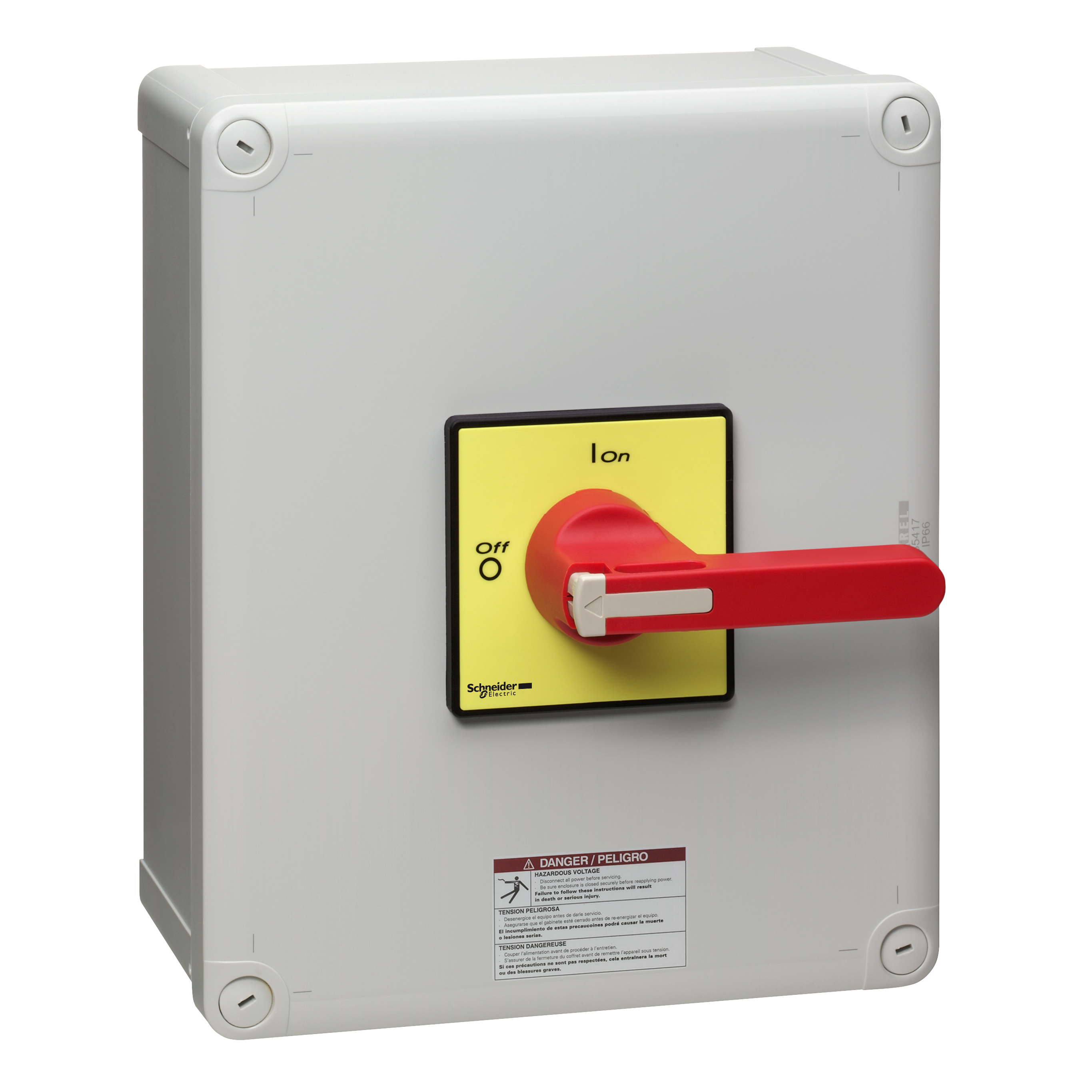

Schneider Electric TeSys™ Vario™ VC5GUN Emergency Stop Enclosed High Performance Standard Disconnect Switch, 690 VAC/VDC, 100 A, 3 Poles
Custom_Product_Images_Illustration
Schneider Electric TeSys™ Vario™ VC5GUN Emergency Stop Enclosed High Performance Standard Disconnect Switch, 690 VAC/VDC, 100 A, 3 Poles
SKU628626
MFGR #VC5GUN
Call For Price
List: Schneider Electric TeSys™ Vario™ Disconnect Switch, Emergency Stop Enclosed High Performance Standard, 690 VAC/VDC, 100 A, 50/60 Hz Frequency, 3 Pole, 10 kA Short Circuit, Padlockable Rotary Handle Actuator, NEMA 1/12/IP20/IP55 Enclosure, Screw Clamp Terminal, -4 to 122 deg F, 3.54 in W x 3.54 in D x 4.92 in H Dimensions, PVC, Red/Yellow
Schneider Electric TeSys™ Vario™ Disconnect Switch, Emergency Stop Enclosed High Performance Standard, 690 VAC/VDC, 100 A, 50/60 Hz Frequency, 3 Pole, 10 kA Short Circuit, Padlockable Rotary Handle Actuator, NEMA 1/12/IP20/IP55 Enclosure, Screw Clamp Terminal, -4 to 122 deg F, 3.54 in W x 3.54 in D x 4.92 in H Dimensions, PVC, Red/Yellow
Actuator Red;Rotary handle Alternate Catalog Number VC5GUN Application For local starting or stopping motors ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number VC5GUN Connection screw clamp terminals 95-95 mm² solid - with cable end; screw clamp terminals 70-70 mm² flexible Country of Origin CZ Currency USD Environmental Conditions STANDARD ENVIRONMENT EU RoHS Indicator Y Gross Volume Per Pack 904.23 Gross Volume per Pack Metric 14817.62 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0287 lb Gross Weight per Pack Metric 3.12 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509065 Height 21.2000 in Height [Metric] 30.0000 cm Interrupt Rating 1 kA Item Group 21730 Length 30.0000 in Length [Metric] 30.0000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61553345&lang=en-us Number Of Poles 3 Returnable Y Size 90 x 90 mm Standard 960 °C IEC 60595-2-1 Stock Status NONSTOCK Type Enclosed emergency stop switch disconnector UNSPSC 39122233 UPC 11 78590168055 UPC 12 785901680550 Warranty Description Contractual Warranty:18 months Width 25.3000 in Width [Metric] 20.5000 cm For local starting or stopping motors 1 to 3 padlocks 4-8 mm;High performance Vario™ rotary manual motor control switches from 12 to 175 A Suitable for on-load making and breaking of resistive or mixed resistive and inductive circuits Can be used for motors in utilization categories AC-3 and DC-3 Meets UL508 requirements as open manual motor controllers For on-load making and breaking of resistive or mixed resistive and inductive circuits where frequent operation is required Fixed on the front panel or DIN rail mount Local motor control 25 hp at 240 VAC, 50 hp at 480/600 VAC power rating 30000 cycles DC-1 to 5, 30000 cycles AC-21 operating cycles
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Red;Rotary handle |
| Alternate Catalog Number | VC5GUN |
| Application | For local starting or stopping motors |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | VC5GUN |
| Connection | screw clamp terminals 95-95 mm² solid - with cable end; screw clamp terminals 70-70 mm² flexible |
| Country of Origin | CZ |
| Currency | USD |
| Environmental Conditions | STANDARD ENVIRONMENT |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 904.23 |
| Gross Volume per Pack Metric | 14817.62 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0287 lb |
| Gross Weight per Pack Metric | 3.12 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509065 |
| Height | 21.2000 in |
| Height [Metric] | 30.0000 cm |
| Interrupt Rating | 1 kA |
| Item Group | 21730 |
| Length | 30.0000 in |
| Length [Metric] | 30.0000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61553345&lang=en-us |
| Number Of Poles | 3 |
| Returnable | Y |
| Size | 90 x 90 mm |
| Standard | 960 °C IEC 60595-2-1 |
| Stock Status | NONSTOCK |
| Type | Enclosed emergency stop switch disconnector |
| UNSPSC | 39122233 |
| UPC 11 | 78590168055 |
| UPC 12 | 785901680550 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 25.3000 in |
| Width [Metric] | 20.5000 cm |
| For local starting or stopping motors |
| 1 to 3 padlocks 4-8 mm;High performance |
| Vario™ rotary manual motor control switches from 12 to 175 A |
| Suitable for on-load making and breaking of resistive or mixed resistive and inductive circuits |
| Can be used for motors in utilization categories AC-3 and DC-3 |
| Meets UL508 requirements as open manual motor controllers |
| For on-load making and breaking of resistive or mixed resistive and inductive circuits where frequent operation is required |
| Fixed on the front panel or DIN rail mount |
| Local motor control |
| 25 hp at 240 VAC, 50 hp at 480/600 VAC power rating |
| 30000 cycles DC-1 to 5, 30000 cycles AC-21 operating cycles |
