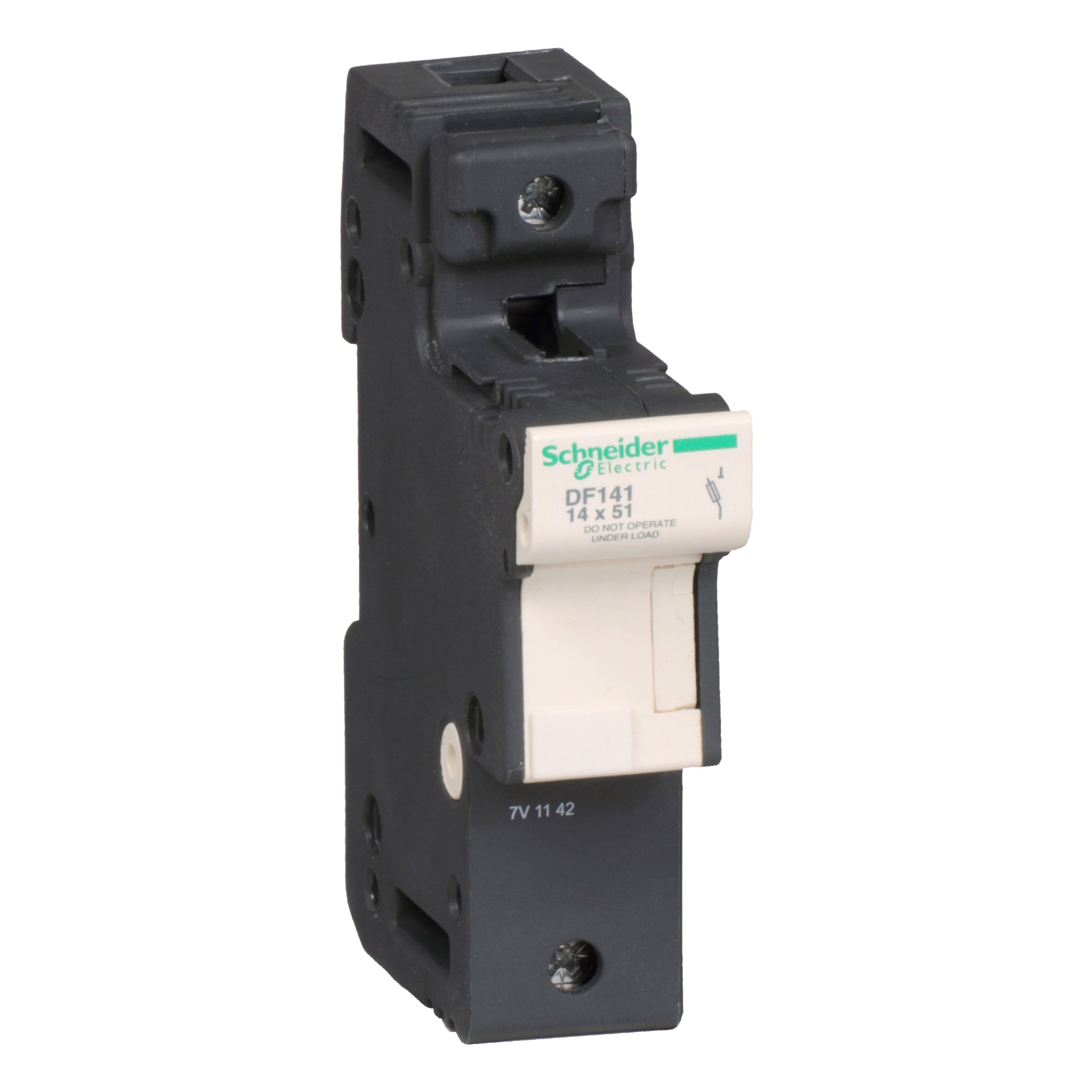

Schneider Electric TeSys® DF141 Fuse Holder, 600 V, 50 A, 1 Poles
UL Class Power Fuse Holders
1377812
MFG #: DF141
Square D™
42.72000
/ ea
Schneider Electric TeSys® Fuse Holder, 600 V, 50 A, 1 Pole, Fuse Holder Code: DF14, Screw Clamp Terminal, DIN Rail Mount, 51 mm Fuse Length, 14 mm Fuse Dia, -20 to 60 deg C, For Use With: Model DF2EA, DF2EN Fuse Cartridge, 1.04 in W x 3.01 in D x 4.36 in H
- Brochure URL - 11003_HTUJC3SRKP8EDY1N.pdf(Brochure URL)
- Brochure URL - 115967977b38aa63fd29e8e8024eb8003e40dffe.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=MCADPP0003420_2D-right.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_7BVWSIXK2UTF1GD3.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_GTQU8NV73Z5S6BA1.pdf(Service Manual URL)
- Service Manual URL - 11003_L32VKXAS5TUQ8EDN.pdf(Service Manual URL)
- Spec Sheet URL - 11003_UZ3962GHK8MRODPF.pdf(Spec Sheet URL)
- Features
| Compact size helps to reduce the overall size of the installation |
| Ergonomic handle for easier opening |
| Version for class CC fuses |
| Cylindrical cartridge fuses - 8 x 32, 10 x 38, 14 x 51 and 22 x 58 up to 690 V, from 25 to 125 A |
| LED blown fuse indicator |
| Dual position locking system for easy DIN-rail mounting |
| Protection against direct finger contact |
