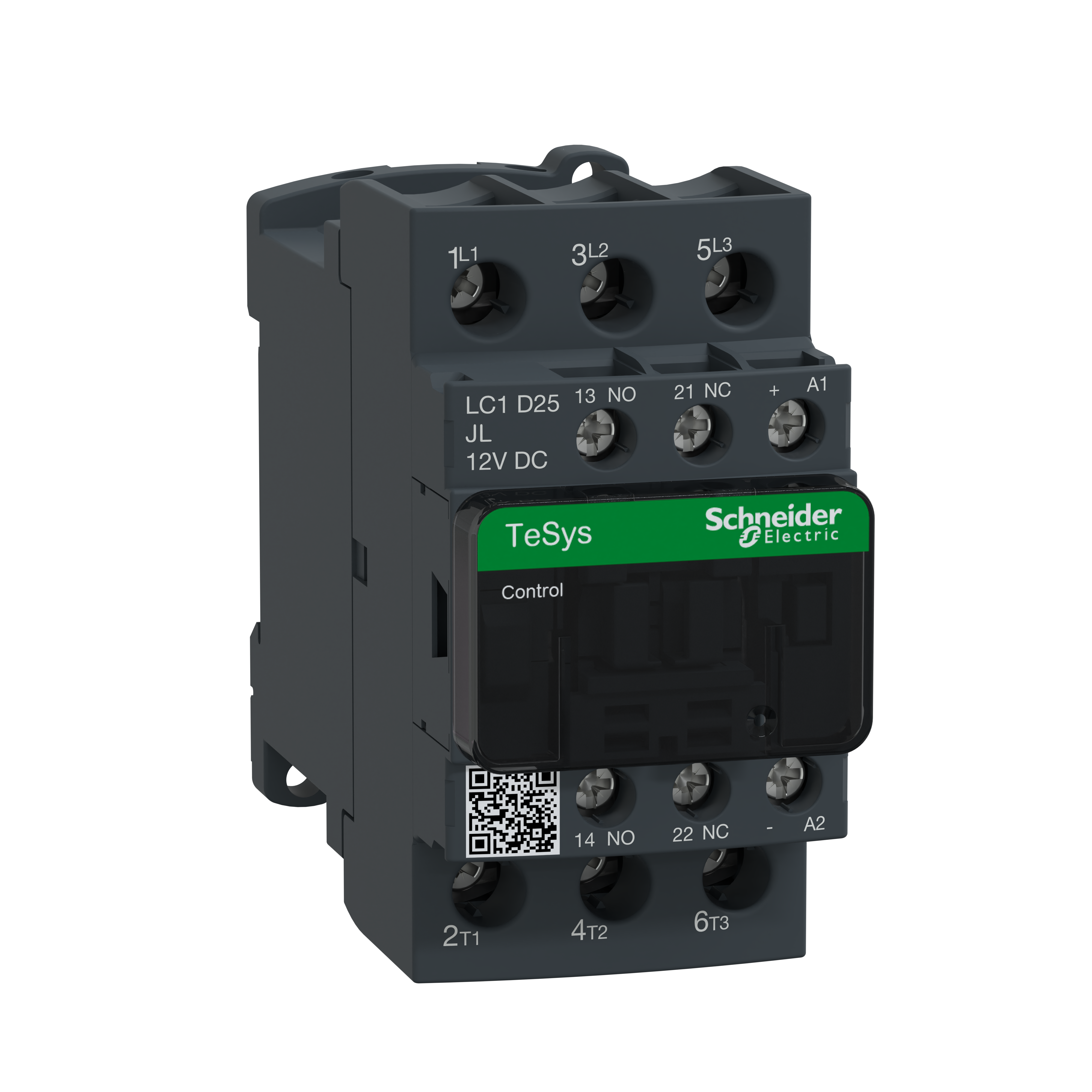

Schneider Electric TeSys™ D LC1D25JL LC1D D-Line IEC Contactor With Protective Cover, 12 VDC V Coil, 40 A, 3NO Contact, 3 Poles
Custom_Product_Images_Illustration
Schneider Electric TeSys™ D LC1D25JL LC1D D-Line IEC Contactor With Protective Cover, 12 VDC V Coil, 40 A, 3NO Contact, 3 Poles
SKU1419927
MFGR #LC1D25JL
Call For Price
List: Schneider Electric TeSys™ D IEC Contactor, LC1D D-Line, 12 VDC Coil, 40 A Maximum Load Current, 20 hp Coil, 3 Pole, 50/60 Hz Frequency, 3.2/1.25 W Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 25 A at 600 VAC Contact, Screw Clamp Connection, Screw Clamp Terminal, Open Enclosure, 30000000 Cycles Operating Cycles, -4 to 140 deg F Operating, Surface Mounting, 1.77 in W x 3.98 in D x 3.35 in H Dimensions
Schneider Electric TeSys™ D IEC Contactor, LC1D D-Line, 12 VDC Coil, 40 A Maximum Load Current, 20 hp Coil, 3 Pole, 50/60 Hz Frequency, 3.2/1.25 W Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 25 A at 600 VAC Contact, Screw Clamp Connection, Screw Clamp Terminal, Open Enclosure, 30000000 Cycles Operating Cycles, -4 to 140 deg F Operating, Surface Mounting, 1.77 in W x 3.98 in D x 3.35 in H Dimensions
Alternate Catalog Number LC1D25JL Application For motor control and resistive loads ARRA Compliant N Buy American Compliant N Catalog Number LC1D25JL Coil Power Rating 2.4-2.4 W 20 A°C Connection Type Screw Clamp Contact Rating 10 A 60 A°C SIGNALLING CIRCUIT-40 A 60 A°C POWER CIRCUIT Country of Origin FR Currency USD Dimensions 1.77 in W x 3.98 in D x 3.35 in H Enclosure Type Open EU RoHS Indicator Y Frequency Rating 50/60 Gross Volume Per Pack 34.97 Gross Volume per Pack Metric 573.05 Gross Weight Per Pack 5.9600 lb Gross Weight per Pack Metric 596.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 5.0000 in Height [Metric] 5.0000 cm Item Group 22354 Length 11.2000 in Length [Metric] 11.2000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=615714&lang=en-us Mounting RAIL-PLATE Mounting Type Surface Number of Auxiliary Contacts 1NO-1NC Number Of Poles 3 Operating Cycles 30000000 Operating Temperature -40-70 A°C AT UC,-5-60 A°C Returnable Y Size 101 MM,45 MM,85 MM Standard 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,DNV-RINA-LROS (LLOYDS REGISTER OF SHIPPING)-GL-BV-CCC-GOST-UL-CSA,IP20 FRONT FACE IEC 60529,V1 UL 94 Sub Brand TESYS D Substitute Product Catalog Number LADN22 Terminal Type Screw Clamp UNSPSC 39121529 UPC 11 78590197359 UPC 12 785901973591 Warranty Description Contractual Warranty:18 months Wattage 3.2 W AC-1-1.25 W AC-3 . W;. W Width 9.2000 in Width [Metric] 9.2000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Contact Configuration 1 NO + 1 NC,3 NO,MECHANICALLY LINKED 1 NO + 1 NC IEC 60947-5-1-MIRROR CONTACT 1 NC IEC 60947-4-1 Type contactor For motor control and resistive loads 3 HP 230/240 V AC 50/60 HZ 1 PHASE-2 HP 115 V AC 50/60 HZ 1 PHASE-7.5 HP 230/240 V AC 50/60 HZ 3 PHASE-15 HP 460/480 V AC 50/60 HZ 3 PHASE-20 HP 575/600 V AC 50/60 HZ 3 PHASE-7.5 HP 200/208 V AC 50/60 HZ 3 PHASE,BUILT-IN BIDIRECTIONAL PEAK LIMITING DIODE SUPPRESSOR 6 kV conforming to IEC 60947 rated impulse withstand voltage III overvoltage category 40 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional free air thermal current 450 A at 440 V power circuit conforming to IEC 60947/140 A AC signaling circuit conforming to IEC 60947-5 1/250 A DC signaling circuit conforming to IEC 60947-5 1 IRMS rated making capacity 450 A at 440 V power circuit conforming to IEC 60947 rated breaking capacity 40 A gG at 690 V coordination type 2-power circuit/63 A gG at 690 V coordination type 1 power circuit/10 A gG signaling circuit conforming to IEC 60947-5-1 associated fuse rating 2 MOhm at 50 Hz, Ith 25 A power circuit average impedance 65.45 to 88.55 ms closing and 20 to 30 ms opening operating time 3600 cycles/hr at 140 deg F operating rate 40 ms time constant 40 ms time constant 2.4 W at 68 deg F inrush power 2.4 W at 68 deg F hold-in power consumption 25 to 400 Hz signaling circuit frequency 5 mA minimum switching current 17 VAC signaling circuit minimum switching voltage 1.5 ms on energization between NC and NO contacts/1.5 ms on de-energization between NC and NO contacts non-overlap time >10 MOhm signaling circuit insulation resistance TH protective treatment 3 degree of pollution
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D25JL |
| Application | For motor control and resistive loads |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LC1D25JL |
| Coil Power Rating | 2.4-2.4 W 20 A°C |
| Connection Type | Screw Clamp |
| Contact Rating | 10 A 60 A°C SIGNALLING CIRCUIT-40 A 60 A°C POWER CIRCUIT |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 1.77 in W x 3.98 in D x 3.35 in H |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 |
| Gross Volume Per Pack | 34.97 |
| Gross Volume per Pack Metric | 573.05 |
| Gross Weight Per Pack | 5.9600 lb |
| Gross Weight per Pack Metric | 596.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 5.0000 in |
| Height [Metric] | 5.0000 cm |
| Item Group | 22354 |
| Length | 11.2000 in |
| Length [Metric] | 11.2000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=615714&lang=en-us |
| Mounting | RAIL-PLATE |
| Mounting Type | Surface |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 3 |
| Operating Cycles | 30000000 |
| Operating Temperature | -40-70 A°C AT UC,-5-60 A°C |
| Returnable | Y |
| Size | 101 MM,45 MM,85 MM |
| Standard | 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,DNV-RINA-LROS (LLOYDS REGISTER OF SHIPPING)-GL-BV-CCC-GOST-UL-CSA,IP20 FRONT FACE IEC 60529,V1 UL 94 |
| Sub Brand | TESYS D |
| Substitute Product Catalog Number | LADN22 |
| Terminal Type | Screw Clamp |
| UNSPSC | 39121529 |
| UPC 11 | 78590197359 |
| UPC 12 | 785901973591 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 3.2 W AC-1-1.25 W AC-3 . W;. W |
| Width | 9.2000 in |
| Width [Metric] | 9.2000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Contact Configuration | 1 NO + 1 NC,3 NO,MECHANICALLY LINKED 1 NO + 1 NC IEC 60947-5-1-MIRROR CONTACT 1 NC IEC 60947-4-1 |
| Type | contactor |
| For motor control and resistive loads |
| 3 HP 230/240 V AC 50/60 HZ 1 PHASE-2 HP 115 V AC 50/60 HZ 1 PHASE-7.5 HP 230/240 V AC 50/60 HZ 3 PHASE-15 HP 460/480 V AC 50/60 HZ 3 PHASE-20 HP 575/600 V AC 50/60 HZ 3 PHASE-7.5 HP 200/208 V AC 50/60 HZ 3 PHASE,BUILT-IN BIDIRECTIONAL PEAK LIMITING DIODE SUPPRESSOR |
| 6 kV conforming to IEC 60947 rated impulse withstand voltage |
| III overvoltage category |
| 40 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional free air thermal current |
| 450 A at 440 V power circuit conforming to IEC 60947/140 A AC signaling circuit conforming to IEC 60947-5 1/250 A DC signaling circuit conforming to IEC 60947-5 1 IRMS rated making capacity |
| 450 A at 440 V power circuit conforming to IEC 60947 rated breaking capacity |
| 40 A gG at 690 V coordination type 2-power circuit/63 A gG at 690 V coordination type 1 power circuit/10 A gG signaling circuit conforming to IEC 60947-5-1 associated fuse rating |
| 2 MOhm at 50 Hz, Ith 25 A power circuit average impedance |
| 65.45 to 88.55 ms closing and 20 to 30 ms opening operating time |
| 3600 cycles/hr at 140 deg F operating rate |
| 40 ms time constant |
| 40 ms time constant |
| 2.4 W at 68 deg F inrush power |
| 2.4 W at 68 deg F hold-in power consumption |
| 25 to 400 Hz signaling circuit frequency |
| 5 mA minimum switching current |
| 17 VAC signaling circuit minimum switching voltage |
| 1.5 ms on energization between NC and NO contacts/1.5 ms on de-energization between NC and NO contacts non-overlap time |
| >10 MOhm signaling circuit insulation resistance |
| TH protective treatment |
| 3 degree of pollution |
