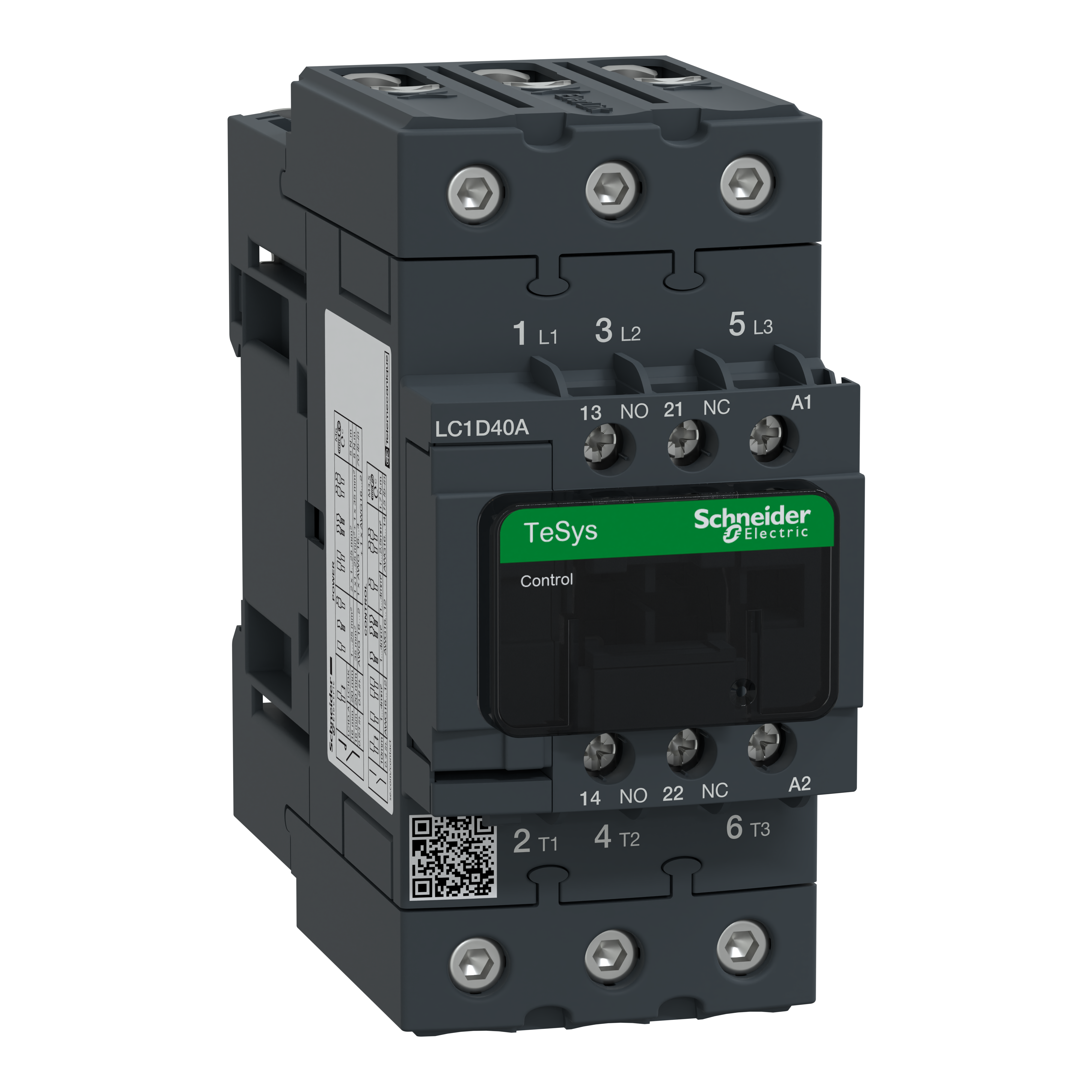

Schneider Electric Square D™ TeSys™ D LC1D40AL7 Contactor With Safety Cover, 200 VAC V Coil, 60 A, 3NO Contact, 3 Poles
Custom_Product_Images_Illustration
Schneider Electric Square D™ TeSys™ D LC1D40AL7 Contactor With Safety Cover, 200 VAC V Coil, 60 A, 3NO Contact, 3 Poles
SKUPDW~6407037
MFGR #LC1D40AL7
Your Cost: $302.35/ea
Schneider Electric Square D™ TeSys™ D Contactor, Series: LC1D, 200 VAC Coil, 60 A Maximum Load Current, 15 VA Coil, 3 Pole, 25 to 400 Hz Frequency, 2.4 W Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 10/60 A Contact, Screw Connection, Screw Clamp Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -5 to 60 deg C Operating, Surface Mounting, 55 mm W x 120 mm D x 122 mm H Dimensions
Schneider Electric Square D™ TeSys™ D Contactor, Series: LC1D, 200 VAC Coil, 60 A Maximum Load Current, 15 VA Coil, 3 Pole, 25 to 400 Hz Frequency, 2.4 W Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 10/60 A Contact, Screw Connection, Screw Clamp Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -5 to 60 deg C Operating, Surface Mounting, 55 mm W x 120 mm D x 122 mm H Dimensions
Alternate Catalog Number LC1D40AL7 Application For motor control and resistive load ARRA Compliant N Buy American Compliant N Catalog Number LC1D40AL7 Coil Power Rating 13-13 VA 60 HZ 0.3 20 A?°C)-15-15 VA 50 HZ 0.3 20 A?°C) Country of Origin US Currency USD EU RoHS Indicator Y Gross Volume Per Pack 79.20 Gross Volume per Pack Metric 1297.85 Gross Weight Per Pack 8.5000 lb Gross Weight per Pack Metric 850.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 6.0000 in Height [Metric] 6.0000 cm Item Group 22357 Length 15.0000 in Length [Metric] 15.0000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61571465&lang=en-us Mounting Plate;Rail Returnable Y Substitute Product Catalog Number LADN22 UNSPSC 39121529 UPC 11 785901733225 UPC 12 785901733225 Warranty Description Contractual Warranty:18 months Width 14.0000 in Width [Metric] 14.0000 cm Brand Square D™ Manufacturer Schneider Electric Coil Voltage 200 V AC 50/60 Hz Contact Configuration 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 Type CONTACTOR For motor control and resistive load Without built-in suppressor module Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil TeSys™ D green contactor simplify your maintenance services with 90% less references needed TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50% High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets Simple to select the right product All contactors include built-in auxiliary contacts All screw connections have IP20 finger-safe terminals with both North American and International terminal markings Control circuit flexibility Control circuit flexibility Without built-in suppressor module
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D40AL7 |
| Application | For motor control and resistive load |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LC1D40AL7 |
| Coil Power Rating | 13-13 VA 60 HZ 0.3 20 A?°C)-15-15 VA 50 HZ 0.3 20 A?°C) |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 79.20 |
| Gross Volume per Pack Metric | 1297.85 |
| Gross Weight Per Pack | 8.5000 lb |
| Gross Weight per Pack Metric | 850.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 6.0000 in |
| Height [Metric] | 6.0000 cm |
| Item Group | 22357 |
| Length | 15.0000 in |
| Length [Metric] | 15.0000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61571465&lang=en-us |
| Mounting | Plate;Rail |
| Returnable | Y |
| Substitute Product Catalog Number | LADN22 |
| UNSPSC | 39121529 |
| UPC 11 | 785901733225 |
| UPC 12 | 785901733225 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 14.0000 in |
| Width [Metric] | 14.0000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Coil Voltage | 200 V AC 50/60 Hz |
| Contact Configuration | 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 |
| Type | CONTACTOR |
| For motor control and resistive load |
| Without built-in suppressor module |
| Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications |
| New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil |
| TeSys™ D green contactor simplify your maintenance services with 90% less references needed |
| TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50% |
| High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR |
| Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets |
| Simple to select the right product |
| All contactors include built-in auxiliary contacts |
| All screw connections have IP20 finger-safe terminals with both North American and International terminal markings |
| Control circuit flexibility |
| Control circuit flexibility |
| Without built-in suppressor module |
