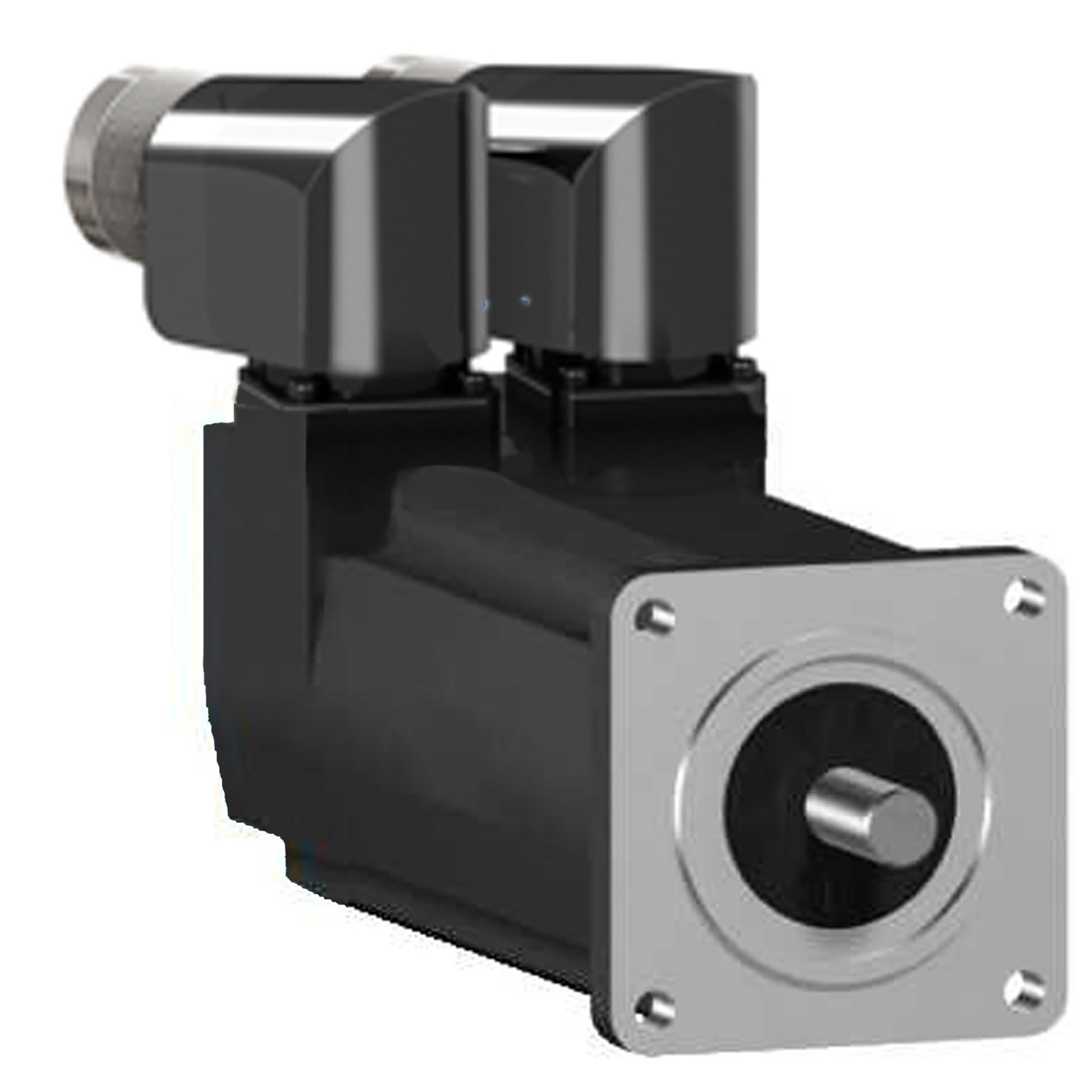

Schneider Electric Square D™ Lexium™ 52 SH30552P11A2000 3-Phase Singleturn Parallel Keyed Shaft End Natural Convection Standard Servo Motor, 0.8 hp, 115 to 480 V, 4.8 A, 9000 rpm Speed, Flange Mount
Custom_Product_Images_Illustration
Schneider Electric Square D™ Lexium™ 52 SH30552P11A2000 3-Phase Singleturn Parallel Keyed Shaft End Natural Convection Standard Servo Motor, 0.8 hp, 115 to 480 V, 4.8 A, 9000 rpm Speed, Flange Mount
SKUPDW~11778478
MFGR #SH30552P11A2000
Your Cost: $1,903.72/ea
Schneider Electric Square D™ Lexium™ 52 Standard Servo Motor, 3-Phase Singleturn Parallel Keyed Shaft End Natural Convection, Series: SH3 055, Synchronous Permanent Magnet AC Motors Special Features, 0.8 hp, 115 to 480 V, 4.8 A, 9000 rpm Speed, IP54/IP65 Enclosure, 0.35 in Dia x 0.79 in L Shaft, 6.82 to 6.28 in-lbf Torque, Flange Mounting, -4 to 104 deg F, Insulation Class: Class F, 2.16 in W x 6.08 in D x 3.72 in H Dimensions
Schneider Electric Square D™ Lexium™ 52 Standard Servo Motor, 3-Phase Singleturn Parallel Keyed Shaft End Natural Convection, Series: SH3 055, Synchronous Permanent Magnet AC Motors Special Features, 0.8 hp, 115 to 480 V, 4.8 A, 9000 rpm Speed, IP54/IP65 Enclosure, 0.35 in Dia x 0.79 in L Shaft, 6.82 to 6.28 in-lbf Torque, Flange Mounting, -4 to 104 deg F, Insulation Class: Class F, 2.16 in W x 6.08 in D x 3.72 in H Dimensions
Alternate Catalog Number SH30552P11A2000 Application General Machine Control, Packaging Machine Automation and Handling Applications ARRA Compliant N Buy American Compliant N Catalog Number SH30552P11A2000 Country of Origin US Currency USD EU RoHS Indicator Y Gross Weight Per Pack 0.0184 lb Gross Weight per Pack Metric 1.84 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8501514040 Height 11.5000 in Height [Metric] 11.5000 cm Item Group 18359 Length 39.5000 in Length [Metric] 39.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=417169682&lang=en-us Phase 3 Returnable N UNSPSC 39121021 Warranty Description Contractual Warranty:18 months Width 19.0000 in Width [Metric] 19.0000 cm Brand Square D™ Manufacturer Schneider Electric General Machine Control, Packaging Machine Automation and Handling Applications Overload capacity - high peak current (up to 4X the continuous current) Increases the range of movement Power density - the compact size of the servo drives offers maximum efficiency in a small space External braking resistors, when the Servo Motor has to be braked frequently Line chokes for improved protection against over voltages to reduce harmonic distortion of the current Additional EMC input filters to reduce conducted emissions on the line supply below the limits of standard IEC/EN 61800-3 edition 2, category C2 or C3 Without holding brake 6.82 in-lbf at 115 V 3 ph, 6.64 in-lbf at 230 V 3 ph, 6.37 in-lbf at 400 V 3 ph and 6.28 in-lbf at 480 V 3 ph
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | SH30552P11A2000 |
| Application | General Machine Control, Packaging Machine Automation and Handling Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | SH30552P11A2000 |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0184 lb |
| Gross Weight per Pack Metric | 1.84 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8501514040 |
| Height | 11.5000 in |
| Height [Metric] | 11.5000 cm |
| Item Group | 18359 |
| Length | 39.5000 in |
| Length [Metric] | 39.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=417169682&lang=en-us |
| Phase | 3 |
| Returnable | N |
| UNSPSC | 39121021 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 19.0000 in |
| Width [Metric] | 19.0000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| General Machine Control, Packaging Machine Automation and Handling Applications |
| Overload capacity - high peak current (up to 4X the continuous current) |
| Increases the range of movement |
| Power density - the compact size of the servo drives offers maximum efficiency in a small space |
| External braking resistors, when the Servo Motor has to be braked frequently |
| Line chokes for improved protection against over voltages to reduce harmonic distortion of the current |
| Additional EMC input filters to reduce conducted emissions on the line supply below the limits of standard IEC/EN 61800-3 edition 2, category C2 or C3 |
| Without holding brake |
| 6.82 in-lbf at 115 V 3 ph, 6.64 in-lbf at 230 V 3 ph, 6.37 in-lbf at 400 V 3 ph and 6.28 in-lbf at 480 V 3 ph |
