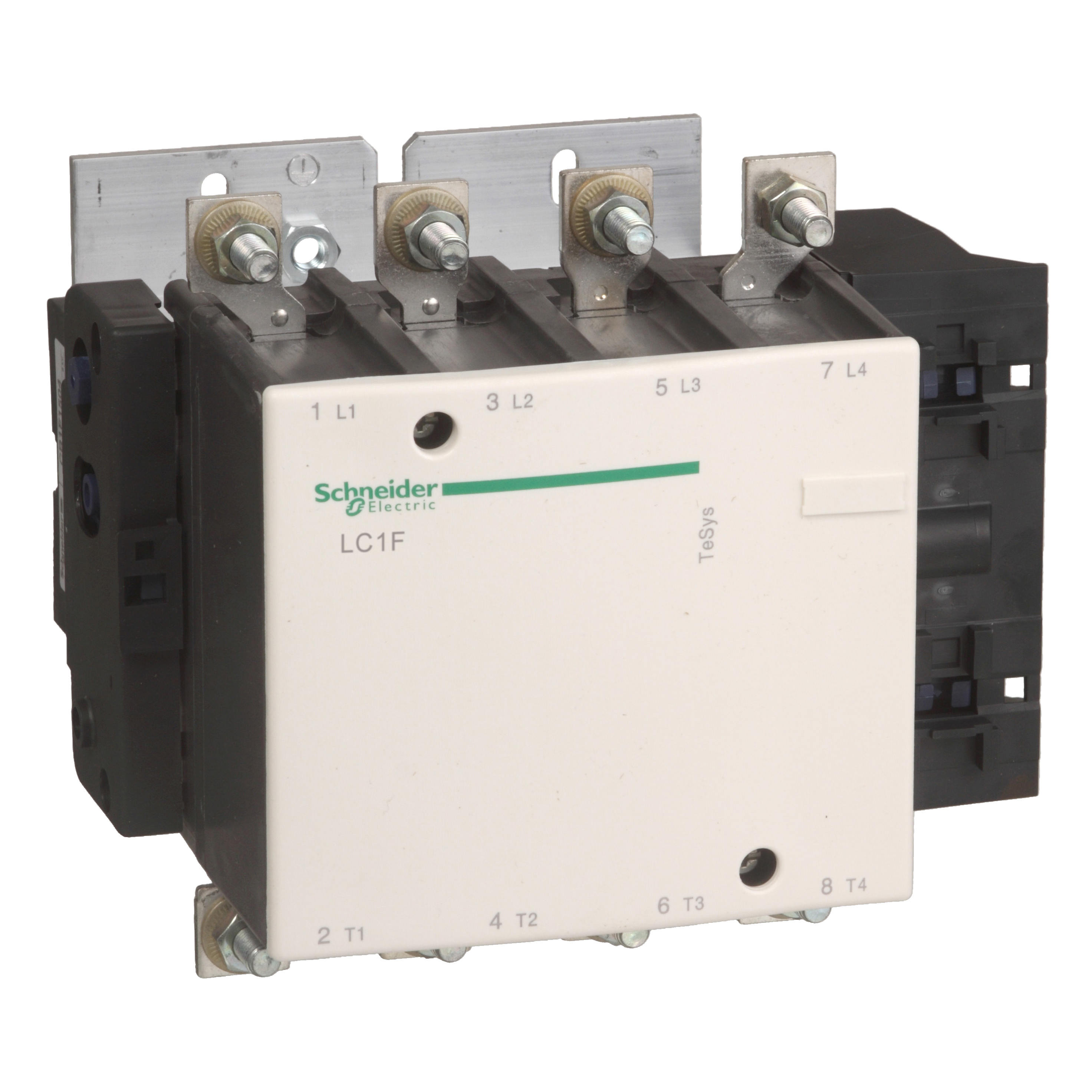

Schneider Electric Square D™ LC1F1154 TeSys™ F LC1F Non-Reversing IEC Contactor, 200 A, 4NO Contact, 4 Poles
Custom_Product_Images_Illustration
Schneider Electric Square D™ LC1F1154 TeSys™ F LC1F Non-Reversing IEC Contactor, 200 A, 4NO Contact, 4 Poles
SKUPDW~6407265
MFGR #LC1F1154
Call For Price
Schneider Electric Square D™ IEC Contactor, Non-Reversing, Series: TeSys™ F LC1F, 200 A Maximum Load Current, 4 Pole, 50/60 Hz Frequency, 4NO Contact Configuration, Bolted/Busbar/Lugs Ring Tongue/Screw Clamp Terminal, IP2X Enclosure, -5 to 55 deg C Operating, Plate Mounting, 162 mm H x 200.5 mm W x 171 mm D Dimensions
Schneider Electric Square D™ IEC Contactor, Non-Reversing, Series: TeSys™ F LC1F, 200 A Maximum Load Current, 4 Pole, 50/60 Hz Frequency, 4NO Contact Configuration, Bolted/Busbar/Lugs Ring Tongue/Screw Clamp Terminal, IP2X Enclosure, -5 to 55 deg C Operating, Plate Mounting, 162 mm H x 200.5 mm W x 171 mm D Dimensions
Alternate Catalog Number LC1F1154 Application Resistive Load Applications ARRA Compliant N Buy American Compliant N Catalog Number LC1F1154 Country of Origin US Currency USD EU RoHS Indicator Y Gross Volume Per Pack 549.12 Gross Volume per Pack Metric 8998.43 Gross Weight Per Pack 0.0420 lb Gross Weight per Pack Metric 4.21 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 23.5000 CM Height [Metric] 21.5000 cm Item Group 22336 Length 20.5000 CM Length [Metric] 26.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=620894&lang=en-us Returnable Y Standard CB;UL;RINA;DNV;LROS (Lloyds register of shipping);RMRoS;CSA;ABS;BV;UKCA UNSPSC 39121529 UPC 11 785901156123 UPC 12 785901156123 Warranty Description Contractual Warranty:18 months Width 19.0000 CM Width [Metric] 20.0000 cm Brand Square D™ Manufacturer Schneider Electric Coil Voltage 24...575 V AC 40...400 Hz with LX9 coil;24...460 V DC with LX4 coil;100...250 V AC 50/60 Hz with LXE coil;100...380 V DC with LXE coil Type Contactor;LC1F Resistive Load Applications All DC or AC control voltages 50/400 Hz Power connection Safety of operation Quick, simple mounting of contactor and GV7-R circuit-breaker Without coil
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1F1154 |
| Application | Resistive Load Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LC1F1154 |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 549.12 |
| Gross Volume per Pack Metric | 8998.43 |
| Gross Weight Per Pack | 0.0420 lb |
| Gross Weight per Pack Metric | 4.21 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 23.5000 CM |
| Height [Metric] | 21.5000 cm |
| Item Group | 22336 |
| Length | 20.5000 CM |
| Length [Metric] | 26.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=620894&lang=en-us |
| Returnable | Y |
| Standard | CB;UL;RINA;DNV;LROS (Lloyds register of shipping);RMRoS;CSA;ABS;BV;UKCA |
| UNSPSC | 39121529 |
| UPC 11 | 785901156123 |
| UPC 12 | 785901156123 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 19.0000 CM |
| Width [Metric] | 20.0000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Coil Voltage | 24...575 V AC 40...400 Hz with LX9 coil;24...460 V DC with LX4 coil;100...250 V AC 50/60 Hz with LXE coil;100...380 V DC with LXE coil |
| Type | Contactor;LC1F |
| Resistive Load Applications |
| All DC or AC control voltages 50/400 Hz |
| Power connection |
| Safety of operation |
| Quick, simple mounting of contactor and GV7-R circuit-breaker |
| Without coil |
