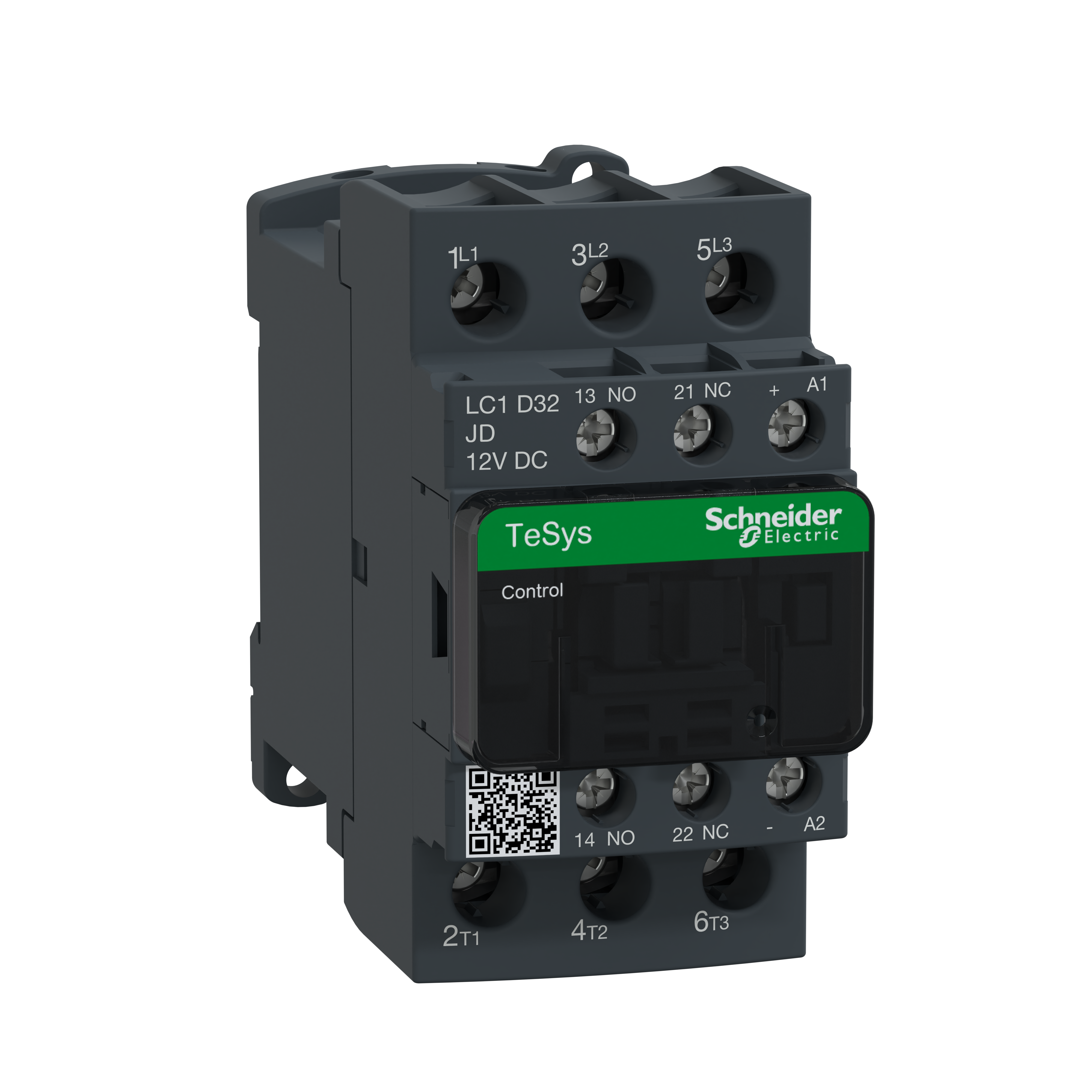

Schneider Electric Square D™ LC1D32JD TeSys™ D LC1D Non-Reversing IEC Contactor With Safety Cover, 12 VDC V Coil, 32/50 A, 3NO Contact, 3 Poles
Custom_Product_Images_Illustration
Schneider Electric Square D™ LC1D32JD TeSys™ D LC1D Non-Reversing IEC Contactor With Safety Cover, 12 VDC V Coil, 32/50 A, 3NO Contact, 3 Poles
SKU1419923
MFGR #LC1D32JD
Call For Price
List: Schneider Electric Square D™ IEC Contactor, Non-Reversing, Series: TeSys™ D LC1D, 12 VDC Coil, 32/50 A Maximum Load Current, 30 hp at 575/600 VAC Coil, 3 Pole, 25 to 400 Hz Frequency, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, Screw Clamp Terminal, Open Enclosure, 3600 Cycles/hr Operating Cycles, -5 to 60 deg C Operating, Plate/Rail Mounting, 85 mm H x 45 mm W x 101 mm D Dimensions
Schneider Electric Square D™ IEC Contactor, Non-Reversing, Series: TeSys™ D LC1D, 12 VDC Coil, 32/50 A Maximum Load Current, 30 hp at 575/600 VAC Coil, 3 Pole, 25 to 400 Hz Frequency, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, Screw Clamp Terminal, Open Enclosure, 3600 Cycles/hr Operating Cycles, -5 to 60 deg C Operating, Plate/Rail Mounting, 85 mm H x 45 mm W x 101 mm D Dimensions
Alternate Catalog Number LC1D32JD Application Industry, Infrastructure, Building, Resistive Load and Motor Control Applications ARRA Compliant N Buy American Compliant N Catalog Number LC1D32JD Coil Power Rating 30 hp at 575/600 VAC Contact Rating 10 A 60 A°C SIGNALLING CIRCUIT-50 A 60 A°C POWER CIRCUIT Country of Origin ID Currency USD Dimensions 85 mm H x 45 mm W x 101 mm D Enclosure Type Open EU RoHS Indicator Y Frequency Rating 25 to 400 Gross Volume Per Pack 36.71 Gross Volume per Pack Metric 601.57 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 5.9200 lb Gross Weight per Pack Metric 592.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 5.6000 in Height [Metric] 5.6000 cm Item Group 22355 Length 12.0000 in Length [Metric] 12.0000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1471808&lang=en-us Mounting Rail;plate Mounting Type Plate/Rail Number of Auxiliary Contacts 1NO-1NC Number Of Poles 3 Operating Cycles 3600 Operating Temperature -5 to 60 Returnable Y Series TeSys™ D LC1D Size 101 MM,45 MM,85 MM Substitute Product Catalog Number LADN22 Terminal Type Screw/Clamp UNSPSC 39121529 Warranty Description Contractual Warranty:18 months Wattage 2 W AC-3-5 W AC-1 W;W Width 9.4000 in Width [Metric] 9.4000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Coil Voltage 12 VDC Contact Configuration 3NO Maximum Load Current 32/50 Type Non-Reversing Industry, Infrastructure, Building, Resistive Load and Motor Control Applications Built-in bidirectional peak limiting diode suppressor Designed to control and provide overload protection to motors rated upto 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications New TeSys™ D green increase TeSys™ D range with a new electronic coil with upto 80% less consumption than TeSys™ D standard AC or DC coil TeSys™ D green contactor simplify your maintenance services with 90% less references needed TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption upto 50% High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR All contactors include built-in auxiliary contacts All screw connections have IP20 finger safe terminals with both north American and international terminal markings Designed for perfect integration in control systems Can be used to create motor starters for any type of application
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D32JD |
| Application | Industry, Infrastructure, Building, Resistive Load and Motor Control Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LC1D32JD |
| Coil Power Rating | 30 hp at 575/600 VAC |
| Contact Rating | 10 A 60 A°C SIGNALLING CIRCUIT-50 A 60 A°C POWER CIRCUIT |
| Country of Origin | ID |
| Currency | USD |
| Dimensions | 85 mm H x 45 mm W x 101 mm D |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 25 to 400 |
| Gross Volume Per Pack | 36.71 |
| Gross Volume per Pack Metric | 601.57 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 5.9200 lb |
| Gross Weight per Pack Metric | 592.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 5.6000 in |
| Height [Metric] | 5.6000 cm |
| Item Group | 22355 |
| Length | 12.0000 in |
| Length [Metric] | 12.0000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1471808&lang=en-us |
| Mounting | Rail;plate |
| Mounting Type | Plate/Rail |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 3 |
| Operating Cycles | 3600 |
| Operating Temperature | -5 to 60 |
| Returnable | Y |
| Series | TeSys™ D LC1D |
| Size | 101 MM,45 MM,85 MM |
| Substitute Product Catalog Number | LADN22 |
| Terminal Type | Screw/Clamp |
| UNSPSC | 39121529 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 2 W AC-3-5 W AC-1 W;W |
| Width | 9.4000 in |
| Width [Metric] | 9.4000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Coil Voltage | 12 VDC |
| Contact Configuration | 3NO |
| Maximum Load Current | 32/50 |
| Type | Non-Reversing |
| Industry, Infrastructure, Building, Resistive Load and Motor Control Applications |
| Built-in bidirectional peak limiting diode suppressor |
| Designed to control and provide overload protection to motors rated upto 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications |
| New TeSys™ D green increase TeSys™ D range with a new electronic coil with upto 80% less consumption than TeSys™ D standard AC or DC coil |
| TeSys™ D green contactor simplify your maintenance services with 90% less references needed |
| TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption upto 50% |
| High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR |
| All contactors include built-in auxiliary contacts |
| All screw connections have IP20 finger safe terminals with both north American and international terminal markings |
| Designed for perfect integration in control systems |
| Can be used to create motor starters for any type of application |
