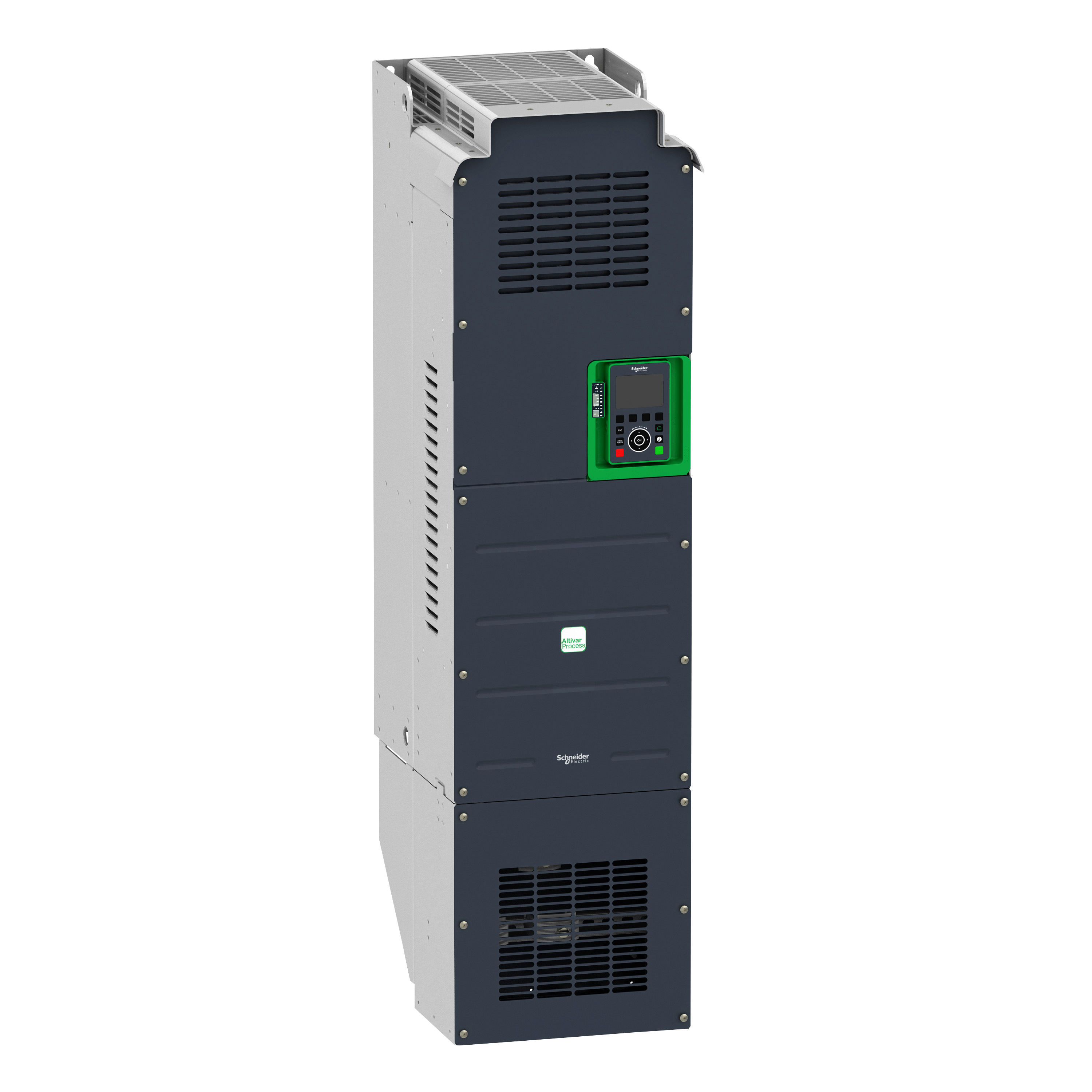

Schneider Electric Square D™ ATV930C13N4C Altivar™ Process 930 3-Phase Standard AC Variable Speed Drive With Category C3 Integrated EMC Filter, 400/480 VAC, 165/201/213/237 A, 150 hp, 200 hp, 12.6 in W x 15.47 in D
Custom_Product_Images_Illustration
Schneider Electric Square D™ ATV930C13N4C Altivar™ Process 930 3-Phase Standard AC Variable Speed Drive With Category C3 Integrated EMC Filter, 400/480 VAC, 165/201/213/237 A, 150 hp, 200 hp, 12.6 in W x 15.47 in D
SKU1412919
MFGR #ATV930C13N4C
Call For Price
List: Schneider Electric Square D™ AC Variable Speed Drive, 3-Phase Standard, Series: Altivar™ Process 930, 400/480 VAC, 165/201/213/237 A, 150 hp, 200 hp, 12.6 in Width, 15.47 in Depth, 33.54 in Height, NEMA 1/IP00/IP21 Enclosure, Graphic Display Terminal Display, Wall Mounting
Schneider Electric Square D™ AC Variable Speed Drive, 3-Phase Standard, Series: Altivar™ Process 930, 400/480 VAC, 165/201/213/237 A, 150 hp, 200 hp, 12.6 in Width, 15.47 in Depth, 33.54 in Height, NEMA 1/IP00/IP21 Enclosure, Graphic Display Terminal Display, Wall Mounting
Alternate Catalog Number ATV930C13N4C Application Oil and Gas, Mining, Minerals and Metals, Food and Beverage, Water and Wastewater, Asynchronous and Synchronous, Special Motors Applications ARRA Compliant N Buy American Compliant N Catalog Number ATV930C13N4C Communication Modbus TCP;EtherNet/IP;Modbus serial;Ethernet;2-wire RS 485 Country of Origin US Currency USD Current Rating 211 A 2.5 kHz heavy duty;250 A 2.5 kHz normal duty A Display Local diagnostic 3 LED mono/dual colour);embedded communication status 5 LED dual colour);communication module status 2 LED dual colour);presence of voltage 1 LED red) Environmental Conditions -15-50 A?°C WITHOUT)-50-60 A?°C WITH DERATING FACTOR),CHEMICAL POLLUTION RESISTANCE CLASS 3C3 EN/IEC 60721-3-3-DUST POLLUTION RESISTANCE CLASS 3S3 EN/IEC 60721-3-3 EU RoHS Indicator Y Gross Volume Per Pack 19622.25 Gross Volume per Pack Metric 321549.81 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.8960 lb Gross Weight per Pack Metric 89.60 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504404000 Height 65.0000 in Height [Metric] 66.0000 cm Input Voltage 380...480 V - 15...10 % Item Group 22277 Length 103.0000 in Length [Metric] 103.0000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=428548092&lang=en-us Mounting Wall Mount Returnable Y Size 15.47 in Standard IP21 Substitute Product Catalog Number VW3A1112 Type Variable speed drive;2 RJ45;1 RJ45 UNSPSC 39122001 Width [Metric] 48.0000 cm Stock Status NORMALLY STOCKED Brand Square D™ Manufacturer Schneider Electric Width 47.0000 in Oil and Gas, Mining, Minerals and Metals, Food and Beverage, Water and Wastewater, Asynchronous and Synchronous, Special Motors Applications Variable torque standard;optimized torque mode;constant torque standard;16 preset speeds;Control screw terminal 0.5...1.5 mm² AWG 20...AWG 16;line side screw terminal 2 x 70...3 x 120 mm² AWG 2/0...300 kcmil;motor screw terminal 2 x 70...3 x 120 mm² AWG 2/0...300 kcmil;DC bus screw terminal 2 x 95...3 x 120 mm² AWG 2/0...300 kcmil;1;Thermal protection motor;safe torque off motor;motor phase break motor;thermal protection drive;safe torque off drive;overheating drive;overcurrent between output phases and earth drive;overload of output voltage drive;short-circuit protection drive;motor phase break drive;overvoltages on the DC bus drive;line supply overvoltage drive;line supply undervoltage drive;line supply phase loss drive;overspeed drive;break on the control circuit drive;External supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection;internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection;internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection Ethernet/IP serial Modbus TCP communication Performance on motor control with an overload torque up to 1.8 Tn in an open or closed loop Asynchronous, synchronous, special motors: all efficiency classes, brand independent, permanent magnet motors, torque motors, conical sliding rotor, reluctance motor Integrated Ethernet/IP and Modbus TCP dual port, cybersecurity (Achilles level 2) Smart integration in PlantStruxure and Foxboro Evo process automation systems Optimized energy efficiency, detection of energy consumption drift of the installation Adaptation to the process by dedicated functions with modular design Embedded safety functions STO SIL3 Master/slave and load sharing with drive-to-drive capability: Torque sharing on elastic coupling Torque sharing on elastic coupling Contextual access to technical documentation through dynamic QR code Continuous and historical real-time measurements with customizable dashboards Predictive maintenance 237 A at 380 VAC normal duty, 213 A at 480 VAC normal duty, 201 A at 380 VAC heavy duty, 165 A at 480 VAC heavy duty amperage rating 200 hp at normal duty, 150 hp at heavy duty horsepower rating Without braking chopper unit
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | ATV930C13N4C |
| Application | Oil and Gas, Mining, Minerals and Metals, Food and Beverage, Water and Wastewater, Asynchronous and Synchronous, Special Motors Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | ATV930C13N4C |
| Communication | Modbus TCP;EtherNet/IP;Modbus serial;Ethernet;2-wire RS 485 |
| Country of Origin | US |
| Currency | USD |
| Current Rating | 211 A 2.5 kHz heavy duty;250 A 2.5 kHz normal duty A |
| Display | Local diagnostic 3 LED mono/dual colour);embedded communication status 5 LED dual colour);communication module status 2 LED dual colour);presence of voltage 1 LED red) |
| Environmental Conditions | -15-50 A?°C WITHOUT)-50-60 A?°C WITH DERATING FACTOR),CHEMICAL POLLUTION RESISTANCE CLASS 3C3 EN/IEC 60721-3-3-DUST POLLUTION RESISTANCE CLASS 3S3 EN/IEC 60721-3-3 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 19622.25 |
| Gross Volume per Pack Metric | 321549.81 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.8960 lb |
| Gross Weight per Pack Metric | 89.60 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504404000 |
| Height | 65.0000 in |
| Height [Metric] | 66.0000 cm |
| Input Voltage | 380...480 V - 15...10 % |
| Item Group | 22277 |
| Length | 103.0000 in |
| Length [Metric] | 103.0000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=428548092&lang=en-us |
| Mounting | Wall Mount |
| Returnable | Y |
| Size | 15.47 in |
| Standard | IP21 |
| Substitute Product Catalog Number | VW3A1112 |
| Type | Variable speed drive;2 RJ45;1 RJ45 |
| UNSPSC | 39122001 |
| Width [Metric] | 48.0000 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Width | 47.0000 in |
| Oil and Gas, Mining, Minerals and Metals, Food and Beverage, Water and Wastewater, Asynchronous and Synchronous, Special Motors Applications |
| Variable torque standard;optimized torque mode;constant torque standard;16 preset speeds;Control screw terminal 0.5...1.5 mm² AWG 20...AWG 16;line side screw terminal 2 x 70...3 x 120 mm² AWG 2/0...300 kcmil;motor screw terminal 2 x 70...3 x 120 mm² AWG 2/0...300 kcmil;DC bus screw terminal 2 x 95...3 x 120 mm² AWG 2/0...300 kcmil;1;Thermal protection motor;safe torque off motor;motor phase break motor;thermal protection drive;safe torque off drive;overheating drive;overcurrent between output phases and earth drive;overload of output voltage drive;short-circuit protection drive;motor phase break drive;overvoltages on the DC bus drive;line supply overvoltage drive;line supply undervoltage drive;line supply phase loss drive;overspeed drive;break on the control circuit drive;External supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection;internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection;internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection |
| Ethernet/IP serial Modbus TCP communication |
| Performance on motor control with an overload torque up to 1.8 Tn in an open or closed loop |
| Asynchronous, synchronous, special motors: all efficiency classes, brand independent, permanent magnet motors, torque motors, conical sliding rotor, reluctance motor |
| Integrated Ethernet/IP and Modbus TCP dual port, cybersecurity (Achilles level 2) |
| Smart integration in PlantStruxure and Foxboro Evo process automation systems |
| Optimized energy efficiency, detection of energy consumption drift of the installation |
| Adaptation to the process by dedicated functions with modular design |
| Embedded safety functions STO SIL3 |
| Master/slave and load sharing with drive-to-drive capability: |
| Torque sharing on elastic coupling |
| Torque sharing on elastic coupling |
| Contextual access to technical documentation through dynamic QR code |
| Continuous and historical real-time measurements with customizable dashboards |
| Predictive maintenance |
| 237 A at 380 VAC normal duty, 213 A at 480 VAC normal duty, 201 A at 380 VAC heavy duty, 165 A at 480 VAC heavy duty amperage rating |
| 200 hp at normal duty, 150 hp at heavy duty horsepower rating |
| Without braking chopper unit |
