Square D™

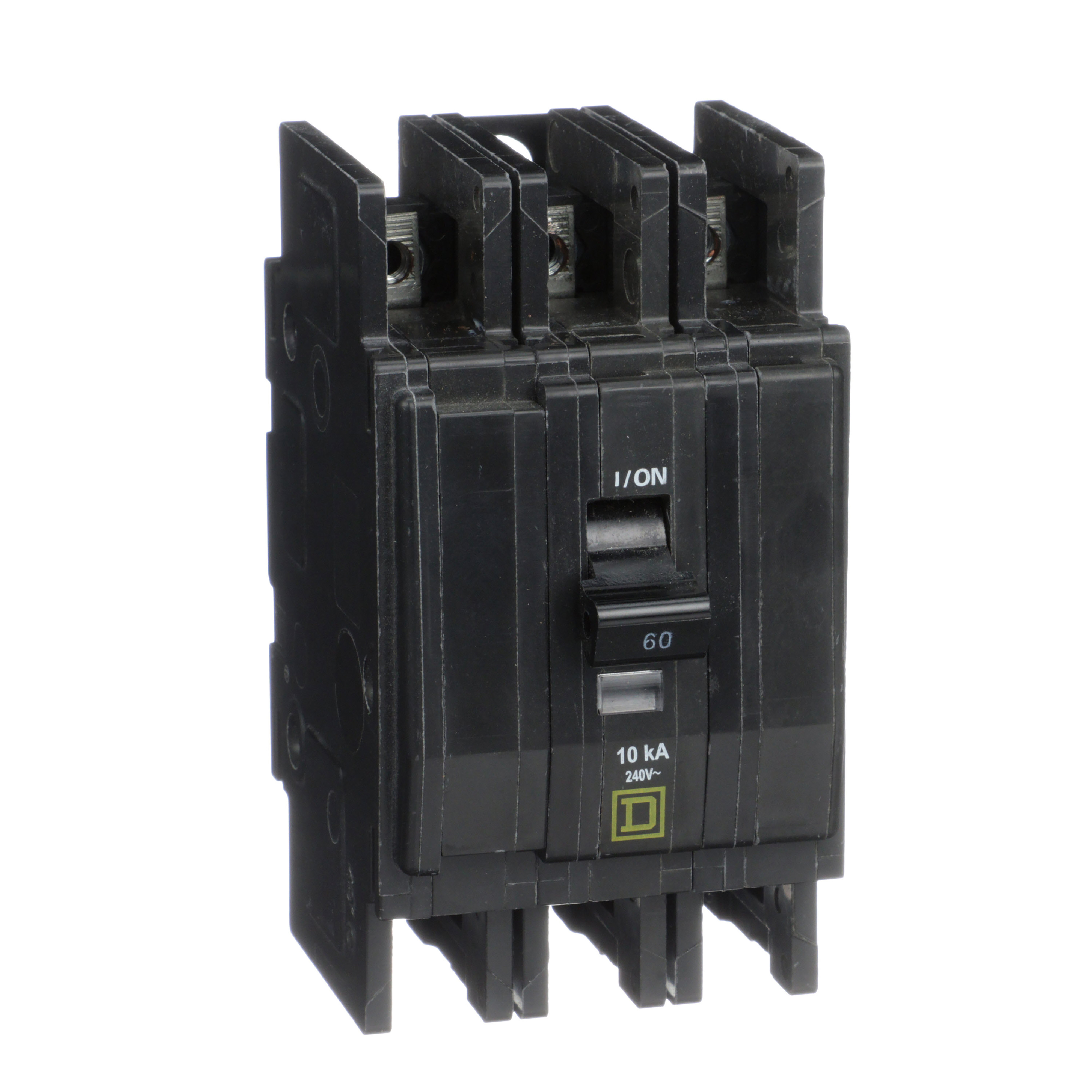

Schneider Electric QOU3605283 Type QOU Standard Miniature Circuit Breaker, 240 VAC/48 VDC, 60 A, 5 to 10 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™
Schneider Electric QOU3605283 Type QOU Standard Miniature Circuit Breaker, 240 VAC/48 VDC, 60 A, 5 to 10 kA Interrupt, 3 Poles
SKU836151
MFGR #QOU3605283
$/ea
Schneider Electric QOU3605283 MINIATURE CIRCUIT BREAKER 240V 60A,10 kA,240 V AC,240 V AC,60 A,HACR rated,QOU,QOU,miniature circuit-breaker
Schneider Electric QOU3605283 MINIATURE CIRCUIT BREAKER 240V 60A,10 kA,240 V AC,240 V AC,60 A,HACR rated,QOU,QOU,miniature circuit-breaker
Alternate Catalog Number QOU3605283 Application HACR and Switching Duty rated ARRA Compliant N Buy American Compliant N Catalog Number QOU3605283 Connection AWG 14...AWG 2 aluminium/copper; ring tongue, line side; ring tongue, load side Connection Type Line/Load Ring Tongue Country of Origin US Currency USD Depth 2.95 in Dimensions 2.95 in L x 2.25 in W x 4.05 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 0.0053 lb Gross Weight per Pack Metric 0.53 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 8.3820 in Height [Metric] 8.3820 cm Item Group 00900 Length 12.4460 in Length [Metric] 12.4460 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402967&lang=en-us Mounting Type DIN Rail Number Of Poles 3 Returnable Y Standard UL LISTED-IEC-CSA Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Sub Brand QOU Substitute Product Catalog Number QOU2PAFLA Temperature Rating 104 °F Type Miniature circuit-breaker UNSPSC 39121603 UPC 11 78590129742 UPC 12 785901297420 Warranty Description Contractual Warranty:18 months Width 7.3660 in Width [Metric] 7.3660 cm Wire Size 14 to 2 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 60 A Interrupt Rating 10 kA 120/240 V AC;10 kA 240 V AC;10 kA 120 V AC;5 kA 48 V DC kA Trip Type Thermal Magnetic Voltage Rating 120/240 V AC;240 V AC;120 V AC;48 V DC HACR and Switching Duty rated RING TONGUE (LINE AND LOAD),RING TONGUE LINE SIDE-RING TONGUE LOAD SIDE Automatically open a circuit under overload or short circuit conditions Feature common tripping of all poles Visi-Trip™ on all the circuit breakers for easy trip detection Can be flush-, surface-, or DIN rail- Mounted has lugs at both ends (cable-in/cable-out construction) Operate in any position Are fully tested, UL Listed, and CSA certified for reverse connection without restrictive line/load markings Switching duty rated 10 kA at 240 VAC, 5 kA at 48 VDC interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOU3605283 |
| Application | HACR and Switching Duty rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOU3605283 |
| Connection | AWG 14...AWG 2 aluminium/copper; ring tongue, line side; ring tongue, load side |
| Connection Type | Line/Load Ring Tongue |
| Country of Origin | US |
| Currency | USD |
| Depth | 2.95 in |
| Dimensions | 2.95 in L x 2.25 in W x 4.05 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.0053 lb |
| Gross Weight per Pack Metric | 0.53 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 8.3820 in |
| Height [Metric] | 8.3820 cm |
| Item Group | 00900 |
| Length | 12.4460 in |
| Length [Metric] | 12.4460 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402967&lang=en-us |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Returnable | Y |
| Standard | UL LISTED-IEC-CSA |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Sub Brand | QOU |
| Substitute Product Catalog Number | QOU2PAFLA |
| Temperature Rating | 104 °F |
| Type | Miniature circuit-breaker |
| UNSPSC | 39121603 |
| UPC 11 | 78590129742 |
| UPC 12 | 785901297420 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 7.3660 in |
| Width [Metric] | 7.3660 cm |
| Wire Size | 14 to 2 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 60 A |
| Interrupt Rating | 10 kA 120/240 V AC;10 kA 240 V AC;10 kA 120 V AC;5 kA 48 V DC kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120/240 V AC;240 V AC;120 V AC;48 V DC |
| HACR and Switching Duty rated |
| RING TONGUE (LINE AND LOAD),RING TONGUE LINE SIDE-RING TONGUE LOAD SIDE |
| Automatically open a circuit under overload or short circuit conditions |
| Feature common tripping of all poles |
| Visi-Trip™ on all the circuit breakers for easy trip detection |
| Can be flush-, surface-, or DIN rail- Mounted |
| has lugs at both ends (cable-in/cable-out construction) |
| Operate in any position |
| Are fully tested, UL Listed, and CSA certified for reverse connection without restrictive line/load markings |
| Switching duty rated |
| 10 kA at 240 VAC, 5 kA at 48 VDC interrupt rating |
