Square D™

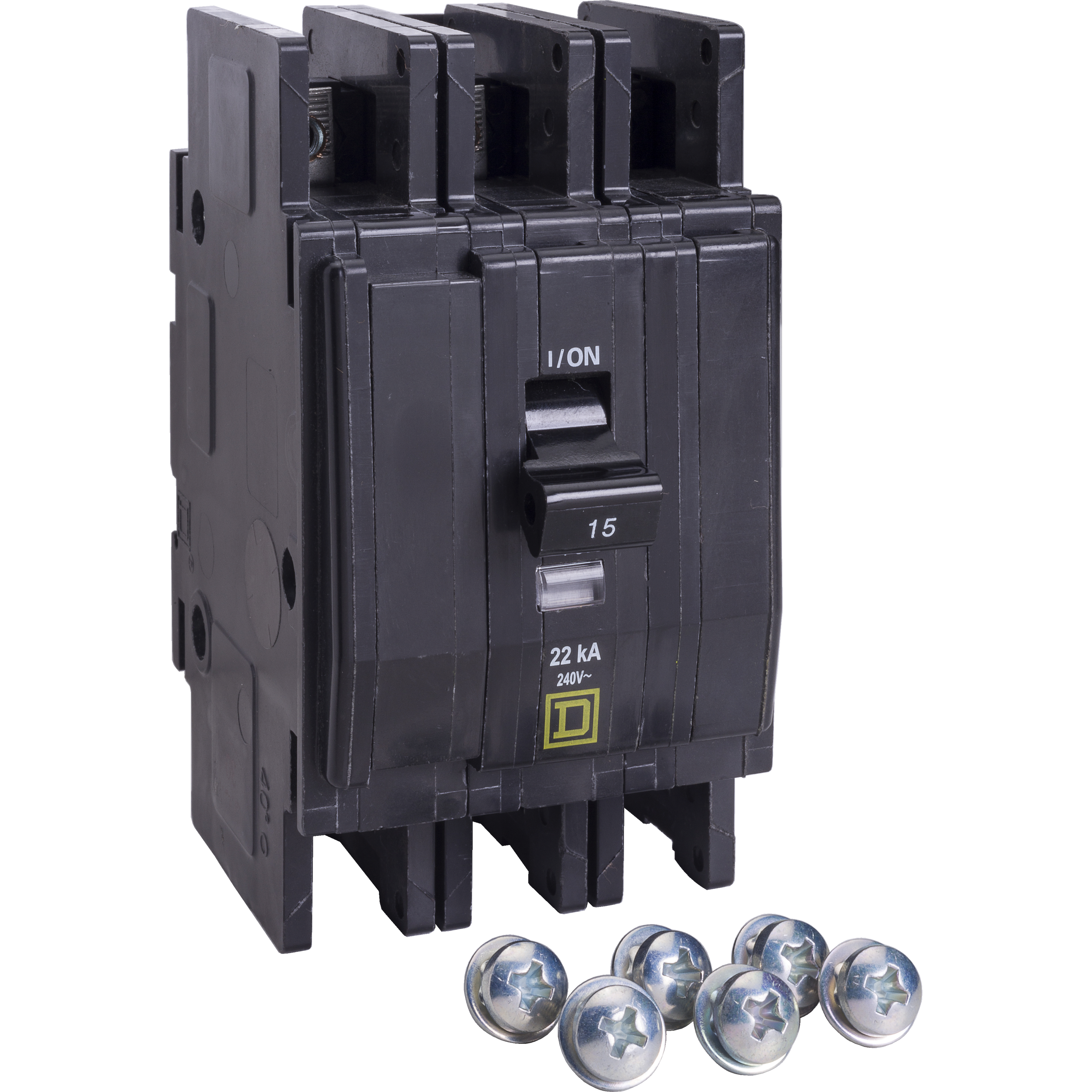

Schneider Electric QOU315VH5283 Type QOU Standard Miniature Circuit Breaker, 240 VAC, 15 A, 22 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™
Schneider Electric QOU315VH5283 Type QOU Standard Miniature Circuit Breaker, 240 VAC, 15 A, 22 kA Interrupt, 3 Poles
SKU966294
MFGR #QOU315VH5283
$/ea
Schneider Electric QOU315VH5283 MINIATURE CIRCUIT BREAKER 240V 15A,15 A,22 kA,240 V AC,240 V AC,HACR rated,QOU,QOU,miniature circuit-breaker
Schneider Electric QOU315VH5283 MINIATURE CIRCUIT BREAKER 240V 15A,15 A,22 kA,240 V AC,240 V AC,HACR rated,QOU,QOU,miniature circuit-breaker
Alternate Catalog Number QOU315VH5283 Application HACR and Switching Duty rated ARRA Compliant N Buy American Compliant N Catalog Number QOU315VH5283 Connection AWG 14...AWG 2 ALUMINIUM/COPPER,RING TONGUE, LINE SIDE- RING TONGUE, LOAD SIDE Connection Type Line/Load Ring Tongue Country of Origin US Currency USD Depth 2.95 in Dimensions 2.95 in L x 2.25 in W x 4.05 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 5.3070 lb Gross Weight per Pack Metric 530.70 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 10.2870 in Height [Metric] 10.2870 cm Item Group 00900 Length 7.6960 in Length [Metric] 7.6960 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61592194&lang=en-us Mounting Type DIN Rail Number Of Poles 3 Returnable N Standard IEC-CSA-UL LISTED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Sub Brand QOU Substitute Product Catalog Number BCV Temperature Rating 104 °F Type Type QOU Standard UNSPSC 39121603 UPC 11 78590182605 UPC 12 785901826057 Warranty Description Contractual Warranty:18 months Width 7.5180 in Width [Metric] 7.5180 cm Wire Size 14 to 2 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 15 A Interrupt Rating 22 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC HACR and Switching Duty rated RING TONGUE (LINE AND LOAD),RING TONGUE LINE SIDE-RING TONGUE LOAD SIDE Market leading circuit protection, designed for superior safety, quality and reliability Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners First to market innovation first and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection Saves space compact 3/4 in W design for small system footprint Faster installation fewer connections Frees gutter space no pigtails with the innovative plug-on neutral design Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button Switching duty rated
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOU315VH5283 |
| Application | HACR and Switching Duty rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOU315VH5283 |
| Connection | AWG 14...AWG 2 ALUMINIUM/COPPER,RING TONGUE, LINE SIDE- RING TONGUE, LOAD SIDE |
| Connection Type | Line/Load Ring Tongue |
| Country of Origin | US |
| Currency | USD |
| Depth | 2.95 in |
| Dimensions | 2.95 in L x 2.25 in W x 4.05 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 5.3070 lb |
| Gross Weight per Pack Metric | 530.70 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 10.2870 in |
| Height [Metric] | 10.2870 cm |
| Item Group | 00900 |
| Length | 7.6960 in |
| Length [Metric] | 7.6960 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61592194&lang=en-us |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Returnable | N |
| Standard | IEC-CSA-UL LISTED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Sub Brand | QOU |
| Substitute Product Catalog Number | BCV |
| Temperature Rating | 104 °F |
| Type | Type QOU Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590182605 |
| UPC 12 | 785901826057 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 7.5180 in |
| Width [Metric] | 7.5180 cm |
| Wire Size | 14 to 2 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 15 A |
| Interrupt Rating | 22 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| HACR and Switching Duty rated |
| RING TONGUE (LINE AND LOAD),RING TONGUE LINE SIDE-RING TONGUE LOAD SIDE |
| Market leading circuit protection, designed for superior safety, quality and reliability |
| Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners |
| First to market innovation first and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection |
| Saves space compact 3/4 in W design for small system footprint |
| Faster installation fewer connections |
| Frees gutter space no pigtails with the innovative plug-on neutral design |
| Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button |
| Switching duty rated |
