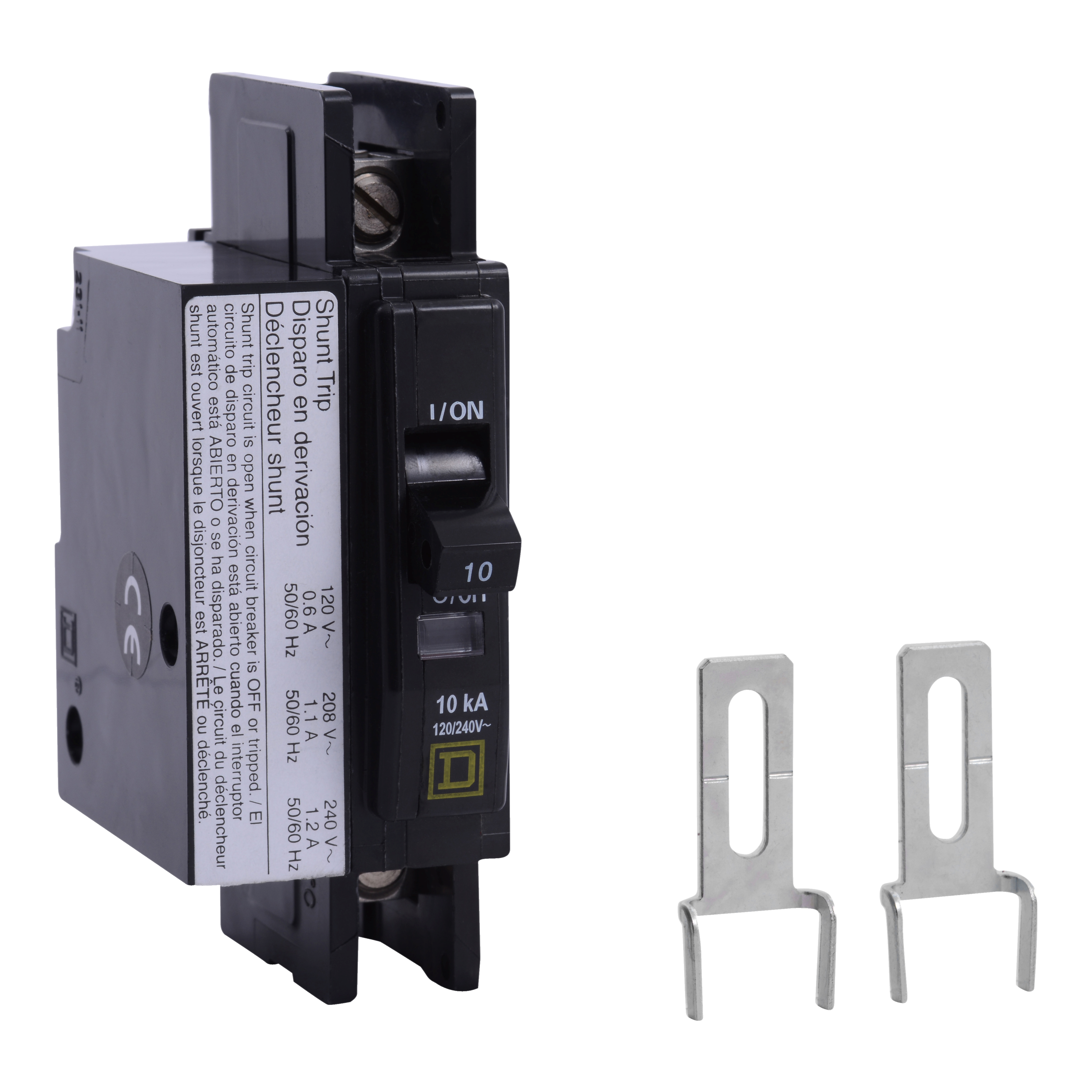

Schneider Electric QOU1101021 Type QOU Standard Miniature Circuit Breaker, 120/240 VAC/48 VDC, 10 A, 10 kA Interrupt, 1 Pole
Custom_Product_Images_Illustration
Schneider Electric QOU1101021 Type QOU Standard Miniature Circuit Breaker, 120/240 VAC/48 VDC, 10 A, 10 kA Interrupt, 1 Pole
SKU429570
MFGR #QOU1101021
Your Cost: $252.45/ea
Schneider Electric QOU1101021 MINIATURE CIRCUIT BREAKER 120/240V 10A,10 kA,120/240 V AC,100 A,120/240 V AC,HACR rated,QOU,QOU,miniature circuit-breaker
Schneider Electric QOU1101021 MINIATURE CIRCUIT BREAKER 120/240V 10A,10 kA,120/240 V AC,100 A,120/240 V AC,HACR rated,QOU,QOU,miniature circuit-breaker
Alternate Catalog Number QOU1101021 Application QOU ARRA Compliant N Buy American Compliant N Catalog Number QOU1101021 Connection AWG 14...AWG 2 ALUMINIUM/COPPER,SLOTTED BOX LUGS, LINE SIDE-SLOTTED BOX LUGS, LOAD SIDE Connection Type Line/Load Slotted Box Lug Country of Origin MX Dimensions 2.95 in L x 1.5 in W x 4.05 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 0.6600 lb Harmonization Tariff Schedule Code 8536200020 Height 4.05 in Item Group 00900 Length 2.95 in Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401773&lang=en-us Mounting Type DIN Rail Number Of Poles 1 Phase 1 Returnable N Standard IEC-CSA-UL LISTED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Sub Brand QOU Temperature Rating 104 °F Type Type QOU Standard UNSPSC 39121603 UPC 11 78590175204 UPC 12 785901752042 Warranty Description Contractual Warranty:18 months Width 1.5 in Wire Size 14 to 2 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 10 A Interrupt Rating 10 kA Trip Type Shunt Voltage Rating 120/240 VAC/48 VDC QOU BOX LUGS LINE SIDE SLOTTED-BOX LUGS LOAD SIDE SLOTTED,SLOTTED BOX LUGS (LINE AND LOAD) Market leading circuit protection, designed for superior safety, quality and reliability Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners First to market innovation first and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection Saves space compact 3/4 in W design for small system footprint Faster installation fewer connections Frees gutter space no pigtails with the innovative plug-on neutral design Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOU1101021 |
| Application | QOU |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOU1101021 |
| Connection | AWG 14...AWG 2 ALUMINIUM/COPPER,SLOTTED BOX LUGS, LINE SIDE-SLOTTED BOX LUGS, LOAD SIDE |
| Connection Type | Line/Load Slotted Box Lug |
| Country of Origin | MX |
| Dimensions | 2.95 in L x 1.5 in W x 4.05 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.6600 lb |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 4.05 in |
| Item Group | 00900 |
| Length | 2.95 in |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401773&lang=en-us |
| Mounting Type | DIN Rail |
| Number Of Poles | 1 |
| Phase | 1 |
| Returnable | N |
| Standard | IEC-CSA-UL LISTED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Sub Brand | QOU |
| Temperature Rating | 104 °F |
| Type | Type QOU Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590175204 |
| UPC 12 | 785901752042 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 1.5 in |
| Wire Size | 14 to 2 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 10 A |
| Interrupt Rating | 10 kA |
| Trip Type | Shunt |
| Voltage Rating | 120/240 VAC/48 VDC |
| QOU |
| BOX LUGS LINE SIDE SLOTTED-BOX LUGS LOAD SIDE SLOTTED,SLOTTED BOX LUGS (LINE AND LOAD) |
| Market leading circuit protection, designed for superior safety, quality and reliability |
| Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners |
| First to market innovation first and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection |
| Saves space compact 3/4 in W design for small system footprint |
| Faster installation fewer connections |
| Frees gutter space no pigtails with the innovative plug-on neutral design |
| Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button |
