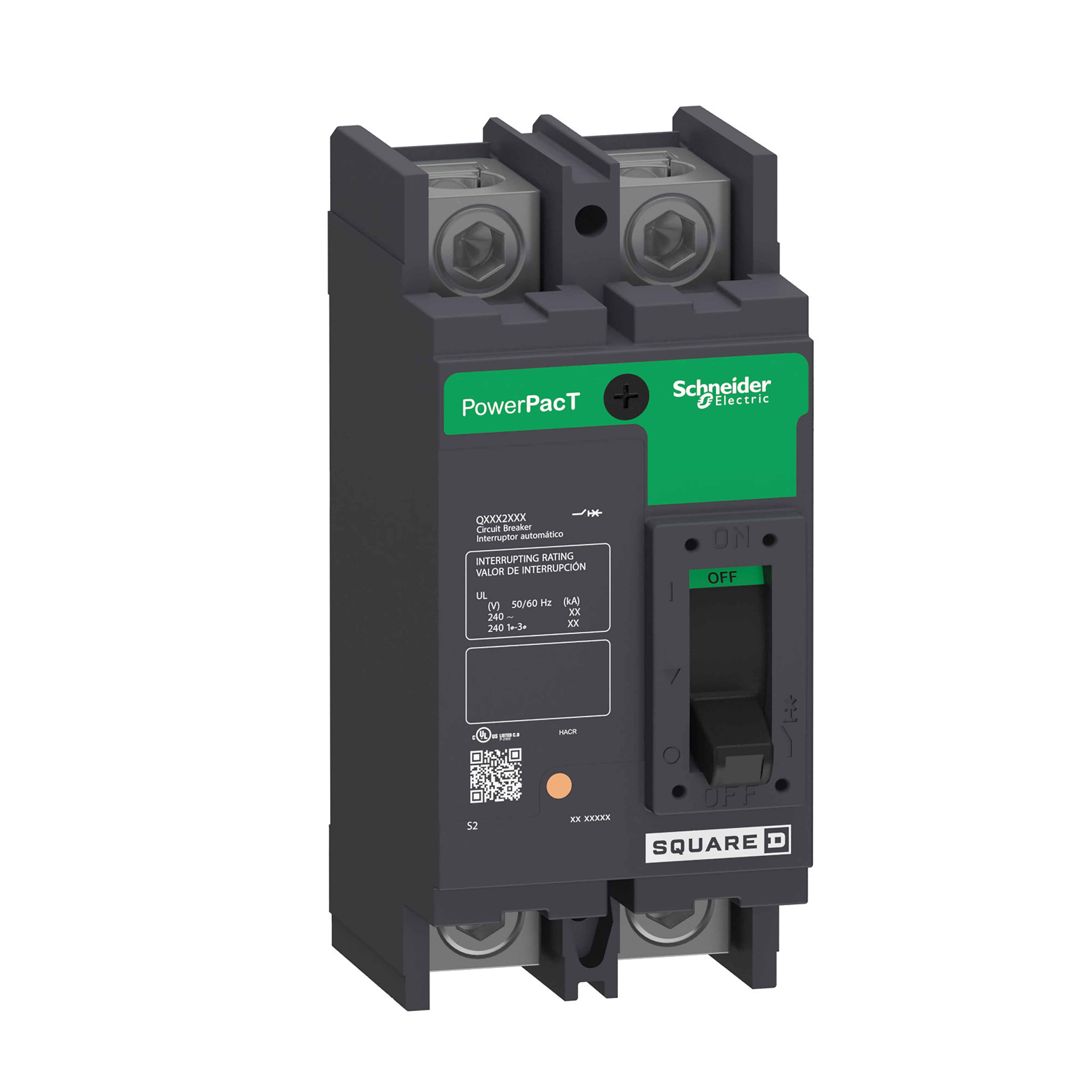

Schneider Electric PowerPact™ QBM22175TN Molded Case Circuit Breaker, 240 VAC, 175 A, 10 kA Interrupt, 2 Poles

Custom_Product_Images_Illustration

SKU520455

MFGR #QBM22175TN

Your Cost: $826.44/ea

Schneider Electric QBM22175TN MOLDED CASE CIRCUIT BREAKER 240V 175A

: Alternate Catalog Number
QBM22175TN
ARRA Compliant
N
Buy American Compliant
N
Catalog Number
QBM22175TN
Connection
LUGS LINE AWG 4...300 KCMIL ALUMINIUM/COPPER-TERMINAL NUT LOAD
Connection Type
Line Lug/Terminal Nut Load
Country of Origin
MX
Currency
USD
Dimensions
6.47 in H x 3 in W x 3.93 in D
Enclosure Type
NEMA AB1
EU RoHS Indicator
Y
Frame
Q Series
Frequency Rating
50/60 Hz
Gross Weight Per Pack
3.0600 lb
Gross Weight per Pack Metric
1.48
Gross Weight UOM Metric
kg
Harmonization Tariff Schedule Code
8536200020
Height
5.51 in
Height [Metric]
14.1270 cm
Item Group
00187
Length
9.66 in
Length [Metric]
24.7650 cm
Material Composition Declaration
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=435061&lang=en-us
Mounting Type
Unit
Number Of Poles
2
Phase
1 pH
Returnable
N
Standard
UL LISTED-CSA-IEC
Substitute Product Catalog Number
QBPA
Temperature Rating
-13 to 158 deg F, 104 deg F
Trip Range
1200 to 2400 A
Type
Type QBM
UNSPSC
39121616
UPC 11
78590156553
UPC 12
785901565536
Warranty Description
Contractual Warranty:18 months
Width
5.76 in
Width [Metric]
14.7570 cm
Wire Size
4 AWG to 300 kcmil Al/Cu
Stock Status
NONSTOCK
Brand
Square D™
Manufacturer
Schneider Electric
Amperage Rating
175 A
Interrupt Rating
10 kA
Trip Type
Thermal Magnetic
Voltage Rating
240 VAC
: 360 Degree View
Brochure
Catalog
Computer~Aided [CAD|BIM] Model
Seller Home Page
Spec Sheet
Tech Drawing
User Manual
: UNIT MOUNT

Studs ON-OFF (O) end

Alternate Catalog Number	QBM22175TN
ARRA Compliant	N
Buy American Compliant	N
Catalog Number	QBM22175TN
Connection	LUGS LINE AWG 4...300 KCMIL ALUMINIUM/COPPER-TERMINAL NUT LOAD
Connection Type	Line Lug/Terminal Nut Load
Country of Origin	MX
Currency	USD
Dimensions	6.47 in H x 3 in W x 3.93 in D
Enclosure Type	NEMA AB1
EU RoHS Indicator	Y
Frame	Q Series
Frequency Rating	50/60 Hz
Gross Weight Per Pack	3.0600 lb
Gross Weight per Pack Metric	1.48
Gross Weight UOM Metric	kg
Harmonization Tariff Schedule Code	8536200020
Height	5.51 in
Height [Metric]	14.1270 cm
Item Group	00187
Length	9.66 in
Length [Metric]	24.7650 cm
Material Composition Declaration	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=435061&lang=en-us
Mounting Type	Unit
Number Of Poles	2
Phase	1 pH
Returnable	N
Standard	UL LISTED-CSA-IEC
Substitute Product Catalog Number	QBPA
Temperature Rating	-13 to 158 deg F, 104 deg F
Trip Range	1200 to 2400 A
Type	Type QBM
UNSPSC	39121616
UPC 11	78590156553
UPC 12	785901565536
Warranty Description	Contractual Warranty:18 months
Width	5.76 in
Width [Metric]	14.7570 cm
Wire Size	4 AWG to 300 kcmil Al/Cu
Stock Status	NONSTOCK
Brand	Square D™
Manufacturer	Schneider Electric
Amperage Rating	175 A
Interrupt Rating	10 kA
Trip Type	Thermal Magnetic
Voltage Rating	240 VAC
