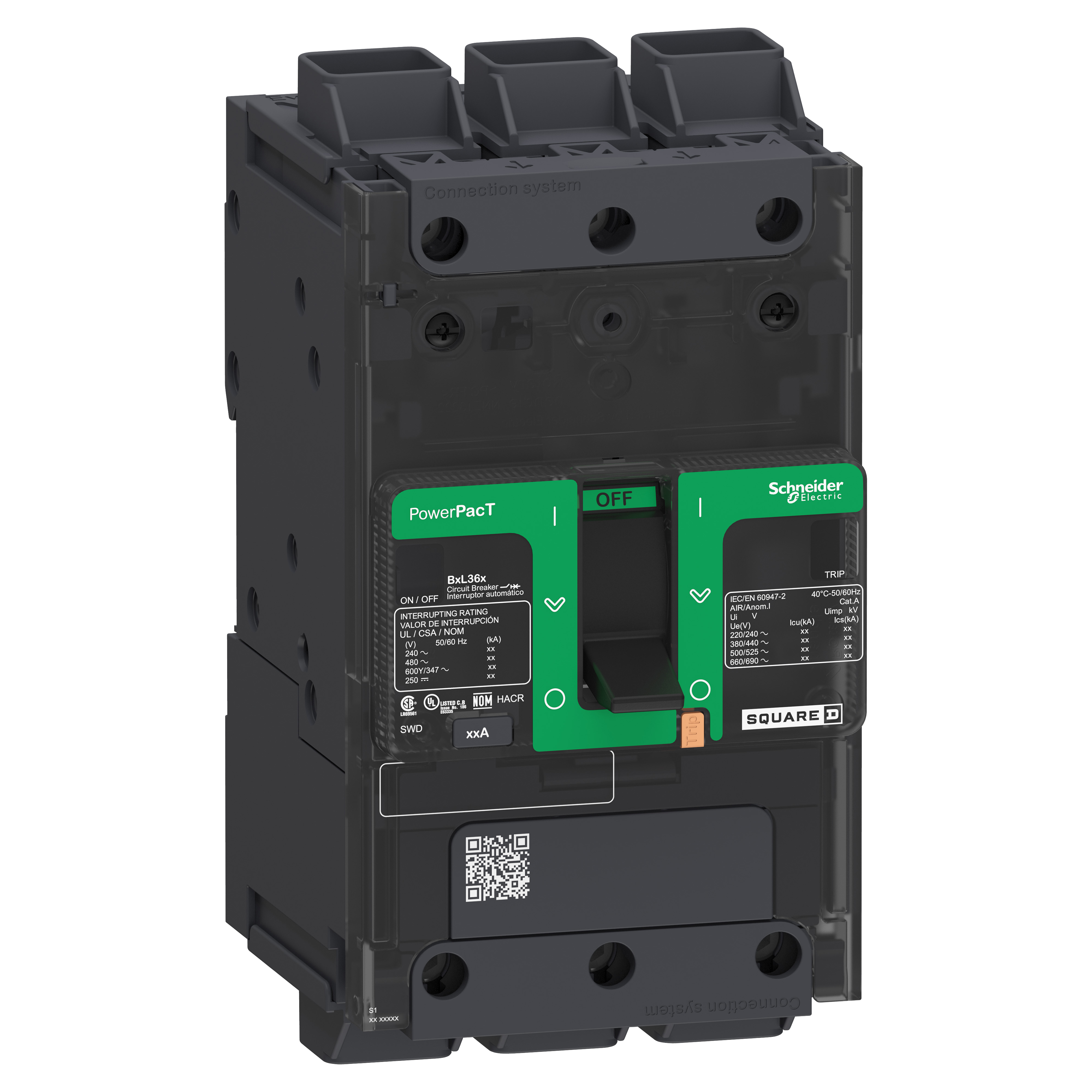

Schneider Electric PowerPact™ EverLink BGL36050 Molded Case Circuit Breaker, 600Y/347 VAC, 50 A, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600Y/347 VAC Interrupt, 3 Poles, Thermal/Magnetic Trip
Molded Case Circuit Breakers
1369948
MFG #: BGL36050
Square D™
856.60000
/ ea
Schneider Electric PowerPact™ EverLink Molded Case Circuit Breaker, 600Y/347 VAC, 50 A, 50/60 Hz Frequency, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600Y/347 VAC Interrupt, B Frame, Thermal/Magnetic Trip, 480 to 720 A Trip, 3 Pole, 3 ph, Toggle Actuator, Line/Load Lug Connection, 14 to 3/0 AWG/6 to 2/0 AWG Al/Cu Wire, NEMA AB4/IP40 Enclosure, DIN Rail/Threaded Mounting, -13 to 158 deg F, 3.19 in W x 4.09 in D x 5.39 in H Dimensions, Gray
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=13874838360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_9KJEVN7GRBCHIZ3Y.pdf(Brochure URL)
- Brochure URL - 11003_HEG1U8LF92ZOSQD5.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_SGBMOTZFWX57P6YL.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_1EUAIWB4XH0V5GTJ.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_HFQ8G0PJUC4T9OWV.pdf(Tech Drawing URL)
- User Manual URL - 11003_NT092DJ51MSW6LYG.pdf(User Manual URL)
- Video - https://www.youtube.com/embed/4djGstrxN04(Video)
- Tech Drawing URL - 11003_Z7V61LXTU8Y52G9N.pdf(Tech Drawing URL)
- User Manual URL - 11003_O1L3GHD0TNYEJ9SI.pdf(User Manual URL)
- Applications
- Features
| Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Building and Industrial Building Applications |
| Tackles last minute changes, when they come up, be ready with one-click field installable accessories and the industry's widest range of operating mechanisms |
| PowerPact™ B-frame circuit breakers are designed and certified to multiple standards in order to meet the needs of customers who have global designs or build and sell in regions with various standards |
| B-frame circuit breakers have the smallest footprint in the PowerPact™ family of industrial molded case circuit breaker products |
| PowerPact™ B-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits |
| The B-frame product offers a flexible platform in which customer needs for various types of mounting and terminations can be accommodated with simple alterations of the base product |
| Field installable features and termination variety empower the customer to configure the product to their exact needs for control panel or power panel applications |
