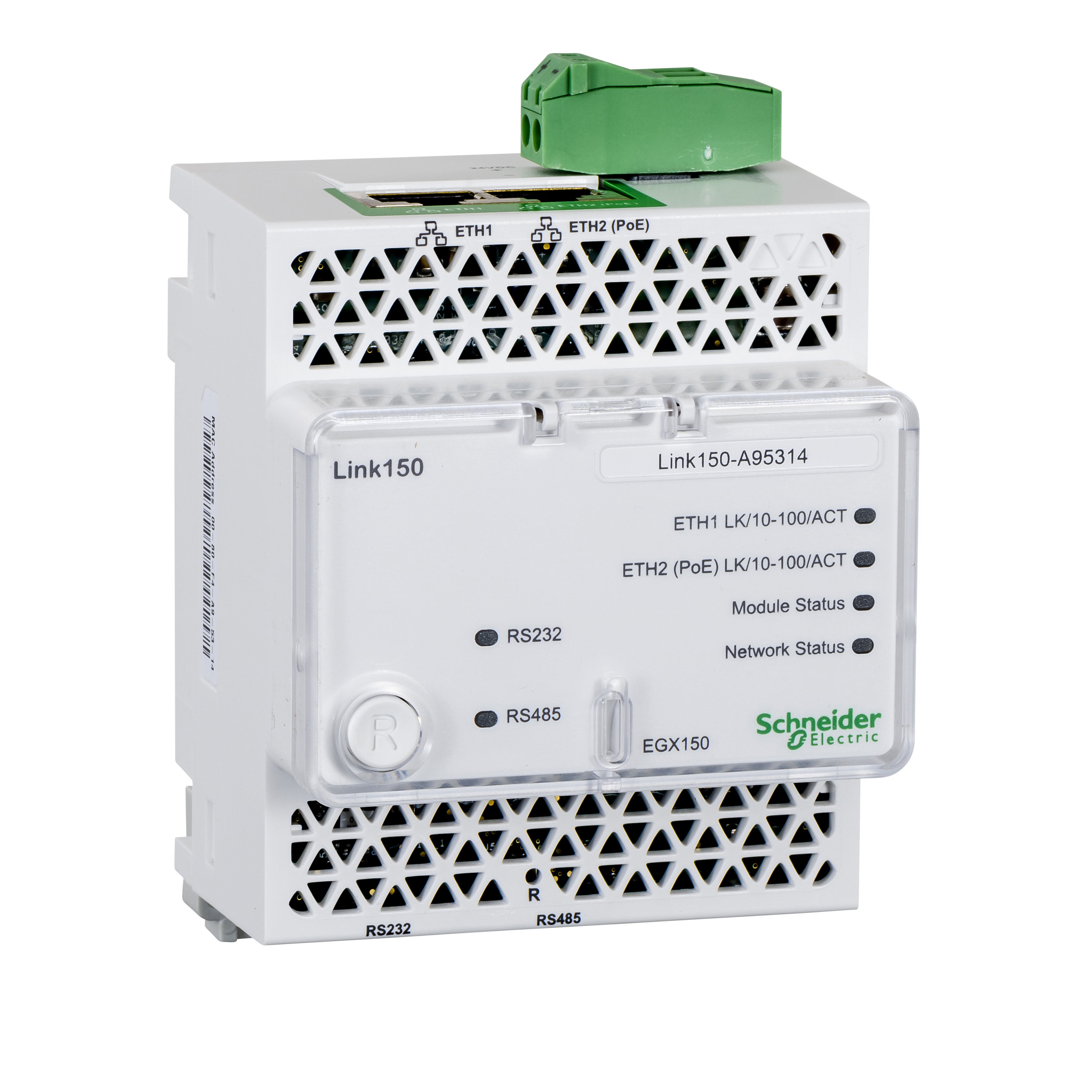

Schneider Electric PowerLogic® Square D™ EGX150 Link150 Ethernet Gateway, Modbus/Serial/HTTP/FTP/SNMP (MIB II)/Modbus TCP/IP Protocol, Ethernet TCP/IP Interface, 24 VDC, 5 W Power Output
Gateways
1296209
MFG #: EGX150
Square D™
1136.31000
/ ea
Schneider Electric PowerLogic® Square D™ Ethernet Gateway, Series: Link150, Modbus/Serial/HTTP/FTP/SNMP (MIB II)/Modbus TCP/IP Protocol, Ethernet TCP/IP Interface, 24 VDC, 5 W Power Output, 19200/2400/4800/9600/38400/56000/57600 bps Data Transfer Rate, RS232/RS485/10/100BASE TX Port, 4 Ports, IP20/IP30 Enclosure, 2.83 in H x 4.13 in W x 2.79 in D Dimensions, For Use With: Modbus Slave Device, Environmental Conditions: -13 to 158 deg F Operating Temperature, -40 to 185 deg F Storage Temperature, 5 to 95% Relative Humidity
- 360 Degree View URL - index.html?pid=11003&id=14204434360Den&ext=webp(360 Degree View URL)
- Brochure URL - 62c993af553acc874911a27c3d7905e15058969d.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=EGX150.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_OJ65TSKV9CBHX80E.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_5GS67L81CO30KITX.pdf(Service Manual URL)
- Spec Sheet URL - 11003_V71KL0D3U9EZWBO5.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_6KSIP4DBC9JU0Y2Q.dwg(Tech Drawing URL)
- User Manual URL - 11003_1HZS5T0ERMVJPN3A.pdf(User Manual URL)
- Video - https://www.youtube.com/embed/zM6QQgFwFlo&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn(Video)
- Applications
- Features
| Energy Management, Power Distribution, Building Automation and Factory Automation Applications |
| The user interface is secured by requiring the users name and password for login |
| Advanced features to allow users to specify which Modbus TCP/IP master devices may access attached serial slave devices |
| Modbus TCP/IP filtering feature |
| Allows user to specify the level of access for each master device as read only or full access |
| Web pages provide easy configuration and setup |
| Easy to install and setup |
| Easy to maintain |
| Compatible with Schneider electric software offerings (EcoStruxure power monitoring Expert, PowerSCADA Operations, etc) |
| Proven Modbus to Ethernet protocol conversion |
