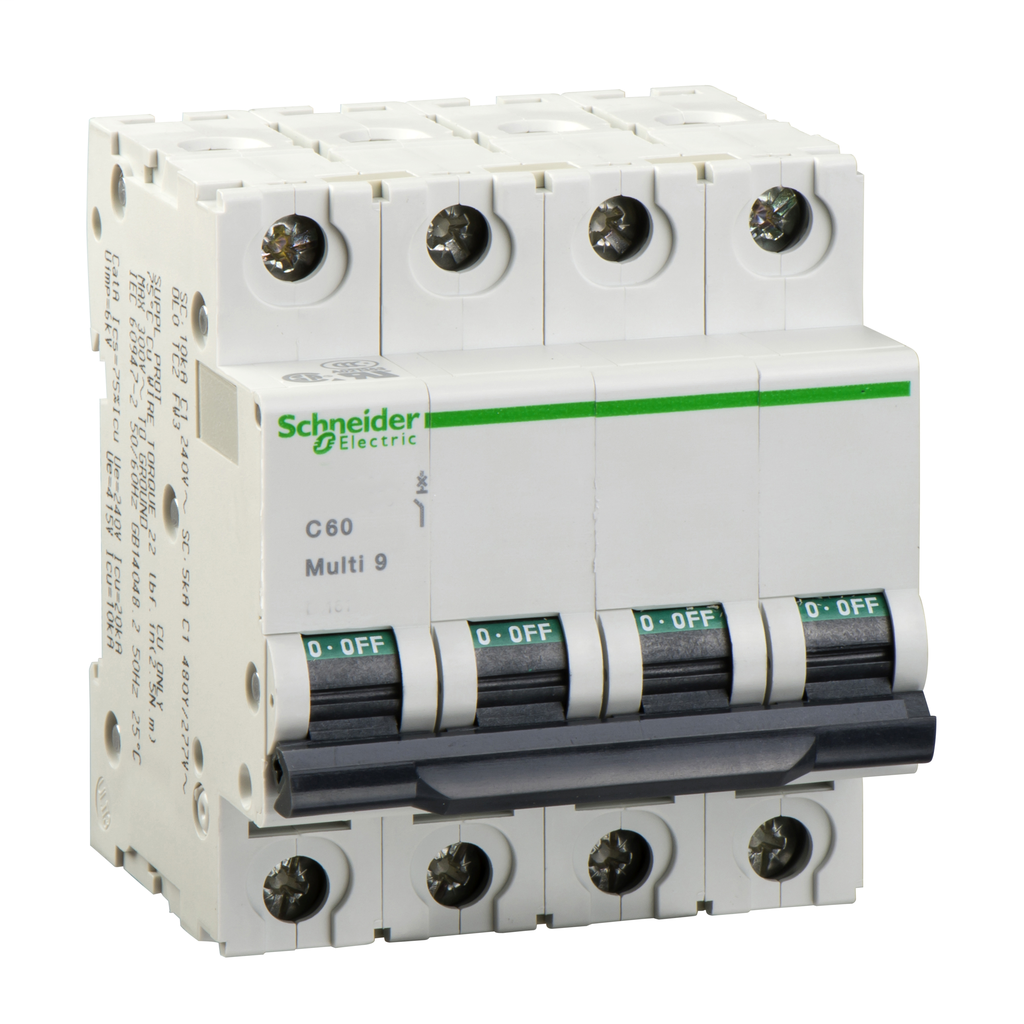

Schneider Electric MG24477 Multi 9™ C60N Supplementary Protector, 480Y/277 VAC, 2 A, 5 kA at 480Y/277 VAC Interrupt, 4 Poles
Custom_Product_Images_Illustration
Schneider Electric MG24477 Multi 9™ C60N Supplementary Protector, 480Y/277 VAC, 2 A, 5 kA at 480Y/277 VAC Interrupt, 4 Poles
SKU374716
MFGR #MG24477
Your Cost: $458.61/ea
Schneider Electric MG24477 SUPPLEMENTARY PROTECTOR 480Y/277V 2A 4P,-30 to 70deg.C (-22 to 158deg.F),2 A,2.48 in,3.00 in,3.19 in,4-Poles,480Y/277V,5 kA 480Y/277 VAC,50/60 Hz,DIN Rail Mount,Line Box Lug - Load Box Lug,Multi 9,Multi 9 - C60,Multi 9 - C60N Circuit Breaker,Overcurrent protection within appliances or electrical equipment where branch circuit breaker protection is provided or not required,Relative Humidity 95 at 131deg.F (55deg.C),UL Certified, IEC Rated
Schneider Electric MG24477 SUPPLEMENTARY PROTECTOR 480Y/277V 2A 4P,-30 to 70deg.C (-22 to 158deg.F),2 A,2.48 in,3.00 in,3.19 in,4-Poles,480Y/277V,5 kA 480Y/277 VAC,50/60 Hz,DIN Rail Mount,Line Box Lug - Load Box Lug,Multi 9,Multi 9 - C60,Multi 9 - C60N Circuit Breaker,Overcurrent protection within appliances or electrical equipment where branch circuit breaker protection is provided or not required,Relative Humidity 95 at 131deg.F (55deg.C),UL Certified, IEC Rated
Actuator Toggle Actuator Type Toggle Application OVERCURRENT PROTECTION WITHIN APPLIANCES OR ELECTRICAL EQUIPMENT WHERE BRANCH CIRCUIT BREAKER PROTECTION IS PROVIDED OR NOT REQUIRED ARRA Compliant N Buy American Compliant N Catalog Number MG24477 Color Gray Connection LINE: BOX LUG - LOAD: BOX LUG Connection Type Line/Load Box Lug Country of Origin FR Dimensions 3.19 in H x 2.83 in W x 2.87 in D Enclosure Type IP20/IP40 Environmental Conditions RELATIVE HUMIDITY: 95 AT 131°F (55°C) EU RoHS Indicator N Frame M Frame Frequency Rating 50/60 Hz Gross Weight Per Pack 1.1200 lb Height 3.19 in Item Group 00908 Length 3 in Mounting Type Clip-On/DIN Rail Number Of Poles 4 Operating Temperature -30 to 70 °C Phase 3 pH Returnable N Series C60N Standard UL CERTIFIED, IEC RATED Standards ARRA CompliantBuy American Act CompliantUL 1077 File No. E90509GB 14048.2CCC CertifiedCSA C22.2 No. 235CSA 179014EN/IEC 60947-2 Sub Brand Multi 9 Temperature Rating -22 to 158 °F Trip Range 8.5X In AC Type Type-C UNSPSC 39121603 UPC 11 78590188072 UPC 12 785901880721 Width 2.48 in Wire Size 14 to 4 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 2 A Interrupt Rating 5 kA at 480Y/277 VAC Trip Type Thermal Magnetic Voltage Rating 480Y/277 VAC OVERCURRENT PROTECTION WITHIN APPLIANCES OR ELECTRICAL EQUIPMENT WHERE BRANCH CIRCUIT BREAKER PROTECTION IS PROVIDED OR NOT REQUIRED DIN RAIL MOUNT Trip free mechanism contacts cannot be held in the on position when the C60 is tripped automatically Positive indication of contact disconnect Green mechanical indication on front face of device shows that all poles are open Overcurrent protection for all application types Magnetic release operates from 7 to 10 times ampere rating Allows locking in ON-OFF position using padlock attachment
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Application | OVERCURRENT PROTECTION WITHIN APPLIANCES OR ELECTRICAL EQUIPMENT WHERE BRANCH CIRCUIT BREAKER PROTECTION IS PROVIDED OR NOT REQUIRED |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | MG24477 |
| Color | Gray |
| Connection | LINE: BOX LUG - LOAD: BOX LUG |
| Connection Type | Line/Load Box Lug |
| Country of Origin | FR |
| Dimensions | 3.19 in H x 2.83 in W x 2.87 in D |
| Enclosure Type | IP20/IP40 |
| Environmental Conditions | RELATIVE HUMIDITY: 95 AT 131°F (55°C) |
| EU RoHS Indicator | N |
| Frame | M Frame |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 1.1200 lb |
| Height | 3.19 in |
| Item Group | 00908 |
| Length | 3 in |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 4 |
| Operating Temperature | -30 to 70 °C |
| Phase | 3 pH |
| Returnable | N |
| Series | C60N |
| Standard | UL CERTIFIED, IEC RATED |
| Standards | ARRA CompliantBuy American Act CompliantUL 1077 File No. E90509GB 14048.2CCC CertifiedCSA C22.2 No. 235CSA 179014EN/IEC 60947-2 |
| Sub Brand | Multi 9 |
| Temperature Rating | -22 to 158 °F |
| Trip Range | 8.5X In AC |
| Type | Type-C |
| UNSPSC | 39121603 |
| UPC 11 | 78590188072 |
| UPC 12 | 785901880721 |
| Width | 2.48 in |
| Wire Size | 14 to 4 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 2 A |
| Interrupt Rating | 5 kA at 480Y/277 VAC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 480Y/277 VAC |
| OVERCURRENT PROTECTION WITHIN APPLIANCES OR ELECTRICAL EQUIPMENT WHERE BRANCH CIRCUIT BREAKER PROTECTION IS PROVIDED OR NOT REQUIRED |
| DIN RAIL MOUNT |
| Trip free mechanism contacts cannot be held in the on position when the C60 is tripped automatically |
| Positive indication of contact disconnect |
| Green mechanical indication on front face of device shows that all poles are open |
| Overcurrent protection for all application types |
| Magnetic release operates from 7 to 10 times ampere rating |
| Allows locking in ON-OFF position using padlock attachment |
