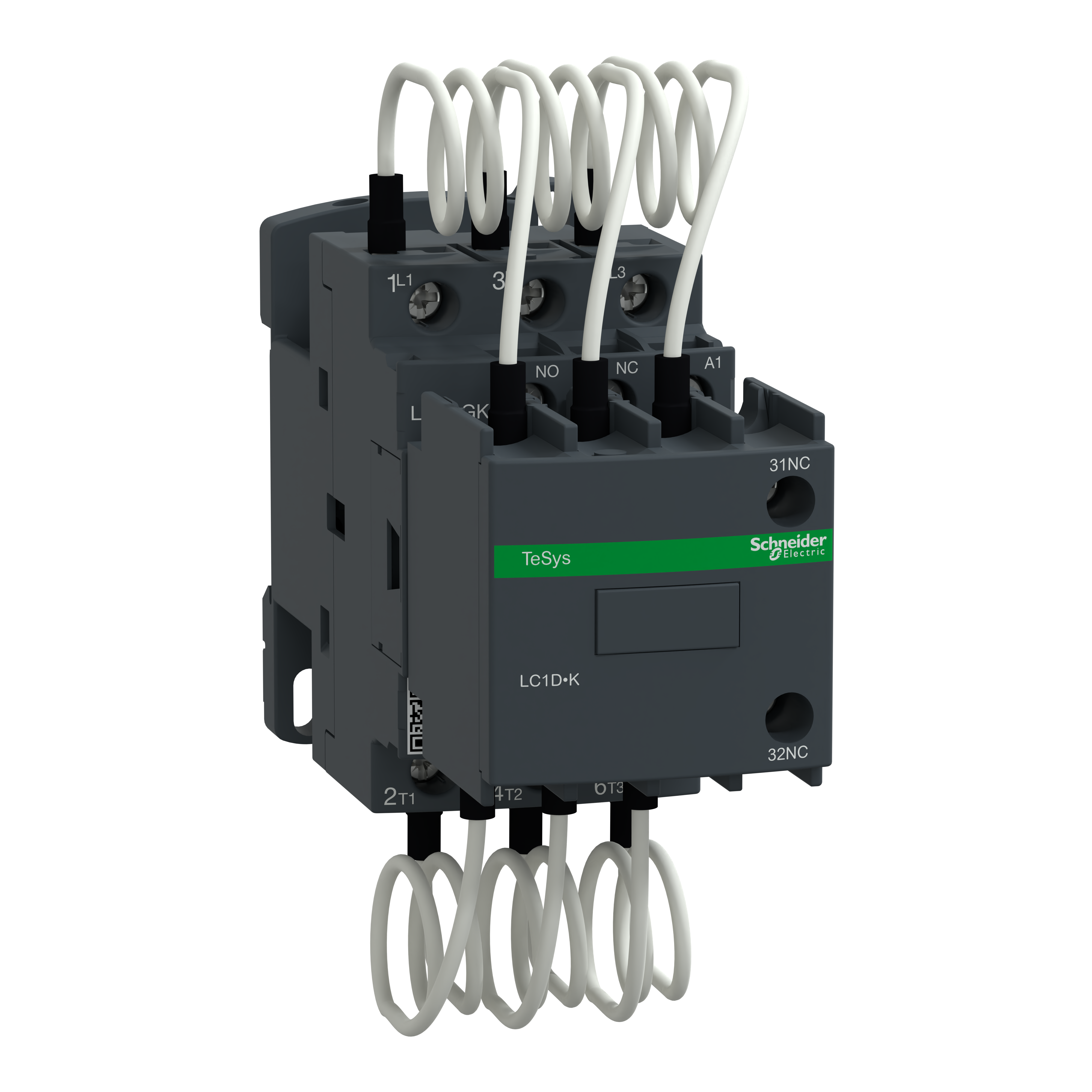

Schneider Electric LC1DGKF7 LC1DGK Series Capacitor Duty Contactor, 110 VAC v coil, 3NO contact, 3 poles
Schneider Electric LC1DGKF7 LC1DGK Series Capacitor Duty Contactor, 110 VAC v coil, 3NO contact, 3 poles
SKUPDW~13597644
MFGR #LC1DGKF7
Your Cost: $422.16/ea
List: Schneider Electric LC1DGKF7, Capacitor Duty Contactor, LC1DGK Series, 110 VAC Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 1 NO + 2 NC Auxiliary Contacts, Screw clamp Connection, 4.92 in H x 1.77 in W x 50 in D Size, Screw Clamp Terminal, IP20 Enclosure, 240 cycles Operating Cycles, 23 to 140 deg F Operating, DIN Rail Mounting, 4.92 in H x 1.77 in W x 5.00 in D Dimensions
Schneider Electric LC1DGKF7, Capacitor Duty Contactor, LC1DGK Series, 110 VAC Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 1 NO + 2 NC Auxiliary Contacts, Screw clamp Connection, 4.92 in H x 1.77 in W x 50 in D Size, Screw Clamp Terminal, IP20 Enclosure, 240 cycles Operating Cycles, 23 to 140 deg F Operating, DIN Rail Mounting, 4.92 in H x 1.77 in W x 5.00 in D Dimensions
Alternate Catalog Number LC1DGKF7 Application Power factor correction,Control ARRA Compliant N Buy American Compliant N Catalog Number LC1DGKF7 Country of Origin FR Currency USD EU RoHS Indicator Y Gross Volume Per Pack 226.49 Gross Volume per Pack Metric 3711.49 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 5.5500 lb Gross Weight per Pack Metric 555.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 7.0000 in Height [Metric] 7.0000 cm Length 23.0000 in Length [Metric] 23.0000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432409996&lang=en-us Mounting DIN rail;plate Returnable N Standard IECEE CB Scheme;UKCA;EN/IEC 60947-1;EN/IEC 60947-4-1;IEC 60335-1 Sub Brand TeSys LC1D.K;TeSys Deca UNSPSC 39121529 Warranty Description Contractual Warranty:18 months Width 20.0000 in Width [Metric] 20.0000 cm Brand Square D™ Manufacturer Schneider Electric Coil Voltage 110@50/60Hz VAC Contact Configuration 3 NO;1 NO + 2 NC instantaneous;Mechanically linked 1 NO + 2 NC IEC 60947-5-1 Type Capacitor duty contactor Power factor correction,Control The TeSys D contactors and overload relays are the largest selling line of contactors and starters in the world They offer high reliability with long mechanical and electrical life and the most complete line of accessories in the industry TeSys D contactors are available in 11 contactor ratings for the USA market for inductive motor applications from 9 up to 150 full-load amps and resistive loads up to 200 amps Designed to control and provide overload protection to motors rated up to 100 HP at 480 VAC or 125 HP at 600 VAC, TeSys D meets your needs for a majority of motor starter applications New TeSys D Green increase TeSys D range with a new electronic coil with up to 80% less consumption than TeSys D standard AC or DC coil TeSys D Green contactor simplify your maintenance services with 90% less references needed.TeSys D Green contactor associated with TeSys LR9D electronic overload relay reduces heat generation and energy consumption up to 50 High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR Three levels of ratings: Available at 100 kA on systems with fuses, up to 600 volts Available at 65 kA on systems with circuit breakers, up to 480 volts and up to 32 amps Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets Simple to select the right product 3-pole and 4-pole contactor versions available All contactors include built-in auxiliary contacts All screw connections have IP20 finger-safe terminals with both North American and International terminal markings TeSys D contactors can be panel mounted with screws or DIN rail mounted Easily installed accessories Auxiliary contact blocks with serrated wiping action Front mount dust tight auxiliary contact blocks Pneumatic time delay blocks
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1DGKF7 |
| Application | Power factor correction,Control |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LC1DGKF7 |
| Country of Origin | FR |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 226.49 |
| Gross Volume per Pack Metric | 3711.49 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 5.5500 lb |
| Gross Weight per Pack Metric | 555.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 7.0000 in |
| Height [Metric] | 7.0000 cm |
| Length | 23.0000 in |
| Length [Metric] | 23.0000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432409996&lang=en-us |
| Mounting | DIN rail;plate |
| Returnable | N |
| Standard | IECEE CB Scheme;UKCA;EN/IEC 60947-1;EN/IEC 60947-4-1;IEC 60335-1 |
| Sub Brand | TeSys LC1D.K;TeSys Deca |
| UNSPSC | 39121529 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 20.0000 in |
| Width [Metric] | 20.0000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Coil Voltage | 110@50/60Hz VAC |
| Contact Configuration | 3 NO;1 NO + 2 NC instantaneous;Mechanically linked 1 NO + 2 NC IEC 60947-5-1 |
| Type | Capacitor duty contactor |
| Power factor correction,Control |
| The TeSys D contactors and overload relays are the largest selling line of contactors and starters in the world |
| They offer high reliability with long mechanical and electrical life and the most complete line of accessories in the industry |
| TeSys D contactors are available in 11 contactor ratings for the USA market for inductive motor applications from 9 up to 150 full-load amps and resistive loads up to 200 amps |
| Designed to control and provide overload protection to motors rated up to 100 HP at 480 VAC or 125 HP at 600 VAC, TeSys D meets your needs for a majority of motor starter applications |
| New TeSys D Green increase TeSys D range with a new electronic coil with up to 80% less consumption than TeSys D standard AC or DC coil |
| TeSys D Green contactor simplify your maintenance services with 90% less references needed.TeSys D Green contactor associated with TeSys LR9D electronic overload relay reduces heat generation and energy consumption up to 50 |
| High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR |
| Three levels of ratings: Available at 100 kA on systems with fuses, up to 600 volts |
| Available at 65 kA on systems with circuit breakers, up to 480 volts and up to 32 amps |
| Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets |
| Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets |
| Simple to select the right product |
| 3-pole and 4-pole contactor versions available |
| All contactors include built-in auxiliary contacts |
| All screw connections have IP20 finger-safe terminals with both North American and International terminal markings |
| TeSys D contactors can be panel mounted with screws or DIN rail mounted |
| Easily installed accessories |
| Auxiliary contact blocks with serrated wiping action |
| Front mount dust tight auxiliary contact blocks |
| Pneumatic time delay blocks |
