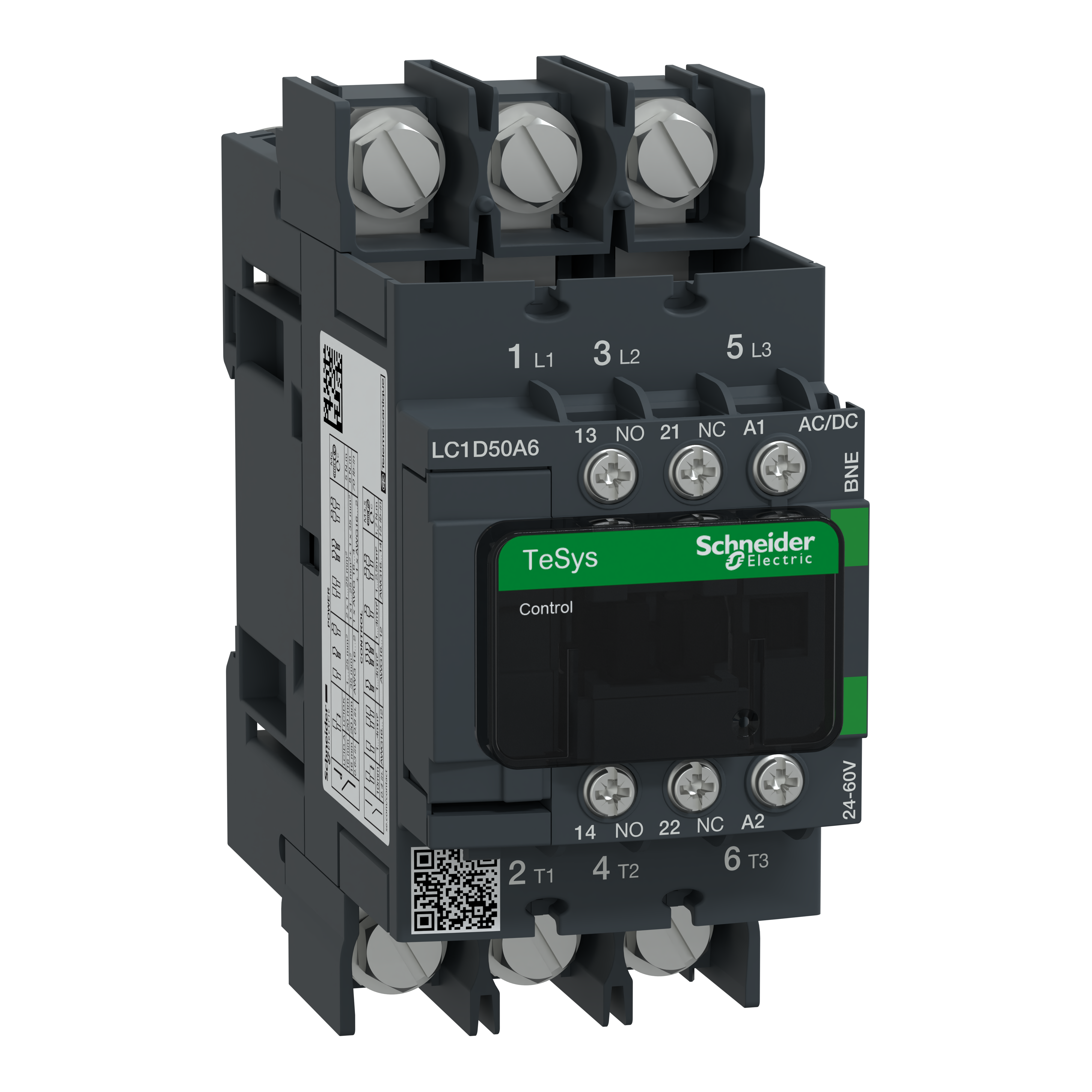

Schneider Electric LC1D50A6BNE LC1 Contactor, 24 to 60 v coil, 10 80, 3NO contact, 3 poles
SKU1134795
MFGR #LC1D50A6BNE
Your Cost: $496.63/ea
Schneider Electric LC1D50A6BNE, Contactor, LC1, 24 to 60 Coil, 10; 80 Maximum Load Current, 3; 7.5; 15; 40 Coil, 3 Pole, 25 to 400 Frequency, 9.6; 3.7 Wattage, Mechanically Linked/Mirror Contact, 3NO Contact Configuration, 1 NO + 1 NC Auxiliary Contacts, Lugs-Ring Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -4 to 60 , 60 to 70 with derating deg C Operating, Plate/Rail Mounting, Gray/Green, 122 mm H x 55 mm W x 120 mm D Dimensions
Schneider Electric LC1D50A6BNE, Contactor, LC1, 24 to 60 Coil, 10; 80 Maximum Load Current, 3; 7.5; 15; 40 Coil, 3 Pole, 25 to 400 Frequency, 9.6; 3.7 Wattage, Mechanically Linked/Mirror Contact, 3NO Contact Configuration, 1 NO + 1 NC Auxiliary Contacts, Lugs-Ring Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -4 to 60 , 60 to 70 with derating deg C Operating, Plate/Rail Mounting, Gray/Green, 122 mm H x 55 mm W x 120 mm D Dimensions
Alternate Catalog Number LC1D50A6BNE Application Resistive load Motor control ARRA Compliant N Buy American Compliant N Catalog Number LC1D50A6BNE Connection Power circuit lugs-ring terminals 16.5 mm;control circuit lugs-ring terminals 8 mm Country of Origin FR Currency USD EU RoHS Indicator Y Gross Weight Per Pack 1.9900 lb Gross Weight per Pack Metric 905.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 5.5000 in Height [Metric] 5.5000 cm Item Group 22357 Length 15.2000 in Length [Metric] 15.2000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=459617539&lang=en-us Mounting Rail;plate Returnable N Sub Brand LC1D UNSPSC 39121529 Warranty Description Contractual Warranty:18 months Width 13.7000 in Width [Metric] 13.7000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Coil Voltage 24...60 V AC 50/60 Hz;24...60 V DC Contact Configuration 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 Type CONTACTOR Resistive load Motor control Built-in bidirectional peak limiting TeSys D contactors are available in 11 contactor ratings for the USA market for inductive motor applications from 9 up to 150 full-load amps and resistive loads up to 200 amps Designed to control and provide overload protection to motors rated up to 100 HP at 480 VAC or 125 HP at 600 VAC, TeSys D meets your needs for a majority of motor starter applications New TeSys D Green increase TeSys D range with a new electronic coil with up to 80% less consumption than TeSys D standard AC or DC coil TeSys D Green contactor simplify your maintenance services with 90% less references needed TeSys D Green contactor associated with TeSys LR9D electronic overload relay reduces heat generation and energy consumption up to 50 High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets Simple to select the right product 3-pole and 4-pole contactor versions available All screw connections have IP20 finger-safe terminals with both North American and International terminal markings All screw connections have IP20 finger-safe terminals with both North American and International terminal markings TeSys D contactors can be panel mounted with screws or DIN rail mounted Easily installed accessories
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D50A6BNE |
| Application | Resistive load Motor control |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LC1D50A6BNE |
| Connection | Power circuit lugs-ring terminals 16.5 mm;control circuit lugs-ring terminals 8 mm |
| Country of Origin | FR |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 1.9900 lb |
| Gross Weight per Pack Metric | 905.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 5.5000 in |
| Height [Metric] | 5.5000 cm |
| Item Group | 22357 |
| Length | 15.2000 in |
| Length [Metric] | 15.2000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=459617539&lang=en-us |
| Mounting | Rail;plate |
| Returnable | N |
| Sub Brand | LC1D |
| UNSPSC | 39121529 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 13.7000 in |
| Width [Metric] | 13.7000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Coil Voltage | 24...60 V AC 50/60 Hz;24...60 V DC |
| Contact Configuration | 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 |
| Type | CONTACTOR |
| Resistive load Motor control |
| Built-in bidirectional peak limiting |
| TeSys D contactors are available in 11 contactor ratings for the USA market for inductive motor applications from 9 up to 150 full-load amps and resistive loads up to 200 amps |
| Designed to control and provide overload protection to motors rated up to 100 HP at 480 VAC or 125 HP at 600 VAC, TeSys D meets your needs for a majority of motor starter applications |
| New TeSys D Green increase TeSys D range with a new electronic coil with up to 80% less consumption than TeSys D standard AC or DC coil |
| TeSys D Green contactor simplify your maintenance services with 90% less references needed |
| TeSys D Green contactor associated with TeSys LR9D electronic overload relay reduces heat generation and energy consumption up to 50 |
| High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR |
| Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets |
| Simple to select the right product |
| 3-pole and 4-pole contactor versions available |
| All screw connections have IP20 finger-safe terminals with both North American and International terminal markings |
| All screw connections have IP20 finger-safe terminals with both North American and International terminal markings |
| TeSys D contactors can be panel mounted with screws or DIN rail mounted |
| Easily installed accessories |
