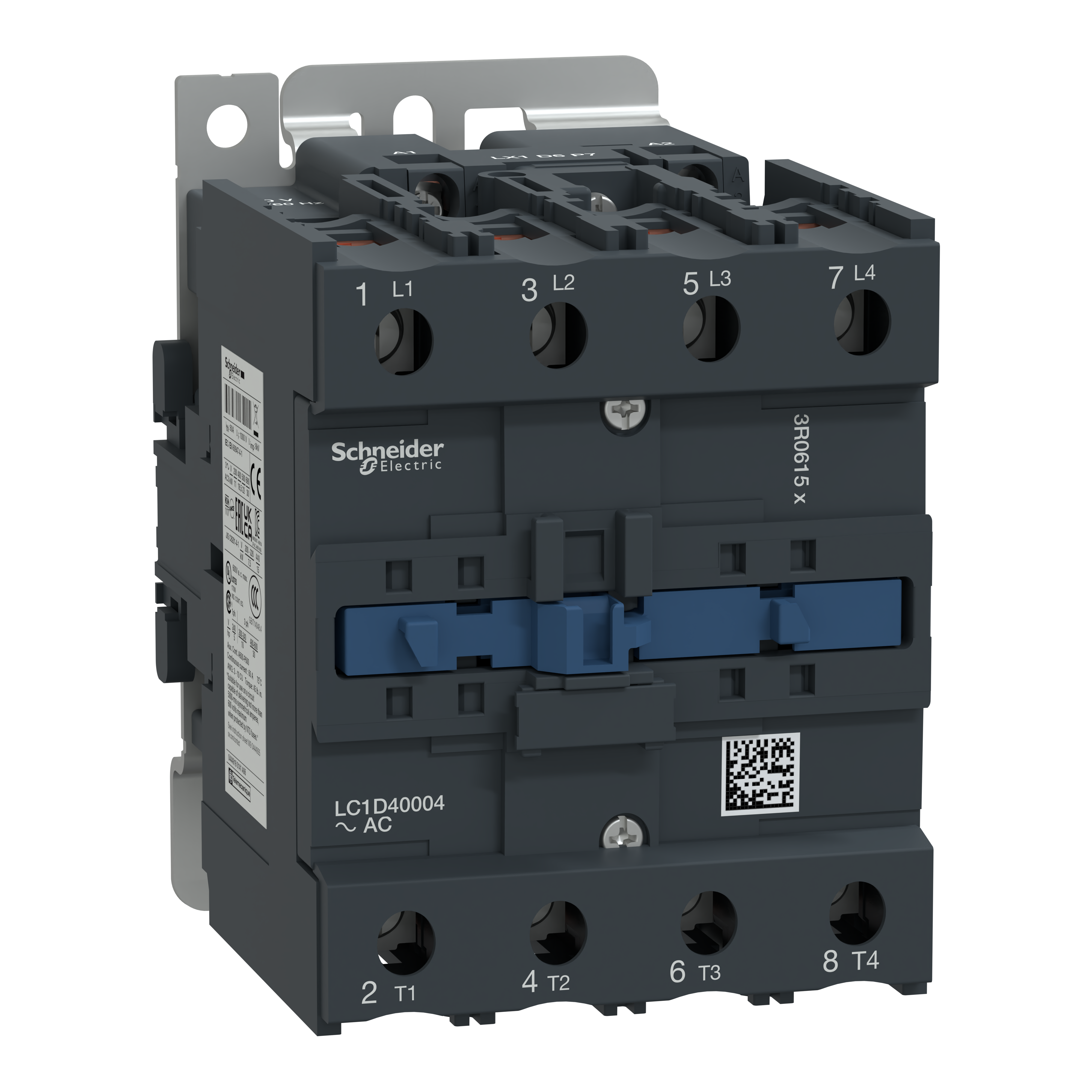

Schneider Electric LC1D40004G6 TeSys™ D LC1D Non-Reversing Contactor, 120 VAC V Coil, 60 A, 4NO Contact, 4 Poles
Custom_Product_Images_Illustration
Schneider Electric LC1D40004G6 TeSys™ D LC1D Non-Reversing Contactor, 120 VAC V Coil, 60 A, 4NO Contact, 4 Poles
SKU96295
MFGR #LC1D40004G6
$/ea
Schneider Electric, LC1D40004G6, Contactor, Non-Reversing, Series: TeSys™ D LC1D, 120 VAC Coil, 60 A Maximum Load Current, 4 Pole, 25 to 400 Hz Frequency, 5.4; 2.4 Wattage, Mechanically Linked/Mirror Contact, 4NO Contact Configuration, 1NO-1NC Auxiliary Contacts, Screw Clamp Terminal, Open Enclosure, 3600 Cycles/hr Operating Cycles, -5 to 60 deg C Operating, Plate/Rail Mounting, 127 mm H x 85 mm W x 130 mm D Dimensions
Schneider Electric, LC1D40004G6, Contactor, Non-Reversing, Series: TeSys™ D LC1D, 120 VAC Coil, 60 A Maximum Load Current, 4 Pole, 25 to 400 Hz Frequency, 5.4; 2.4 Wattage, Mechanically Linked/Mirror Contact, 4NO Contact Configuration, 1NO-1NC Auxiliary Contacts, Screw Clamp Terminal, Open Enclosure, 3600 Cycles/hr Operating Cycles, -5 to 60 deg C Operating, Plate/Rail Mounting, 127 mm H x 85 mm W x 130 mm D Dimensions
Alternate Catalog Number LC1D40004G6 Application Industry, Infrastructure, Building, Resistive Load and Motor Control Applications ARRA Compliant N Buy American Compliant N Catalog Number LC1D40004G6 Contact Rating 10 A 60 A°C CONTROL CIRCUIT-40 A 60 A°C POWER CIRCUIT Country of Origin FR Currency USD Enclosure Type Open EU RoHS Indicator Y Frequency Rating 25 to 400 Gross Volume Per Pack 101.97 Gross Volume per Pack Metric 1670.98 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0143 lb Gross Weight per Pack Metric 1.43 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 9.3980 in Height [Metric] 13.0000 cm Item Group 22357 Length 13.4620 in Length [Metric] 13.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=616820&lang=en-us Mounting PLATE-RAIL Mounting Type Plate/Rail Number of Auxiliary Contacts 1NO-1NC Number Of Poles 4 Operating Cycles 3600 Operating Temperature -40-70 A°C AT UC,-5-60 A°C Returnable N Series TeSys™ D LC1D Size 4P Standard 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN/IEC 60947-5-1-UL 508-EN/IEC 60947-4-1,CSA-DNV-GL-BV-UL-CCC-RINA-LROS (LLOYDS REGISTER OF SHIPPING),IP2X VDE 0106,V1 UL 94 Sub Brand TeSys D Terminal Type Screw/Clamp UNSPSC 39121529 Warranty Description Contractual Warranty:18 months Wattage 5.4 W AC-1-2.4 W AC-3 . W;. W Width 13.2080 in Width [Metric] 9.5000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Coil Voltage 120 V AC 60 HZ,POWER CIRCUIT 690 V AC 25...400 HZ V Contact Configuration 4 NO,MECHANICALLY LINKED 1 NO + 1 NC IEC 60947-5-1-MIRROR CONTACT 1 NC IEC 60947-4-1 Maximum Load Current 60 A 60 A°C) 440 V AC AC-1 POWER CIRCUIT Type CONTACTOR,STANDARD Industry, Infrastructure, Building, Resistive Load and Motor Control Applications WITHOUT BUILT-IN BIDIRECTIONAL PEAK LIMITING DIODE SUPPRESSOR Designed to control and provide overload protection to motors rated upto 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications New TeSys™ D green increase TeSys™ D range with a new electronic coil with upto 80% less consumption than TeSys™ D standard AC or DC coil TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption upto 50% High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR All contactors include built-in auxiliary contacts All screw connections have IP20 finger safe terminals with both north American and international terminal markings Designed for perfect integration in control systems Can be used to create motor starters for any type of application TeSys D contactors are available in 11 contactor ratings for the USA market for inductive motor applications from 9 up to 150 full-load amps and resistive loads up to 200 amps Simple to select the right product Simple to select the right product 3-pole and 4-pole contactor versions available Easily installed accessories
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D40004G6 |
| Application | Industry, Infrastructure, Building, Resistive Load and Motor Control Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LC1D40004G6 |
| Contact Rating | 10 A 60 A°C CONTROL CIRCUIT-40 A 60 A°C POWER CIRCUIT |
| Country of Origin | FR |
| Currency | USD |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 25 to 400 |
| Gross Volume Per Pack | 101.97 |
| Gross Volume per Pack Metric | 1670.98 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0143 lb |
| Gross Weight per Pack Metric | 1.43 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 9.3980 in |
| Height [Metric] | 13.0000 cm |
| Item Group | 22357 |
| Length | 13.4620 in |
| Length [Metric] | 13.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=616820&lang=en-us |
| Mounting | PLATE-RAIL |
| Mounting Type | Plate/Rail |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 4 |
| Operating Cycles | 3600 |
| Operating Temperature | -40-70 A°C AT UC,-5-60 A°C |
| Returnable | N |
| Series | TeSys™ D LC1D |
| Size | 4P |
| Standard | 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN/IEC 60947-5-1-UL 508-EN/IEC 60947-4-1,CSA-DNV-GL-BV-UL-CCC-RINA-LROS (LLOYDS REGISTER OF SHIPPING),IP2X VDE 0106,V1 UL 94 |
| Sub Brand | TeSys D |
| Terminal Type | Screw/Clamp |
| UNSPSC | 39121529 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 5.4 W AC-1-2.4 W AC-3 . W;. W |
| Width | 13.2080 in |
| Width [Metric] | 9.5000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Coil Voltage | 120 V AC 60 HZ,POWER CIRCUIT 690 V AC 25...400 HZ V |
| Contact Configuration | 4 NO,MECHANICALLY LINKED 1 NO + 1 NC IEC 60947-5-1-MIRROR CONTACT 1 NC IEC 60947-4-1 |
| Maximum Load Current | 60 A 60 A°C) 440 V AC AC-1 POWER CIRCUIT |
| Type | CONTACTOR,STANDARD |
| Industry, Infrastructure, Building, Resistive Load and Motor Control Applications |
| WITHOUT BUILT-IN BIDIRECTIONAL PEAK LIMITING DIODE SUPPRESSOR |
| Designed to control and provide overload protection to motors rated upto 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications |
| New TeSys™ D green increase TeSys™ D range with a new electronic coil with upto 80% less consumption than TeSys™ D standard AC or DC coil |
| TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption upto 50% |
| High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR |
| All contactors include built-in auxiliary contacts |
| All screw connections have IP20 finger safe terminals with both north American and international terminal markings |
| Designed for perfect integration in control systems |
| Can be used to create motor starters for any type of application |
| TeSys D contactors are available in 11 contactor ratings for the USA market for inductive motor applications from 9 up to 150 full-load amps and resistive loads up to 200 amps |
| Simple to select the right product |
| Simple to select the right product |
| 3-pole and 4-pole contactor versions available |
| Easily installed accessories |
