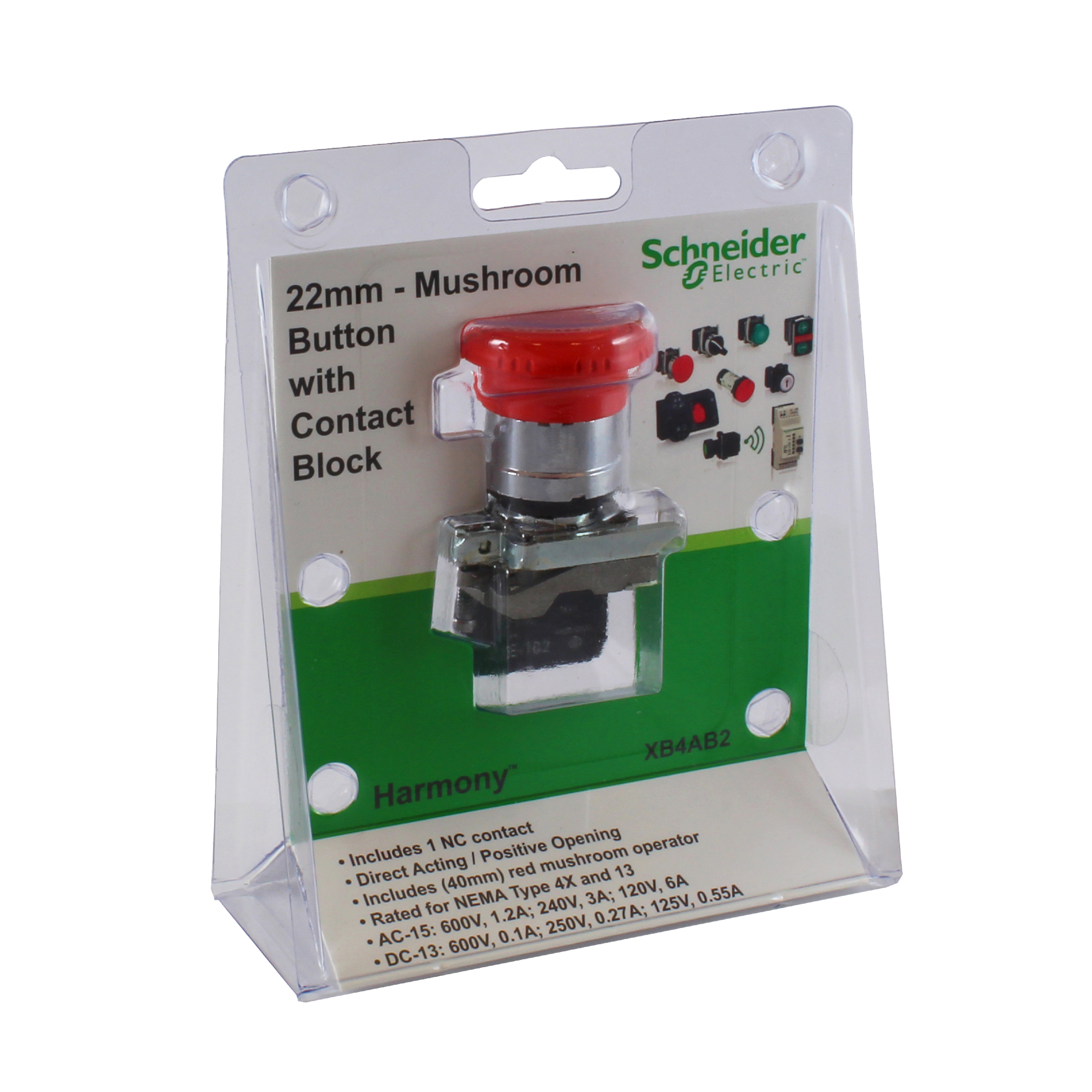

Schneider Electric Harmony™ XB4AB2 Complete Emergency Stop Non-Illuminated Pushbutton, 22 mm, 1NC Contact, Slow-Break Contact, Mechanical Latching/Turn to Release Operator, Red
Custom_Product_Images_Illustration
Schneider Electric Harmony™ XB4AB2 Complete Emergency Stop Non-Illuminated Pushbutton, 22 mm, 1NC Contact, Slow-Break Contact, Mechanical Latching/Turn to Release Operator, Red
SKU1353231
MFGR #XB4AB2
$/ea
Schneider Electric Harmony™ Non-Illuminated Pushbutton, Complete Emergency Stop, Series: XB4, 22 mm Size, 1NC Contact Configuration, Slow-Break Contact, 6 A at 120 VAC, 3 A at 240 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact, Mechanical Latching/Turn to Release Operator, Bezel/Housing: Polished Chrome Metal, Mushroom Head Actuator, Screw Clamp Terminal, NEMA 1/2/3/4/4X/12/13/IP65/IP66/IP69/IP69K Enclosure, Red, Environmental Conditions: -40 to 158 deg F Operating/Storage
Schneider Electric Harmony™ Non-Illuminated Pushbutton, Complete Emergency Stop, Series: XB4, 22 mm Size, 1NC Contact Configuration, Slow-Break Contact, 6 A at 120 VAC, 3 A at 240 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact, Mechanical Latching/Turn to Release Operator, Bezel/Housing: Polished Chrome Metal, Mushroom Head Actuator, Screw Clamp Terminal, NEMA 1/2/3/4/4X/12/13/IP65/IP66/IP69/IP69K Enclosure, Red, Environmental Conditions: -40 to 158 deg F Operating/Storage
Actuator Mushroom Head Alternate Catalog Number XB4AB2 Application Industries, Service Sector and Infrastructure Applications ARRA Compliant N Buy American Compliant N Catalog Number XB4AB2 Contact Rating 6 A at 120 VAC, 3 A at 240 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Country of Origin MX Currency USD Depth 4.0945 in Enclosure Type NEMA 1/2/3/4/4X/12/13/IP65/IP66/IP69/IP69K Environmental Conditions -40 to 158 deg F Operating/Storage EU RoHS Indicator Y Gross Volume Per Pack 80.73 Gross Volume per Pack Metric 1322.92 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.3600 lb Gross Weight per Pack Metric 0.18 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509025 Height 5.4000 in Height [Metric] 16.5100 cm Item Group 22750 Length 16.1000 in Length [Metric] 5.8420 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=471668244&lang=en-us NEMA Rating NEMA 13-NEMA 4X Returnable Y Series XB4 Standard EN/IEC 60947-5-4-EN/IEC 60947-1-IEC 60364-5-53-EN/IEC 60947-5-1-EN/IEC 60947-5-5-CSA C22.2 NO 14-JIS C 4520-UL 508,UL LISTED-BV-CSA-DNV-GL-RINA-LROS (LLOYDS REGISTER OF SHIPPING) Terminal Type Screw/Clamp Type Complete Emergency Stop UNSPSC 39121326 UPC 11 78590155376 UPC 12 785901553762 Width 13.5000 in Width [Metric] 13.7160 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Color Red Contact Configuration 1NC Contact Type Slow Break Operator Type Mechanical Latching/Turn to Release Size 22 Industries, Service Sector and Infrastructure Applications Robust and strong design that securely and easily connects together Low load electrical contact and high power Only one installer required Designed for industry, this range combines simplicity of setup, flexibility and a robust construction An ingenious locking system consisting of a snap fit head and body, tightened with a single screw, ensures easy yet secure mounting
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Mushroom Head |
| Alternate Catalog Number | XB4AB2 |
| Application | Industries, Service Sector and Infrastructure Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | XB4AB2 |
| Contact Rating | 6 A at 120 VAC, 3 A at 240 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Country of Origin | MX |
| Currency | USD |
| Depth | 4.0945 in |
| Enclosure Type | NEMA 1/2/3/4/4X/12/13/IP65/IP66/IP69/IP69K |
| Environmental Conditions | -40 to 158 deg F Operating/Storage |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 80.73 |
| Gross Volume per Pack Metric | 1322.92 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.3600 lb |
| Gross Weight per Pack Metric | 0.18 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509025 |
| Height | 5.4000 in |
| Height [Metric] | 16.5100 cm |
| Item Group | 22750 |
| Length | 16.1000 in |
| Length [Metric] | 5.8420 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=471668244&lang=en-us |
| NEMA Rating | NEMA 13-NEMA 4X |
| Returnable | Y |
| Series | XB4 |
| Standard | EN/IEC 60947-5-4-EN/IEC 60947-1-IEC 60364-5-53-EN/IEC 60947-5-1-EN/IEC 60947-5-5-CSA C22.2 NO 14-JIS C 4520-UL 508,UL LISTED-BV-CSA-DNV-GL-RINA-LROS (LLOYDS REGISTER OF SHIPPING) |
| Terminal Type | Screw/Clamp |
| Type | Complete Emergency Stop |
| UNSPSC | 39121326 |
| UPC 11 | 78590155376 |
| UPC 12 | 785901553762 |
| Width | 13.5000 in |
| Width [Metric] | 13.7160 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Color | Red |
| Contact Configuration | 1NC |
| Contact Type | Slow Break |
| Operator Type | Mechanical Latching/Turn to Release |
| Size | 22 |
| Industries, Service Sector and Infrastructure Applications |
| Robust and strong design that securely and easily connects together |
| Low load electrical contact and high power |
| Only one installer required |
| Designed for industry, this range combines simplicity of setup, flexibility and a robust construction |
| An ingenious locking system consisting of a snap fit head and body, tightened with a single screw, ensures easy yet secure mounting |
