Square D™

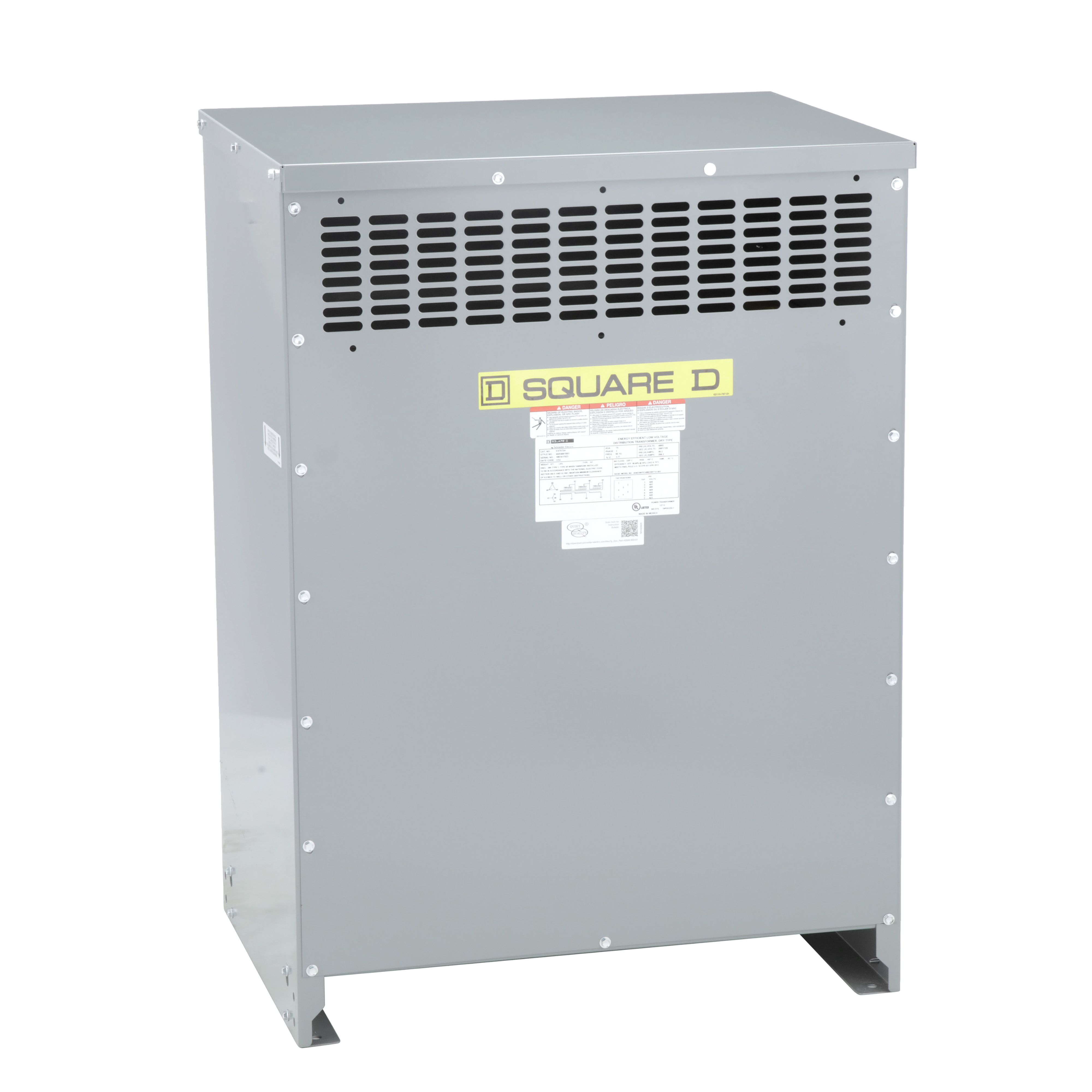

Schneider Electric EX75T3H General Purpose - Multi-Use Transformers

Custom_Product_Images_Illustration

Square D™

SKU908744

MFGR #EX75T3H

Your Cost: $4,163.77/ea

List: ~~$4,744.00~~ /ea

Schneider Electric EX75T3H Transformer Dry Type 75kvVA 480D208Y,(1) 600 kcmil-4 AWG

: Alternate Catalog Number
EX75T3H
ARRA Compliant
N
Buy American Compliant
N
Catalog Number
EX75T3H
Country of Origin
MX
Dimensions
42 in H x 30.03 in W x 22.5 in D
Efficiency
99.00
Enclosure Type
NEMA ST-20
EU RoHS Indicator
Y
Gross Volume Per Pack
48223.20
Gross Volume per Pack Metric
790233.58
Gross Weight Per Pack
647.0000 lb
Gross Weight per Pack Metric
293.48
Gross Weight UOM Metric
kg
Height
48.00 in
Height [Metric]
121.9200 cm
Housing Material
Aluminum
Insulation
220
Insulation Class
150 ?°C;220 ?°C insulated
Item Group
16250
Length
35.50 in
Length [Metric]
90.1700 cm
Material Composition Declaration
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431809150&lang=en-us
Mounting Type
Ceiling/Floor
Number Of Phases
3
Number Of Taps
6
Returnable
N
Temperature Rating
150 °C
Type
DOE 2016 energy efficient transformer
UNSPSC
39121002
UPC 11
78590140571
UPC 12
785901405719
Width
28.30 in
Width [Metric]
71.8820 cm
Stock Status
NONSTOCK
Brand
Square D™
Manufacturer
Schneider Electric
Frequency Rating
60 Hz
Phase
3
Power Rating
75 kVA
Primary Voltage
480 Delta VAC V
Secondary Voltage
208Y/120 V
: Catalog
Seller Home Page
Spec Sheet
Tech Drawing
: 6 AWG to 350 kcmil, 14 to 2/0 AWG conductor

UL NEMA 1/3R enclosure with accessory deg of protection

2 to 2.5% FCAN, 4 to 2.5% FCBN taps

Alternate Catalog Number	EX75T3H
ARRA Compliant	N
Buy American Compliant	N
Catalog Number	EX75T3H
Country of Origin	MX
Dimensions	42 in H x 30.03 in W x 22.5 in D
Efficiency	99.00
Enclosure Type	NEMA ST-20
EU RoHS Indicator	Y
Gross Volume Per Pack	48223.20
Gross Volume per Pack Metric	790233.58
Gross Weight Per Pack	647.0000 lb
Gross Weight per Pack Metric	293.48
Gross Weight UOM Metric	kg
Height	48.00 in
Height [Metric]	121.9200 cm
Housing Material	Aluminum
Insulation	220
Insulation Class	150 ?°C;220 ?°C insulated
Item Group	16250
Length	35.50 in
Length [Metric]	90.1700 cm
Material Composition Declaration	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431809150&lang=en-us
Mounting Type	Ceiling/Floor
Number Of Phases	3
Number Of Taps	6
Returnable	N
Temperature Rating	150 °C
Type	DOE 2016 energy efficient transformer
UNSPSC	39121002
UPC 11	78590140571
UPC 12	785901405719
Width	28.30 in
Width [Metric]	71.8820 cm
Stock Status	NONSTOCK
Brand	Square D™
Manufacturer	Schneider Electric
Frequency Rating	60 Hz
Phase	3
Power Rating	75 kVA
Primary Voltage	480 Delta VAC V
Secondary Voltage	208Y/120 V
