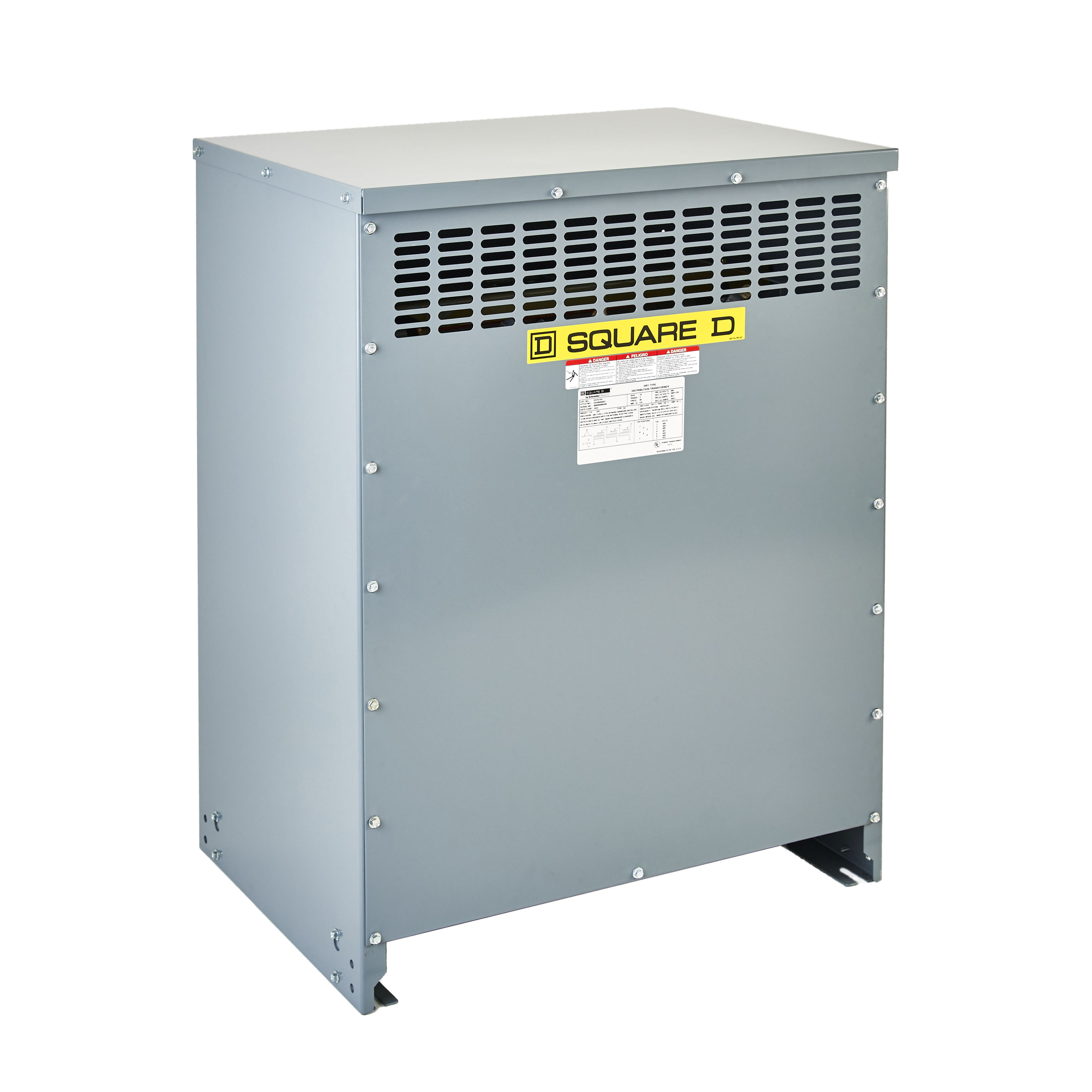

Schneider Electric EX30T3HCU Control Transformers
SKU943355
MFGR #EX30T3HCU
Your Cost: $4,798.51/ea
List: Schneider Electric EX30T3HCU Transformer Dry Type 30kvVA 480D208Y,150deg.C / 220 INS,2-2.5 FCAN
Schneider Electric EX30T3HCU Transformer Dry Type 30kvVA 480D208Y,150deg.C / 220 INS,2-2.5 FCAN
Alternate Catalog Number EX30T3HCU ARRA Compliant N Buy American Compliant N Catalog Number EX30T3HCU Country of Origin MX Dimensions 35.31 in H x 25.51 in W x 20.98 in D Efficiency 98.00 Enclosure Type NEMA 1 EU RoHS Indicator Y Gross Volume Per Pack 36416.25 Gross Volume per Pack Metric 596753.09 Gross Weight Per Pack 442.0000 lb Gross Weight per Pack Metric 200.49 Gross Weight UOM Metric kg Height 41.50 in Height [Metric] 105.4100 cm Insulation 220 Insulation Class 150 ?°C;220 ?°C insulated Item Group 16250 Length 27.00 in Length [Metric] 68.5800 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431809143&lang=en-us Mounting Type Floor Number Of Phases 3 Number Of Taps 6 Returnable Y Temperature Rating 150 °C Type Transformer UNSPSC 39121002 UPC 11 78590168986 UPC 12 785901689867 Width 32.50 in Width [Metric] 82.5500 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Frequency Rating 60 Hz Phase 3 Power Rating 30 kVA Primary Voltage 480 V Secondary Voltage 208Y/120 V Our space saving design allows the transformers to be mounted within 1/2 in of the wall reducing the footprint in the owner's equipment room A new fortified shipping carton has been created to protect the top and side to reduce the potential for shipping damage Industry exclusive 1/2 in clearance from rear and side, saving not only floor space, but installation time Separated primary and secondary terminals, sized to handle wire range of square D™ equipment Distribution system connect on the incoming and outgoing Bending radius for side and bottom access Self certified Seismic qualified via ICS ES AC 156 shake table testing Copper windings (2) 2.5% FCAN, (4) 2.5% FCBN tap-offs
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | EX30T3HCU |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EX30T3HCU |
| Country of Origin | MX |
| Dimensions | 35.31 in H x 25.51 in W x 20.98 in D |
| Efficiency | 98.00 |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 36416.25 |
| Gross Volume per Pack Metric | 596753.09 |
| Gross Weight Per Pack | 442.0000 lb |
| Gross Weight per Pack Metric | 200.49 |
| Gross Weight UOM Metric | kg |
| Height | 41.50 in |
| Height [Metric] | 105.4100 cm |
| Insulation | 220 |
| Insulation Class | 150 ?°C;220 ?°C insulated |
| Item Group | 16250 |
| Length | 27.00 in |
| Length [Metric] | 68.5800 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431809143&lang=en-us |
| Mounting Type | Floor |
| Number Of Phases | 3 |
| Number Of Taps | 6 |
| Returnable | Y |
| Temperature Rating | 150 °C |
| Type | Transformer |
| UNSPSC | 39121002 |
| UPC 11 | 78590168986 |
| UPC 12 | 785901689867 |
| Width | 32.50 in |
| Width [Metric] | 82.5500 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Frequency Rating | 60 Hz |
| Phase | 3 |
| Power Rating | 30 kVA |
| Primary Voltage | 480 V |
| Secondary Voltage | 208Y/120 V |
| Our space saving design allows the transformers to be mounted within 1/2 in of the wall reducing the footprint in the owner's equipment room |
| A new fortified shipping carton has been created to protect the top and side to reduce the potential for shipping damage |
| Industry exclusive 1/2 in clearance from rear and side, saving not only floor space, but installation time |
| Separated primary and secondary terminals, sized to handle wire range of square D™ equipment |
| Distribution system connect on the incoming and outgoing |
| Bending radius for side and bottom access |
| Self certified Seismic qualified via ICS ES AC 156 shake table testing |
| Copper windings |
| (2) 2.5% FCAN, (4) 2.5% FCBN tap-offs |
