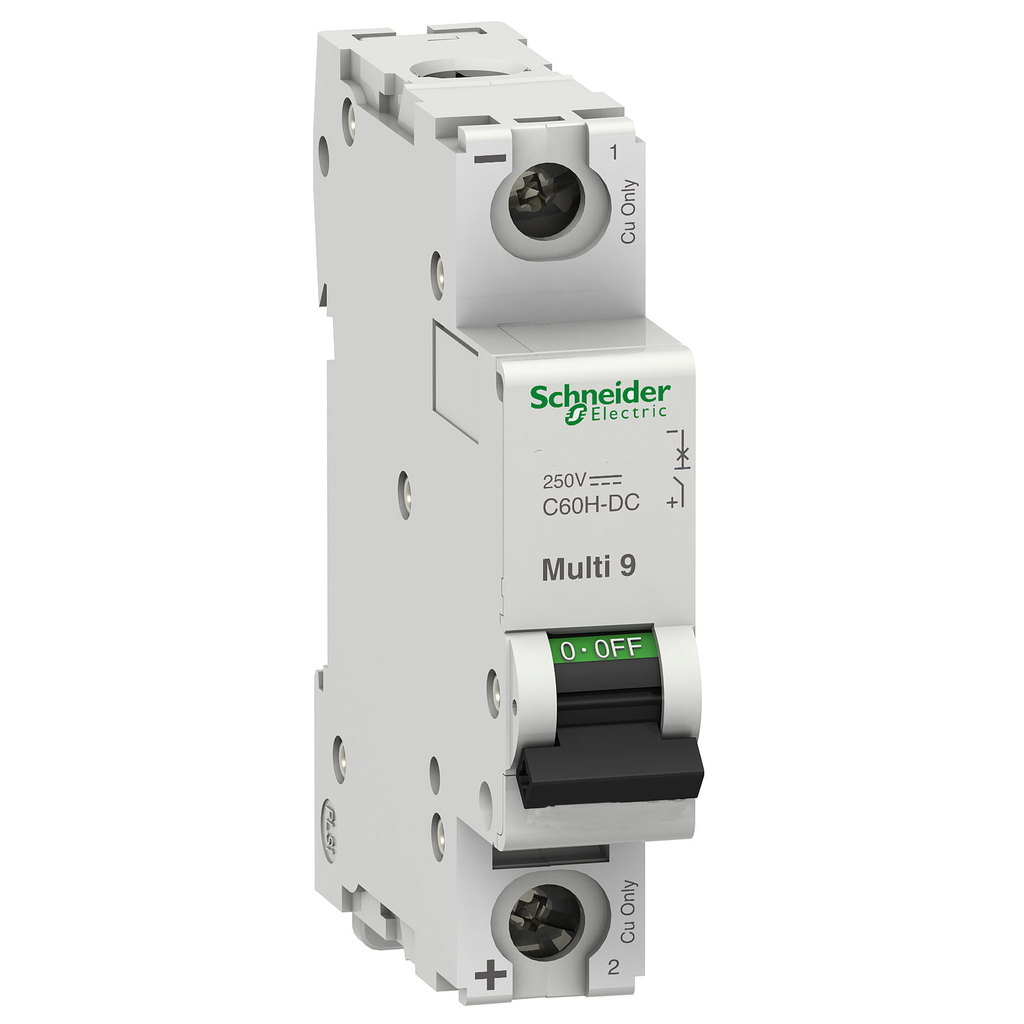

Schneider Electric C60N Miniature Circuit Breaker, 12 to 250 VDC, 0.5 A, 10 kA Interrupt, 1 Pole, C-Curve Thermal Magnetic Trip
Custom_Product_Images_Illustration
Schneider Electric C60N Miniature Circuit Breaker, 12 to 250 VDC, 0.5 A, 10 kA Interrupt, 1 Pole, C-Curve Thermal Magnetic Trip
SKU804975
MFGR #MGN61500
Your Cost: $200.64/ea
Schneider Electric MGN61500 MINIATURE CIRCUIT BREAKER 250V 0.5A,250 V DC,250 V DC,73 mm,C,C60,C60 auxiliary-C60 accessories,C60,Multi 9,C60H-DC,miniature circuit-breaker
Schneider Electric MGN61500 MINIATURE CIRCUIT BREAKER 250V 0.5A,250 V DC,250 V DC,73 mm,C,C60,C60 auxiliary-C60 accessories,C60,Multi 9,C60H-DC,miniature circuit-breaker
Actuator Toggle Actuator Type Toggle Application DISTRIBUTION ARRA Compliant N Buy American Compliant N Catalog Number MGN61500 Color Gray Connection Type Tunnel Country of Origin CN Dimensions 2.87 in L x 0.71 in W x 3.19 in H Enclosure Type IP20/IP40 EU RoHS Indicator N Gross Weight Per Pack 0.3200 lb Harmonization Tariff Schedule Code 8536200020 Height 81 MM Item Group 00915 Length 73 MM Load Rating 15 KA 75 GB 14048.2 - 110 V DC-15 KA 75 EN/IEC 60947-2 - 110 V DC-7.5 KA 75 EN/IEC 60947-2 - 250 V DC-4.5 KA 75 EN/IEC 60947-2 - 220 V DC-7.5 KA 75 GB 14048.2 - 250 V DC-4.5 KA 75 GB 14048.2 - 220 V DC Mounting Type DIN Rail Number Of Poles 1 Operating Temperature -25 to 70 °C Returnable Y Series C60H-DC Standard IP20IEC 60529-IP40 MODULAR ENCLOSURE)IEC 60529,UL 1077-GB 14048.2-EN/IEC 60947-2,UR-CCC-IEC Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA C22.2 No.5IEC 60947-2CE Markedeccn: EAR99 Sub Brand C60H-DC,MULTI 9 C60H-DC Temperature Rating -13 to 158 °F Trip Range 7 to 10X In Type Miniature circuit-breaker UNSPSC 39121603 UPC 11 78590132695 UPC 12 785901326953 Width 0.7086 in Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 0.5 A Interrupt Rating 5 kA Trip Type C-Curve/Thermal Magnetic Voltage Rating 12 to 250 VDC DISTRIBUTION ON/OFF INDICATION,IN POSITION O Trip-free mechanism contacts cannot be held in the I-ON position when the circuit breaker is tripped automatically Positive indication of contact disconnect Green mechanical indication on front face of circuit breaker shows that all poles are open Overcurrent protection for all application types Magnetic release operates from 7 to 10 times ampere rating (between 7 and 14 for DC) Allows locking in ON-OFF position using padlock attachment Suitable for reverse feeding Fast closing allows increased withstand to the high inrush currents of some loads
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Application | DISTRIBUTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | MGN61500 |
| Color | Gray |
| Connection Type | Tunnel |
| Country of Origin | CN |
| Dimensions | 2.87 in L x 0.71 in W x 3.19 in H |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 0.3200 lb |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 81 MM |
| Item Group | 00915 |
| Length | 73 MM |
| Load Rating | 15 KA 75 GB 14048.2 - 110 V DC-15 KA 75 EN/IEC 60947-2 - 110 V DC-7.5 KA 75 EN/IEC 60947-2 - 250 V DC-4.5 KA 75 EN/IEC 60947-2 - 220 V DC-7.5 KA 75 GB 14048.2 - 250 V DC-4.5 KA 75 GB 14048.2 - 220 V DC |
| Mounting Type | DIN Rail |
| Number Of Poles | 1 |
| Operating Temperature | -25 to 70 °C |
| Returnable | Y |
| Series | C60H-DC |
| Standard | IP20IEC 60529-IP40 MODULAR ENCLOSURE)IEC 60529,UL 1077-GB 14048.2-EN/IEC 60947-2,UR-CCC-IEC |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA C22.2 No.5IEC 60947-2CE Markedeccn: EAR99 |
| Sub Brand | C60H-DC,MULTI 9 C60H-DC |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 7 to 10X In |
| Type | Miniature circuit-breaker |
| UNSPSC | 39121603 |
| UPC 11 | 78590132695 |
| UPC 12 | 785901326953 |
| Width | 0.7086 in |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 0.5 A |
| Interrupt Rating | 5 kA |
| Trip Type | C-Curve/Thermal Magnetic |
| Voltage Rating | 12 to 250 VDC |
| DISTRIBUTION |
| ON/OFF INDICATION,IN POSITION O |
| Trip-free mechanism contacts cannot be held in the I-ON position when the circuit breaker is tripped automatically |
| Positive indication of contact disconnect |
| Green mechanical indication on front face of circuit breaker shows that all poles are open |
| Overcurrent protection for all application types |
| Magnetic release operates from 7 to 10 times ampere rating (between 7 and 14 for DC) |
| Allows locking in ON-OFF position using padlock attachment |
| Suitable for reverse feeding |
| Fast closing allows increased withstand to the high inrush currents of some loads |
