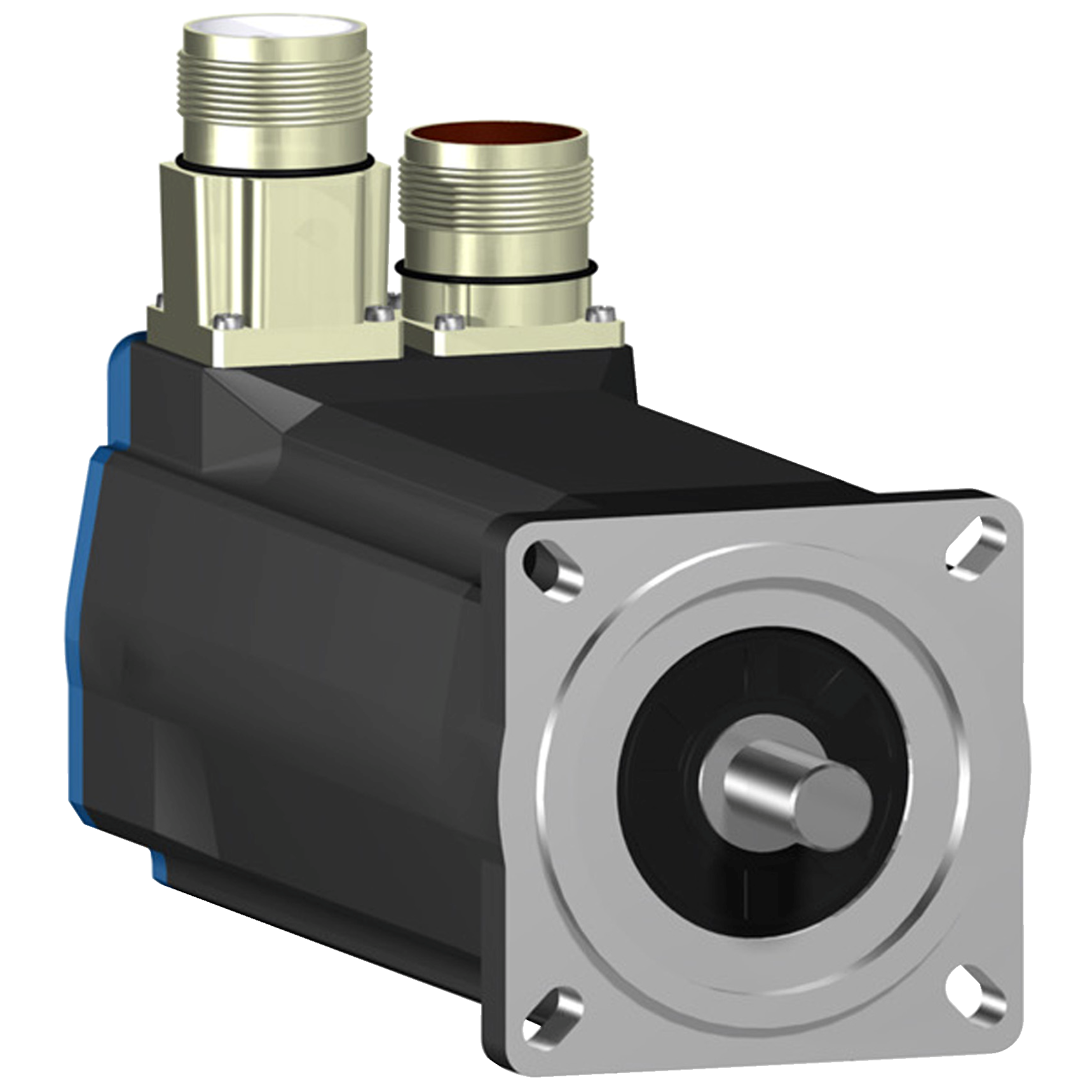

Schneider Electric BSH0702P12A1A BSH Series 2-Stack 6-Poles Keyed, 480 V, 11.8 A, 5000,3000 rpm speed, Flange mount
Schneider Electric BSH0702P12A1A BSH Series 2-Stack 6-Poles Keyed, 480 V, 11.8 A, 5000,3000 rpm speed, Flange mount
SKUPDW~13594543
MFGR #BSH0702P12A1A
Call For Price
Schneider Electric BSH0702P12A1A, 2-Stack 6-Poles Keyed, BSH Series, 4096 Turns Special Features, 480 V, 11.8 A, 5000,3000 rpm Speed, IP50 Enclosure, 0.43 in x 0.91 in L Shaft, 2.2 N-m Torque, Flange Mounting, -20 to 40 deg C, Insulation Class: Class F , 4.39 in H x 2.76 in W x 7.36 in L x 7.36 in D Dimensions
Schneider Electric BSH0702P12A1A, 2-Stack 6-Poles Keyed, BSH Series, 4096 Turns Special Features, 480 V, 11.8 A, 5000,3000 rpm Speed, IP50 Enclosure, 0.43 in x 0.91 in L Shaft, 2.2 N-m Torque, Flange Mounting, -20 to 40 deg C, Insulation Class: Class F , 4.39 in H x 2.76 in W x 7.36 in L x 7.36 in D Dimensions
Alternate Catalog Number BSH0702P12A1A ARRA Compliant N Buy American Compliant N Catalog Number BSH0702P12A1A Country of Origin DE Currency USD EU RoHS Indicator Y Gross Volume Per Pack 61.02 Gross Volume per Pack Metric 1000.00 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0280 lb Gross Weight per Pack Metric 2.80 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8501514040 Height 12.3000 in Height [Metric] 12.3000 cm Length 37.7000 in Length [Metric] 37.7000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=788106&lang=en-us Returnable N Substitute Product Catalog Number VW3A7601R20 UNSPSC 26101205 Warranty Description Contractual Warranty:18 months Width 12.8000 in Width [Metric] 12.8000 cm Brand Square D™ Manufacturer Schneider Electric Three book-size servo drive models and two servo motor families plus a full range of intelligent options Lexium 32 simplifies all aspects in the machine life cycle from engineering to maintenance A speed bandwidth of 1,600 Hz provides outstanding response With a power density of 548 W/l Lexium 32 packs maximum power into minimum volume This saves on cabinet space and size, reduces the machine footprint and decreases costs Powerful integration software simplifies the entire process from planning to commissioning The new Autotuning function makes tuning easier than ever before Lexium 32 offers a host of features for rapid installation and maintenance Lexium 32 supports a wide selection of interfaces for fast integration into architectures Leverage the full power of existing assets such as applications or legacy motors Leverage the full power of existing assets such as applications or legacy motors "Safe Torque Off" on board (IEC/EN 61800-5-2) for shorter downtime and less wiring The optional enhanced safety module eSM frees you from the hassle of devising complex, proprietary safety concepts. Access to SS1, SS2, SOS and SLS safety functions (IEC/EN 61800-5-2) Without holding brake 850 W LXM32.D12N4 3 A, 400 V, three phase850 W LXM32.D12N4 3 A, 480 V, three phase1000 W LXM15LD10N4, 400 V, three phase597 W LXM15LD13M3, 230 V, single phase600 W LXM05AD10M2, 200 to 240 V, single phase600 W LXM05AD17M2, 200 to 240 V, single phase600 W LXM05BD10M2, 200 to 240 V, single phase600 W LXM05BD17M2, 200 to 240 V, single phase600 W LXM05CD10M2, 200 to 240 V, single phase600 W LXM05CD17M2, 200 to 240 V, single phase1300 W LXM15LD10N4, 480 V, three phase597 W LXM15LD10N4, 230 V, three phase600 W LXM05AD10M3X, 200 to 240 V, three phase600 W LXM05AD14N4, 380 to 480 V, three phase600 W LXM05AD17M3X, 200 to 240 V, three phase600 W LXM05BD10M3X, 200 to 240 V, three phase600 W LXM05BD14N4, 380 to 480 V, three phase600 W LXM05BD17M3X, 200 to 240 V, three phase600 W LXM05CD10M3X, 200 to 240 V, three phase600 W LXM05CD14N4, 380 to 480 V, three phase600 W LXM05CD17M3X, 200 to 240 V, three phase nominal output power 1.51 W maximum continuous power Without second shaft end second shaft 0.71 in (18 mm) key width Multiturn SinCos Hiperface feedback type 2.76 in (70 mm) motor flange size
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | BSH0702P12A1A |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | BSH0702P12A1A |
| Country of Origin | DE |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 61.02 |
| Gross Volume per Pack Metric | 1000.00 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0280 lb |
| Gross Weight per Pack Metric | 2.80 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8501514040 |
| Height | 12.3000 in |
| Height [Metric] | 12.3000 cm |
| Length | 37.7000 in |
| Length [Metric] | 37.7000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=788106&lang=en-us |
| Returnable | N |
| Substitute Product Catalog Number | VW3A7601R20 |
| UNSPSC | 26101205 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 12.8000 in |
| Width [Metric] | 12.8000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Three book-size servo drive models and two servo motor families plus a full range of intelligent options |
| Lexium 32 simplifies all aspects in the machine life cycle from engineering to maintenance |
| A speed bandwidth of 1,600 Hz provides outstanding response |
| With a power density of 548 W/l Lexium 32 packs maximum power into minimum volume |
| This saves on cabinet space and size, reduces the machine footprint and decreases costs |
| Powerful integration software simplifies the entire process from planning to commissioning |
| The new Autotuning function makes tuning easier than ever before |
| Lexium 32 offers a host of features for rapid installation and maintenance |
| Lexium 32 supports a wide selection of interfaces for fast integration into architectures |
| Leverage the full power of existing assets such as applications or legacy motors |
| Leverage the full power of existing assets such as applications or legacy motors |
| "Safe Torque Off" on board (IEC/EN 61800-5-2) for shorter downtime and less wiring |
| The optional enhanced safety module eSM frees you from the hassle of devising complex, proprietary safety concepts. Access to SS1, SS2, SOS and SLS safety functions (IEC/EN 61800-5-2) |
| Without holding brake |
| 850 W LXM32.D12N4 3 A, 400 V, three phase850 W LXM32.D12N4 3 A, 480 V, three phase1000 W LXM15LD10N4, 400 V, three phase597 W LXM15LD13M3, 230 V, single phase600 W LXM05AD10M2, 200 to 240 V, single phase600 W LXM05AD17M2, 200 to 240 V, single phase600 W LXM05BD10M2, 200 to 240 V, single phase600 W LXM05BD17M2, 200 to 240 V, single phase600 W LXM05CD10M2, 200 to 240 V, single phase600 W LXM05CD17M2, 200 to 240 V, single phase1300 W LXM15LD10N4, 480 V, three phase597 W LXM15LD10N4, 230 V, three phase600 W LXM05AD10M3X, 200 to 240 V, three phase600 W LXM05AD14N4, 380 to 480 V, three phase600 W LXM05AD17M3X, 200 to 240 V, three phase600 W LXM05BD10M3X, 200 to 240 V, three phase600 W LXM05BD14N4, 380 to 480 V, three phase600 W LXM05BD17M3X, 200 to 240 V, three phase600 W LXM05CD10M3X, 200 to 240 V, three phase600 W LXM05CD14N4, 380 to 480 V, three phase600 W LXM05CD17M3X, 200 to 240 V, three phase nominal output power |
| 1.51 W maximum continuous power |
| Without second shaft end second shaft |
| 0.71 in (18 mm) key width |
| Multiturn SinCos Hiperface feedback type |
| 2.76 in (70 mm) motor flange size |
