Square D™

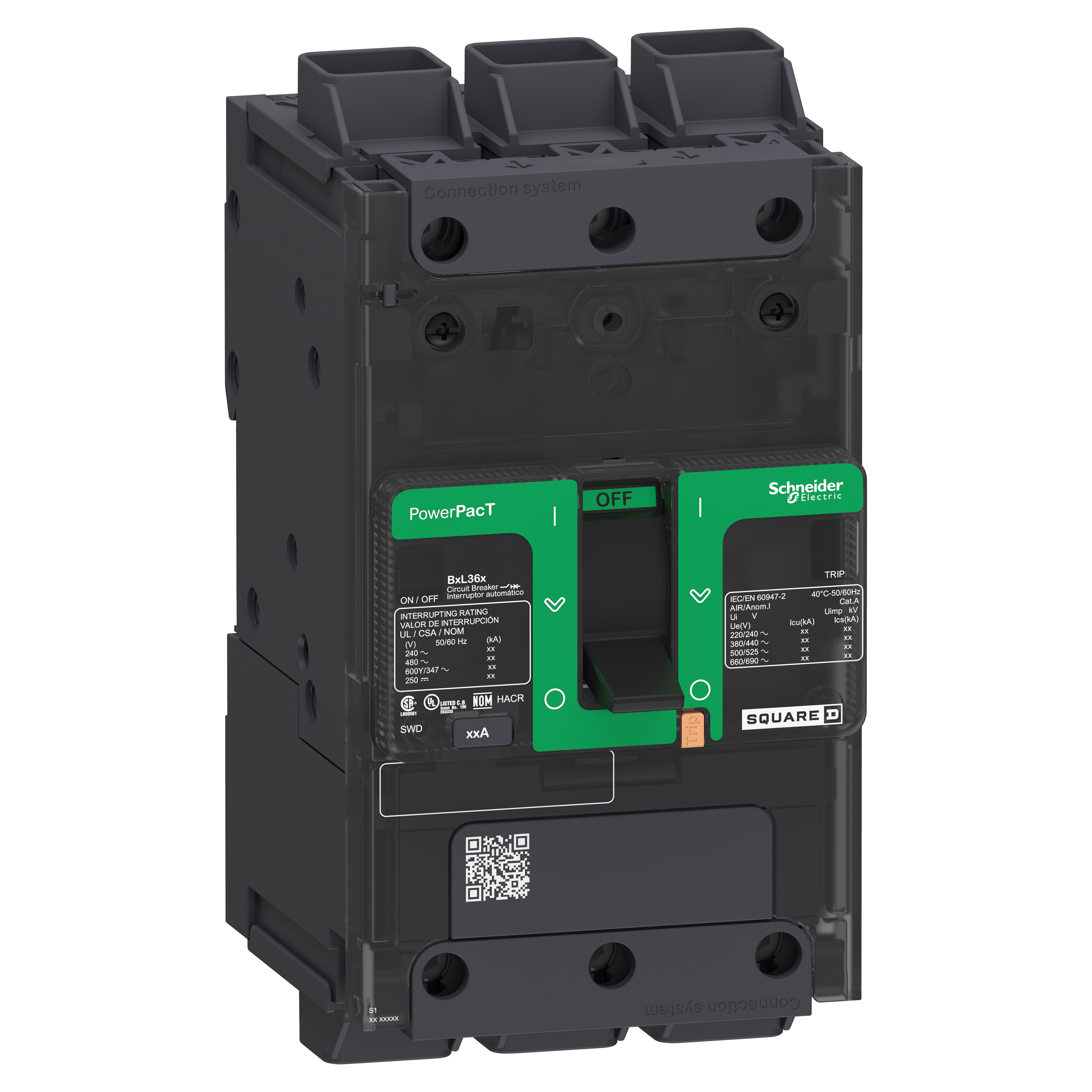

Schneider Electric BDL36100LU
Custom_Product_Images_Illustration
Square D™
Schneider Electric BDL36100LU
SKU999820
MFGR #BDL36100LU
Your Cost: $953.29/ea
List: SQD BDL36100LU MOLDED CASE CIRCUIT BRKR 600Y/347V 100A
SQD BDL36100LU MOLDED CASE CIRCUIT BRKR 600Y/347V 100A
Actuator Type Toggle Alternate Catalog Number BDL36100LU Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number BDL36100LU Color Gray Connection Everlink lug line;Everlink lug load; AWG 6...AWG 2/0 fine stranded aluminium/copper; AWG 14...AWG 3/0 rigid or stranded aluminium/copper Connection Type Line/Load Lug Country of Origin US Currency USD Dimensions 3.19 in W x 4.09 in D x 5.39 in H Enclosure Type NEMA AB4/IP40 EU RoHS Indicator Y Frame B Frequency Rating 50/60 Gross Weight Per Pack 2.5900 lb Gross Weight per Pack Metric 1.18 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 4.66 in Height [Metric] 11.9380 cm Item Group 01130 Length 8.02 in Length [Metric] 20.5740 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590199&lang=en-us Mounting Type DIN Rail/Threaded Number Of Poles 3 Returnable N Sub Brand BD 100 Substitute Product Catalog Number LV426907 Temperature Rating -13 to 158 Trip Range 1000 to 1500 Type CIRCUIT BREAKER UNSPSC 39121601 UPC 11 36064811491 Width 3.27 in Width [Metric] 8.3820 cm Wire Size 14 to 2/0 AWG/14 to 3/0 AWG Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 100 Interrupt Rating 25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600Y/347 VAC Trip Type LI/Thermal Magnetic Voltage Rating 600Y/347 Distribution
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | BDL36100LU |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | BDL36100LU |
| Color | Gray |
| Connection | Everlink lug line;Everlink lug load; AWG 6...AWG 2/0 fine stranded aluminium/copper; AWG 14...AWG 3/0 rigid or stranded aluminium/copper |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 3.19 in W x 4.09 in D x 5.39 in H |
| Enclosure Type | NEMA AB4/IP40 |
| EU RoHS Indicator | Y |
| Frame | B |
| Frequency Rating | 50/60 |
| Gross Weight Per Pack | 2.5900 lb |
| Gross Weight per Pack Metric | 1.18 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 4.66 in |
| Height [Metric] | 11.9380 cm |
| Item Group | 01130 |
| Length | 8.02 in |
| Length [Metric] | 20.5740 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590199&lang=en-us |
| Mounting Type | DIN Rail/Threaded |
| Number Of Poles | 3 |
| Returnable | N |
| Sub Brand | BD 100 |
| Substitute Product Catalog Number | LV426907 |
| Temperature Rating | -13 to 158 |
| Trip Range | 1000 to 1500 |
| Type | CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| UPC 11 | 36064811491 |
| Width | 3.27 in |
| Width [Metric] | 8.3820 cm |
| Wire Size | 14 to 2/0 AWG/14 to 3/0 AWG Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 100 |
| Interrupt Rating | 25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600Y/347 VAC |
| Trip Type | LI/Thermal Magnetic |
| Voltage Rating | 600Y/347 |
