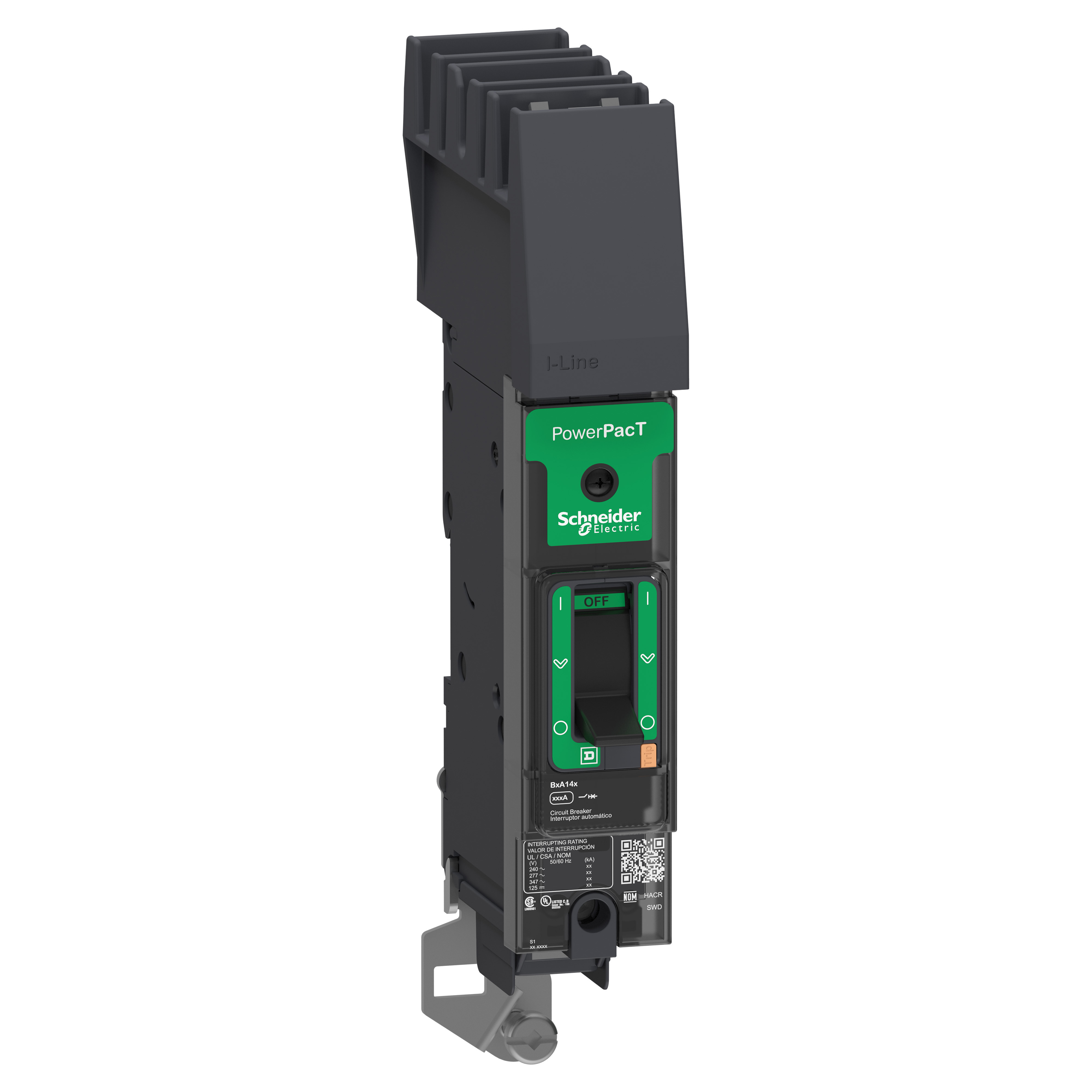

Schneider Electric BDA140803 MOLDED CASE CIRCUIT BREAKER 277V 80A
Custom_Product_Images_Illustration
Schneider Electric BDA140803 MOLDED CASE CIRCUIT BREAKER 277V 80A
SKUPDW~12781021
MFGR #BDA140803
$/ea
MOLDED CASE CIRCUIT BREAKER 277V 80A
MOLDED CASE CIRCUIT BREAKER 277V 80A
Actuator Type Toggle Alternate Catalog Number BDA140803 ARRA Compliant N Buy American Compliant N Catalog Number BDA140803 Color Gray Connection Type I-Line™/Mechanical Lug Country of Origin MX Currency USD Dimensions 5.39 in H x 1.06 in W x 3.5 in D Enclosure Type IP40/IK07 EU RoHS Indicator Y Frame B Frequency Rating 50/60 Gross Volume Per Pack 221.00 Gross Volume per Pack Metric 3621.53 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 7.1214 lb Gross Weight per Pack Metric 712.14 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200020 Height 5.0800 in Height [Metric] 5.0800 cm Item Group 01133 Length 33.0200 in Length [Metric] 33.0200 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442589873&lang=en-us Number Of Poles 1 Phase 1 Returnable N Temperature Rating -13 to 158 Trip Range 800 to 1200 Type Type BDA UNSPSC 39121601 UPC 11 78590102620 UPC 12 785901026204 Width 21.5900 in Width [Metric] 21.5900 cm Wire Size 14 to 2/0 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 80 A Interrupt Rating 18 Trip Type Thermal Magnetic Voltage Rating 480Y/277
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | BDA140803 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | BDA140803 |
| Color | Gray |
| Connection Type | I-Line™/Mechanical Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 5.39 in H x 1.06 in W x 3.5 in D |
| Enclosure Type | IP40/IK07 |
| EU RoHS Indicator | Y |
| Frame | B |
| Frequency Rating | 50/60 |
| Gross Volume Per Pack | 221.00 |
| Gross Volume per Pack Metric | 3621.53 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 7.1214 lb |
| Gross Weight per Pack Metric | 712.14 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 5.0800 in |
| Height [Metric] | 5.0800 cm |
| Item Group | 01133 |
| Length | 33.0200 in |
| Length [Metric] | 33.0200 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442589873&lang=en-us |
| Number Of Poles | 1 |
| Phase | 1 |
| Returnable | N |
| Temperature Rating | -13 to 158 |
| Trip Range | 800 to 1200 |
| Type | Type BDA |
| UNSPSC | 39121601 |
| UPC 11 | 78590102620 |
| UPC 12 | 785901026204 |
| Width | 21.5900 in |
| Width [Metric] | 21.5900 cm |
| Wire Size | 14 to 2/0 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 80 A |
| Interrupt Rating | 18 |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 480Y/277 |
