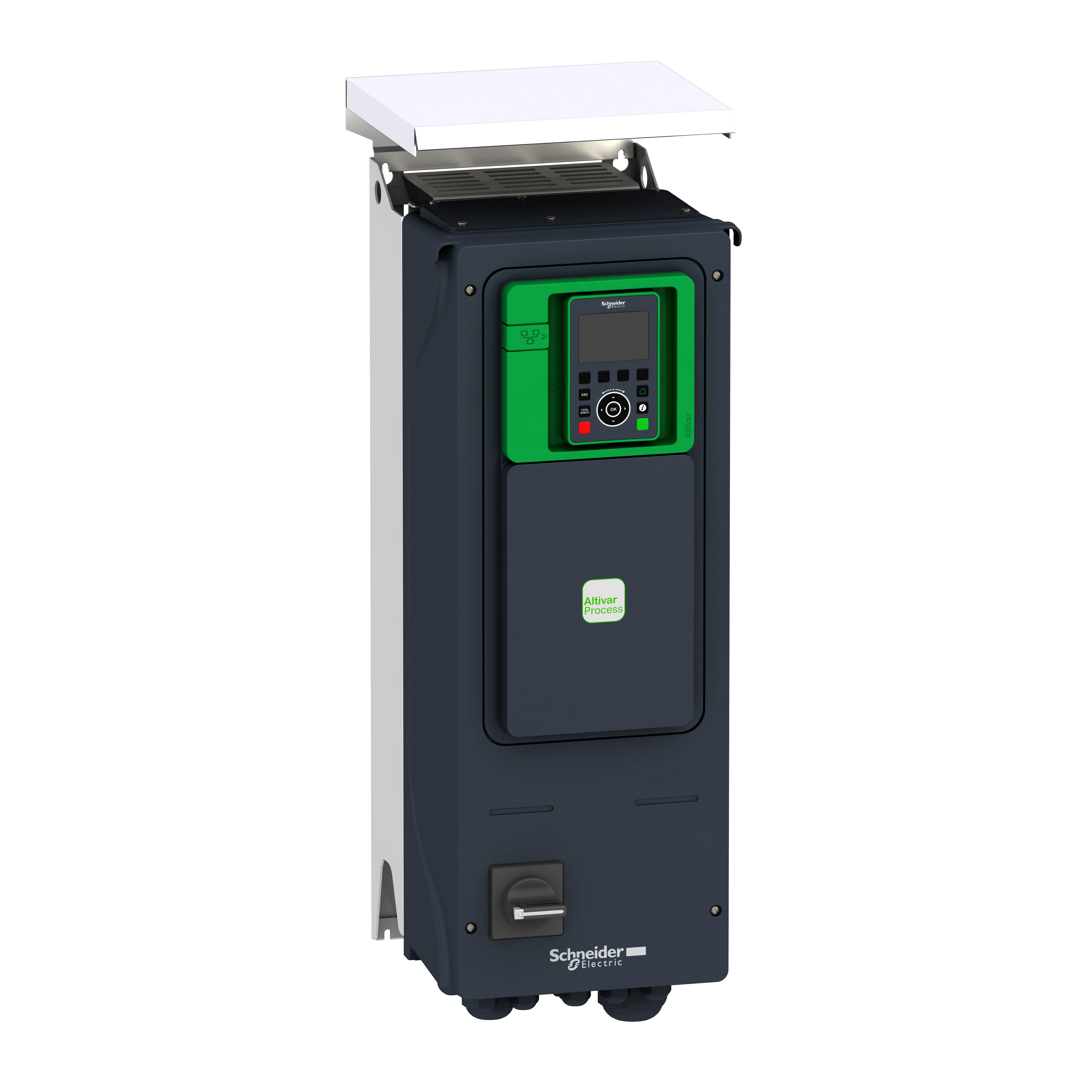

Schneider Electric ATV950U75N4EU Altivar™ 3-Phase Variable Speed Drive, 380 to 480 V, 13.8 A at 380 V/11.9 A at 480 V Normal Duty, 10.5 A at 380 V/9.2 A at 480 V Heavy Duty, 10 hp Normal Duty, 7-1/2 hp Heavy Duty, 10.39 in W x 12.99 in D
Schneider Electric ATV950U75N4EU Altivar™ 3-Phase Variable Speed Drive, 380 to 480 V, 13.8 A at 380 V/11.9 A at 480 V Normal Duty, 10.5 A at 380 V/9.2 A at 480 V Heavy Duty, 10 hp Normal Duty, 7-1/2 hp Heavy Duty, 10.39 in W x 12.99 in D
SKUPDW~12907025
MFGR #ATV950U75N4EU
$/ea
Schneider Electric Variable Speed Drive, 3-Phase, Series: Altivar™ ATV950, 380 to 480 V, 13.8 A at 380 V/11.9 A at 480 V Normal Duty, 10.5 A at 380 V/9.2 A at 480 V Heavy Duty, 10 hp Normal Duty, 7-1/2 hp Heavy Duty, 10.39 in Width, 12.99 in Depth, 26.69 in Height, IP55 Enclosure, Wall Mounting
Schneider Electric Variable Speed Drive, 3-Phase, Series: Altivar™ ATV950, 380 to 480 V, 13.8 A at 380 V/11.9 A at 480 V Normal Duty, 10.5 A at 380 V/9.2 A at 480 V Heavy Duty, 10 hp Normal Duty, 7-1/2 hp Heavy Duty, 10.39 in Width, 12.99 in Depth, 26.69 in Height, IP55 Enclosure, Wall Mounting
Alternate Catalog Number ATV950U75N4EU Application Industrial Applications ARRA Compliant N Buy American Compliant N Catalog Number ATV950U75N4EU Communication Modbus TCP;Modbus serial;EtherNet/IP;Ethernet;2-wire RS 485 Country of Origin CN Currency USD Current Rating 12.7 A 4 kHz heavy duty;16.5 A 4 kHz normal duty A Display Local diagnostic 3 LED mono/dual colour);embedded communication status 5 LED dual colour);communication module status 2 LED dual colour);presence of voltage 1 LED red) EU RoHS Indicator Y Gross Volume Per Pack 10497.38 Gross Volume per Pack Metric 172020.57 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.2100 lb Gross Weight per Pack Metric 21.00 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504404000 Height 54.0000 in Height [Metric] 54.0000 cm Input Voltage 380...480 V - 15...10 % Item Group 22277 Length 80.0000 in Length [Metric] 80.0000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=473954484&lang=en-us Mounting Wall Mount Returnable N Size 12.99 in Standard IP55 Type Variable speed drive;2 RJ45;1 RJ45 UNSPSC 39122001 Width [Metric] 39.2000 cm Brand Square D™ Manufacturer Schneider Electric Depth 12.9921 in Width 39.2000 in Industrial Applications Variable torque standard;constant torque standard;optimized torque mode;16 preset speeds;Control screw terminal 0.5...1.5 mm²;motor screw terminal 6...10 mm²;line side screw terminal 4...6 mm²;DC bus screw terminal 4...10 mm²;1;Thermal protection motor;safe torque off motor;motor phase break motor;thermal protection drive;safe torque off drive;overheating drive;overcurrent between output phases and earth drive;overload of output voltage drive;short-circuit protection drive;motor phase break drive;overvoltages on the DC bus drive;line supply overvoltage drive;line supply undervoltage drive;line supply phase loss drive;overspeed drive;break on the control circuit drive;External supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection;internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection;internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | ATV950U75N4EU |
| Application | Industrial Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | ATV950U75N4EU |
| Communication | Modbus TCP;Modbus serial;EtherNet/IP;Ethernet;2-wire RS 485 |
| Country of Origin | CN |
| Currency | USD |
| Current Rating | 12.7 A 4 kHz heavy duty;16.5 A 4 kHz normal duty A |
| Display | Local diagnostic 3 LED mono/dual colour);embedded communication status 5 LED dual colour);communication module status 2 LED dual colour);presence of voltage 1 LED red) |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 10497.38 |
| Gross Volume per Pack Metric | 172020.57 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.2100 lb |
| Gross Weight per Pack Metric | 21.00 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504404000 |
| Height | 54.0000 in |
| Height [Metric] | 54.0000 cm |
| Input Voltage | 380...480 V - 15...10 % |
| Item Group | 22277 |
| Length | 80.0000 in |
| Length [Metric] | 80.0000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=473954484&lang=en-us |
| Mounting | Wall Mount |
| Returnable | N |
| Size | 12.99 in |
| Standard | IP55 |
| Type | Variable speed drive;2 RJ45;1 RJ45 |
| UNSPSC | 39122001 |
| Width [Metric] | 39.2000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Depth | 12.9921 in |
| Width | 39.2000 in |
| Industrial Applications |
| Variable torque standard;constant torque standard;optimized torque mode;16 preset speeds;Control screw terminal 0.5...1.5 mm²;motor screw terminal 6...10 mm²;line side screw terminal 4...6 mm²;DC bus screw terminal 4...10 mm²;1;Thermal protection motor;safe torque off motor;motor phase break motor;thermal protection drive;safe torque off drive;overheating drive;overcurrent between output phases and earth drive;overload of output voltage drive;short-circuit protection drive;motor phase break drive;overvoltages on the DC bus drive;line supply overvoltage drive;line supply undervoltage drive;line supply phase loss drive;overspeed drive;break on the control circuit drive;External supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection;internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection;internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection |
